FO-EG8010H
Nuevo
ONT EG8010H, incorpora 1 puerto Ethernet autoadaptable GE/FE.
ONT DE VENTA EXCLUSIVA PARA OPERADORES. Al precio de la ONT se le añadirá un suplemento de 0,30€ por unidad en concepto de gastos de envío.
Referencia: FO-EG8010H
Advertencia: ¡Últimas unidades en stock!
Fecha de disponibilidad: 24/12/2019

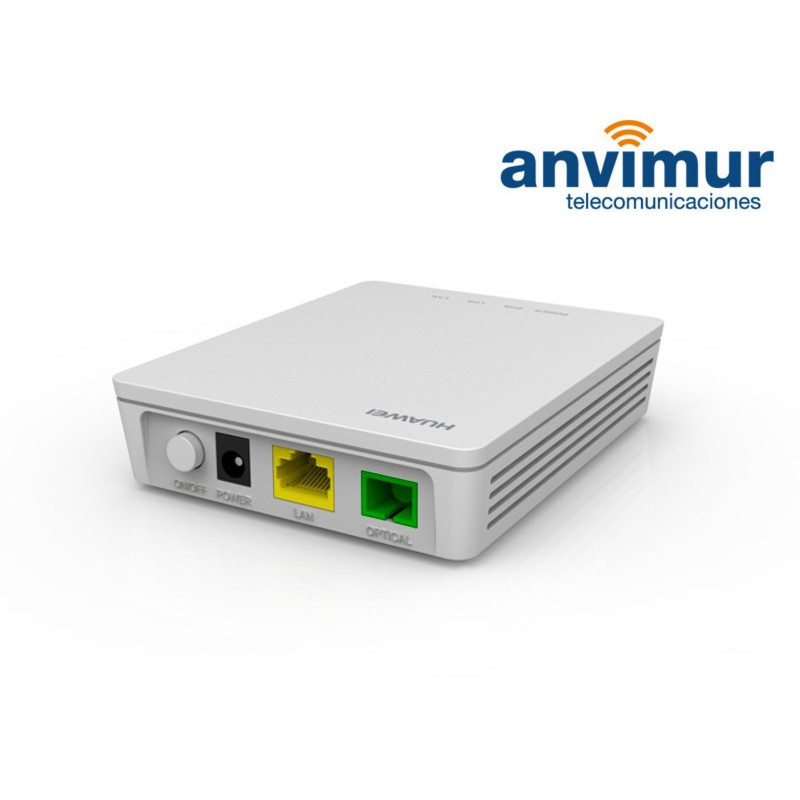

ONT Huawei EG8010H | 1GE
ONT EG8010H, incorpora 1 puerto Ethernet autoadaptable GE/FE.
ONT DE VENTA EXCLUSIVA PARA OPERADORES. Al precio de la ONT se le añadirá un suplemento de 0,30€ por unidad en concepto de gastos de envío.
Referencia: FO-EG8010H
Recipiente :
* Campos obligatorios
total Cancelar
GPON | Equipos ONT´s |
El Echo Life EG8010H es un terminal de red óptica (ONT) para interiores de la solución FTTH Huawei. Con el uso de la tecnología GPON, ofrece acceso para usuarios residenciales y pymes. El EG8010H incorpora un puerto Ethernet autoadaptable GE/FE.
Esta familia de ONTs, tiene una variedad de modelos con el fin de cubrir las necesidades del despliegue GPON y el Mercado de las telecomunicaciones.
Puertos LAN | 1 GE |
POTS (VoIP) | - |
USB | - |
CATV | - |
Wi-Fi | - |
Antenas | - |
PON | Conector SC |
*NOTA:
El precio de las ONTs no incluyen transporte, pero si lo desea podemos cargarlo en factura a 0,30€/unidad
Solicite presupuesto sin compromiso a nuestros comerciales: tienda@anvimur.com
Port/Button | Function |
OPTICAL | Indicates an optical port. The optical port is equipped with a rubber plug and is connected to an optic fiber for upstream transmission. The type of the optical connector connected to the OPTICAL port is SC/APC. |
LAN | Indicates auto-sensing 10/100/1000M Base-T Ethernet ports (RJ-45), used to connect to PCs or IP set-top boxes (STBs). |
POWER | Indicates the power port, used to connect to the power adapter or backup battery unit. |
ON/OFF | Indicates the power button. |
RESET | Indicates the reset button. Press the button for a short time to reset the device; press the button for a long time (longer than 10s) to restore the device to the default settings and reset the device. |
Parameter | Specifications |
Dimensions | 82 mm x 90 mm x 27 mm |
Weight | < 300 g |
Working environment | Operating temperature: 0°C to +40°C Environment humidity: 5% RH to 95% RH (non-condensing) Pressure environment: 86 kPa to 106 kPa Altitude: 2000 m |
Power Specifications | Power adapter input: 100 V AC to 240 V AC, 50 Hz to 60 Hz System power supply: 11 V DC to 14 V DC, 0.5 A |
Power consumption | Static power consumption: 2 W Maximum power consumption: 2.5 W |
ONT DE VENTA EXCLUSIVA PARA OPERADORES. Al precio de la ONT se le añadirá un suplemento de 0,30€ por unidad en concepto de gastos de envío.
