4 channels hibrid DVR (analog/HDCVI/IP), 720p

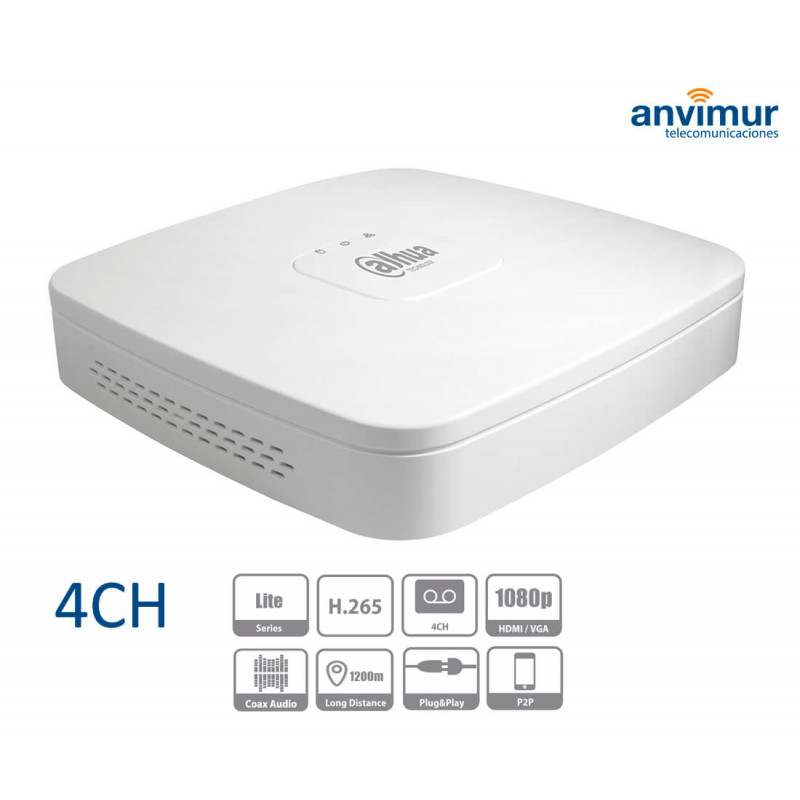

4 Channel DVR 5in1 - HDCVI/IP 1080P@12IPS 6MP

Reference: 018-XVR5104C-X1

Condition: New product

XVR pentabride 4 channel at 1080P@12IPS 6MP, support: HDCVI, HDTVI, AHD, CVBS and IP.

4 Channels, Recording at 4MP-N/1080P@12IPS, 1080N/720P@25IPS 6MP on IP channels. Audio and alarm transmission through BNC cable.

2x USB 2.0 and capacity for 1 internal HDD.

More details

DELIVERY IN ABOUT 3 DAYS

Send to a friend
Send to a friend

4 Channel DVR 5in1 - HDCVI/IP 1080P@12IPS 6MP
XVR pentabride 4 channel at 1080P@12IPS 6MP, support: HDCVI, HDTVI, AHD, CVBS and IP.

4 Channels, Recording at 4MP-N/1080P@12IPS, 1080N/720P@25IPS 6MP on IP channels. Audio and alarm transmission through BNC cable.

2x USB 2.0 and capacity for 1 internal HDD.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Data sheet

Video recorders	Híbridos

More info

4 Channel DVR 5in1 - HDCVI/IP 1080P@12IPS 6MP

Features:

XVR Generation pentabride, supports: HDCVI, HDTVI, AHD, CVBS and IP.
Smart Fan Design: The smart fan can automatically turn on or off depending on the temperature of the CPU. This function can effectively reduce the fan noise to provide better user experience.
Recording at 4MP-N/1080P@12IPS, 1080N/720P@25IPS 6MP on IP channels. Audio and alarm transmission through BNC cable
Bandwidth of 24Mbps.
Real-time synchronized playback of 1/4 channel.
Maximum capacity of up to 10TB with 1HDD.
Intelligent 3D control via mouse for HDCVI PTZ cameras
Backup to USB devices and by download from network.
Advanced video analysis functions: Tripwire, Intrusion, Abandoned/Missing, Face Detection.
P2P and DDNS servers owned by Dahua Exclusive and free DDNS protocol.
Connection to ARC via Direct Video. Certified: Bold Manitou, IBS SBN, SoftGuard and Software AG Avante.
Clients for iOS and Android smartphones: App gDMSSLite/Plus.
SmartPSS client (Windows / Mac OS X) up to 4 monitors. Video: management of 256 recorders and 2,000 cameras. With intelligent functions: fisheye dewarping, people counting, intelligent search, E-Map and E-PTZ.. Video door phones: 100 VTO and 50000. Access Control: 200 controllers and 1000 doors.

Specifications:

OPERATING SYSTEM	Embedded Linux
VIDEO INPUTS	4 Channels, BNC (Analog, HDCVI, HDTVI, AHD or IP), 2CH extra IP (up to 6MP)
AUDIO ENTRIES	1 RCA Channel
AUDIO OUTPUTS	1 RCA Channel
TWO-WAY AUDIO	Using the available RCA input and output
OUTPUT INTERFACES	1 HDMI, 1 VGA
SCREEN RULING	1920×1080, 1280×1024, 1280×720
SCREEN DIVISION	01/04/06
PRIVACY MASKS	4 Zones per camera
VIDEO/AUDIO COMPRESSION	H.265+/H.265/H.264+/H.264 / AAC (first channel only), G.711A, G.711U, PCM
MAIN STREAM RESOLUTION	4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
EXTRA STREAM RESOLUTION	D1, CIF
RECORDING RATE	4MP-N/1080P@12IPS, 1080N/720P@25IPS (IP 6MP up to 24Mbps)
ALARM INPUTS	Not available
RELAY OUTPUT	Not available
SEARCH MODES	Date/Time, Alarm, MD and Exact Search
NETWORK CONNECTION	Ethernet RJ45 (100M)
DDNS	DahuaDDNS and P2P
HARD DISK	1 HDD (Max 10TB/HDD)
USB	2 x USB 2.0
TELEMETRY	Via HDCVI (PTZ Domes and OSD Cameras)
POWER / CONSUMPTION	12Vdc@2A / 10W (No HDD)
DIMENSIONS	205 u00d7 211 u00d7 45mm (Smart 1U)
WEIGHT	0.50Kg (Without HDD)
