OPTRAL-LSZH-2F – CAS FTTH – Kevlar + LSZH cover (1 tubes x 2 fibers)

FO-CAS115-2FO

New product

Drop cable for FTTH, indoor / outdoor, LSZH cover and aramid (Kevlar), ultra-flexible, low diameter and fireproof.

2 fiber cable (1 tubes x 2 fiber), G657.A2 fiber type, Ø 3.6mm, tensile strength 650 Newtons

external tube Ivory color

Small and light 500 meter reel, very easy to carry

More details

159,00 €

Add to wishlist

Data sheet

FTTx Single Mode Fiber Optic CableMonotube Fiber Cable

More info

Anvimur Telecomunicaciones only supplies optical fibers manufactured in Europe, to offer its customers the highest quality assurance.

Type of installation

  • Direct connection in FTTH
  • Recommended for use in FTTH supply and distribution network for indoor vertical distribution, in wall ducts and communication areas.
  • indoor use
  • Moisture protected, high flexibility, flame retardant, low smoke and halogen free

Sheathing

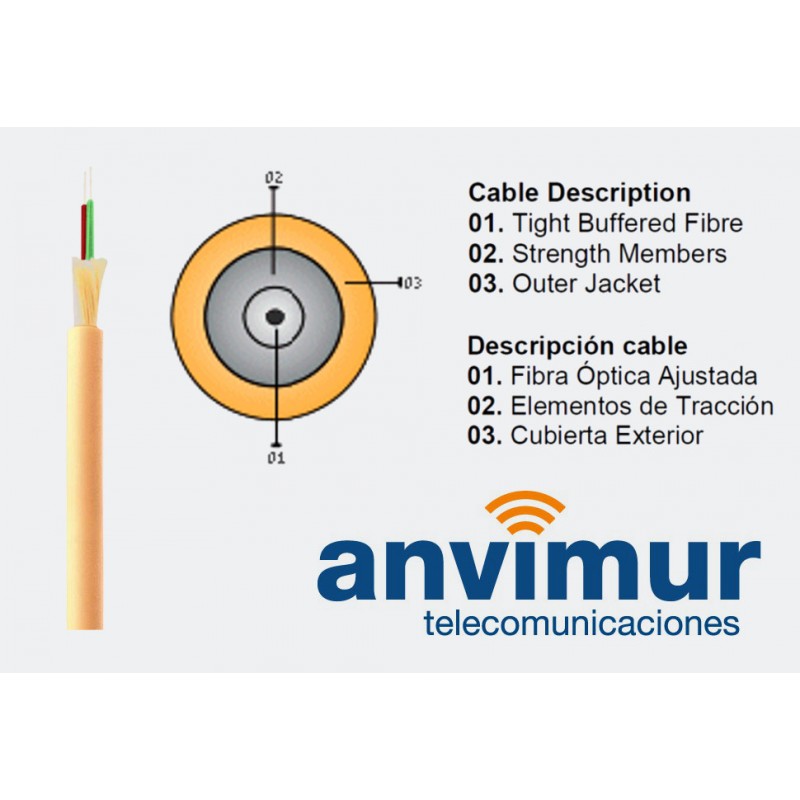

  • LSZH cover (Low Smoke Zero Halogen) with aramid (Kevlar)
  • easy strip rubber tubes
  • Ultraflexible cable with low diameter. Easy handling and slitting , based on micro modules without gel. It supports low radius bending. Flame retardant materials that slow flame spread.

Total electromagnetic compatibility

  • The use of fully dielectric materials, allows electromagnetic compatibility with existing coaxial and power cables.

Integrability

  • This solution can integrate seamlessly into a complete deployment of FTTH network and can be complemented with drop cables, Splitters, loose tube cable for trunk and access network, termination boxes, splice closures and patchcords.

Advantages

  • Flexible / Dielectric / Direct connectorization.

NOTE: Different fiber types available upon request settings. Fiber according to the ITU-T recommendations. WB dry core and SZ wiring.

TECHNICAL SPECIFICATIONS

Dimensions and weights

TypeO.F per cableNum. tubes ActiveNum. tubes PasiveNum. of fibres per tubeNominal Diameter (mm)Nominal weight (Kg/Km)Tensile strength(N)Fibre type
S11521023.614650G657.A2

Mechanical and Environmental tests according to IEC 60794-1-21 and IEC 60794-1-22.
Fibres colour code : 2 FO: Red – Green.

This fiber is supplied in a 500m reel whose dimensions and weight make it very easy to transport:

     Dimensions: 35x35x35 cm
     Weight: 8 Kg

* If you need other configurations, please contact our sales department
