Sumitomo T400s active clad alignment handheld fusion splicer KIT

SEL’s new T-400S Active Clad Handheld Fusion Splicer features a high resolution display, fiber end face evaluation and post joining loss estimation providing assurance of a successful fiber termination. The handheld fusion splicer removes the technician judgement call required on all other forms of termination by using advanced optical technology, high precision motors and the latest embedded software to completely automate the installation of an optical connector and all at a cost similar to low tech, tool centric connector systems.

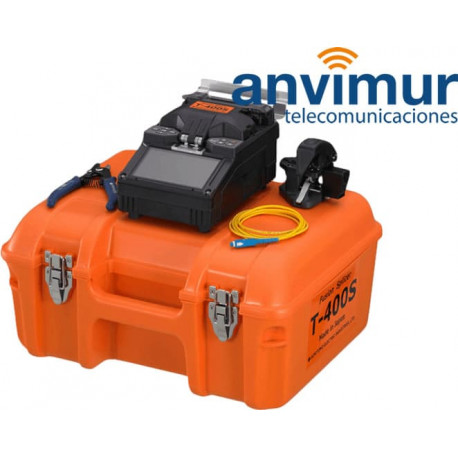

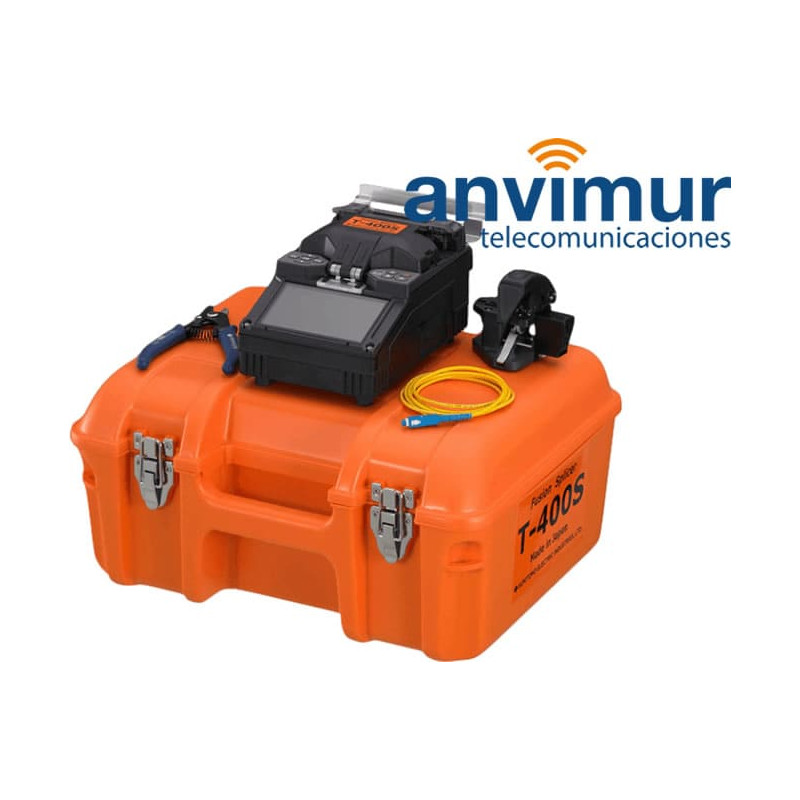

Kit includes as standard::

• 1x T-400S Splicer
• 1x Hard Case CC-15
• 1x ADC-15 AC/DC Adapter
• 1x Power cable PC-AC3-2P
• 1x Lithium-ion battery BU-15
• 1x Shoulder strap
• 1x Work tray
• 1x Screw for work tray
• 1x FCT-15 Splice Cooling Tray
• 1x Cutter FC-5S

Maintenance, calibration and spare parts service in Spain

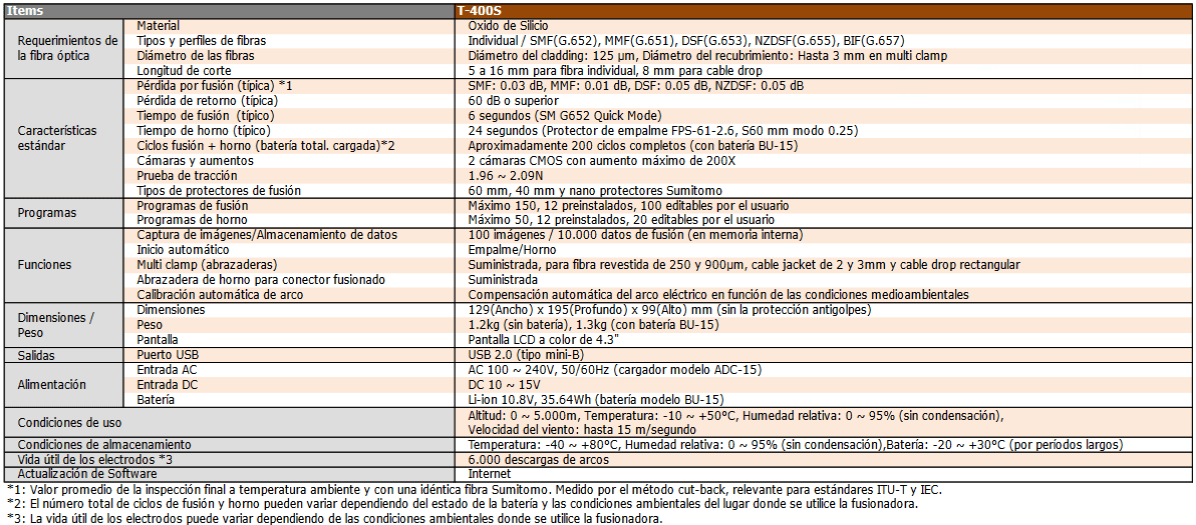

Especificaciones:

Video:
