GI - FibreIRS®-ODU32 KIT - Wholeband LNB + optical converter

F101720

New product

Wholeband LNB + optical converter to distribute satellite signal + DTT via fiber to up to 64 points with a reach of 10 Km

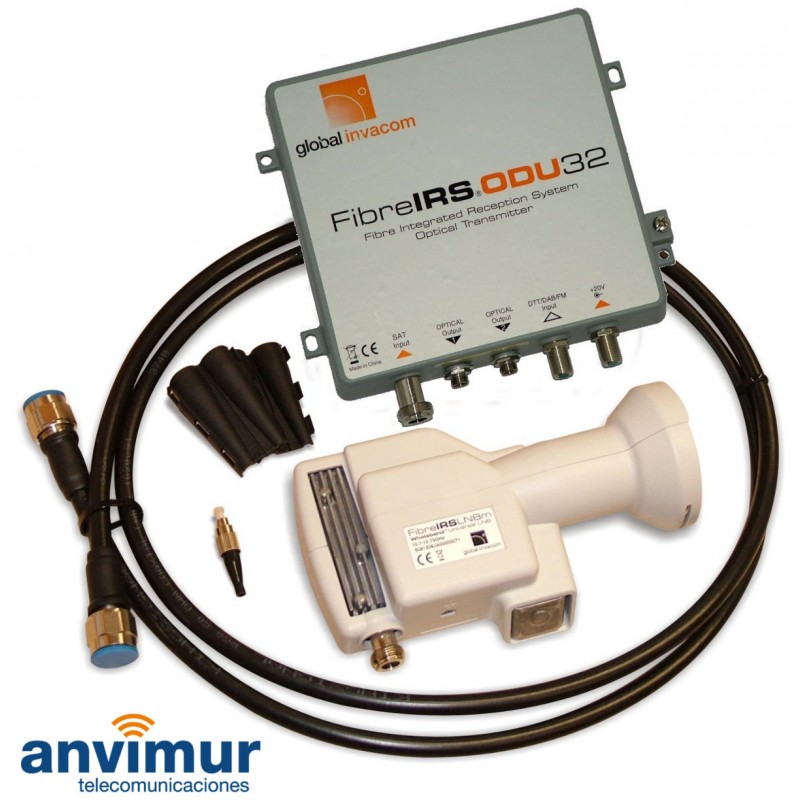

Kit contains, Wholeband LNB, FibreIRS® ODU32, 2m HF Interconnect cable, PSU, weather proof boots for the FC/PC connections & FC/PC Terminator if only one output is used.

More details

760,00 €

Add to wishlist

Data sheet

LNB and Waves GuideOffset LNB

More info

  • Combines Wholeband LNB & DTT/DAB/FM signals
  • Distributes signals to 64 outlets via two 32 way PONs
  • Fully weatherproof (IP65)
  • PSU, mast strap & mounting bracket included
  • 10km reach*

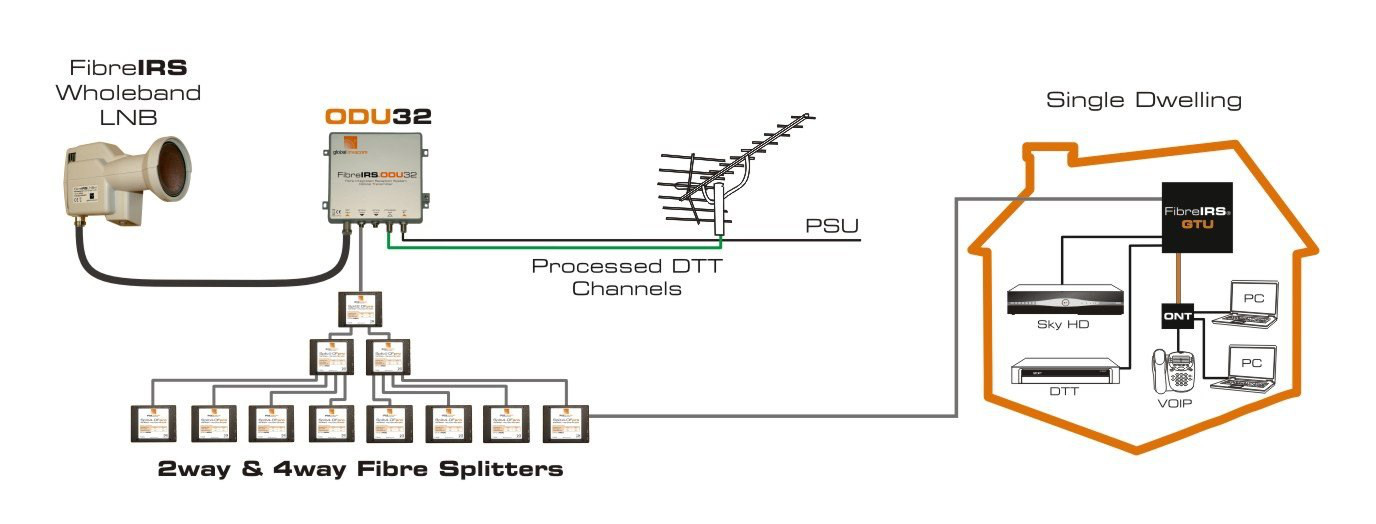

Fully weatherproof, the ODU32 is designed for mounting at the antenna location. It accepts and combines signals from the Wholeband LNB and digital terrestrial antenna (DTT/DAB/FM) which then modulates a laser inside the ODU32. Two optical outputs (FC/PC) are provided for distribution through a Passive Optical Network (PON) of FibreIRS Optical Splitters. Each output of the ODU32 can feed a PON of 32 points or with reduced splits support a reach of 10km. Different FibreIRS GTU’s can be connected at any point (Quad, Quatro & DTT/DAB/FM available).


* Subject to PON losses
