HD modulator HDMI-DVB-T 8202

140-8202

New product

Convert your local HDMI signal into an RF signal, ready for distribution over your coaxial cable network as if it were an additional DTT channel.

Modulation of multiformat output (DVB-T, DVB-C, DTMB or ATSC)

Very user-friendly menu structure thanks to the Johansson rotary knob.

A modulator with professional features at a very economic price.

More details

Add to wishlist

Data sheet

Reception and ModulationModulator

More info

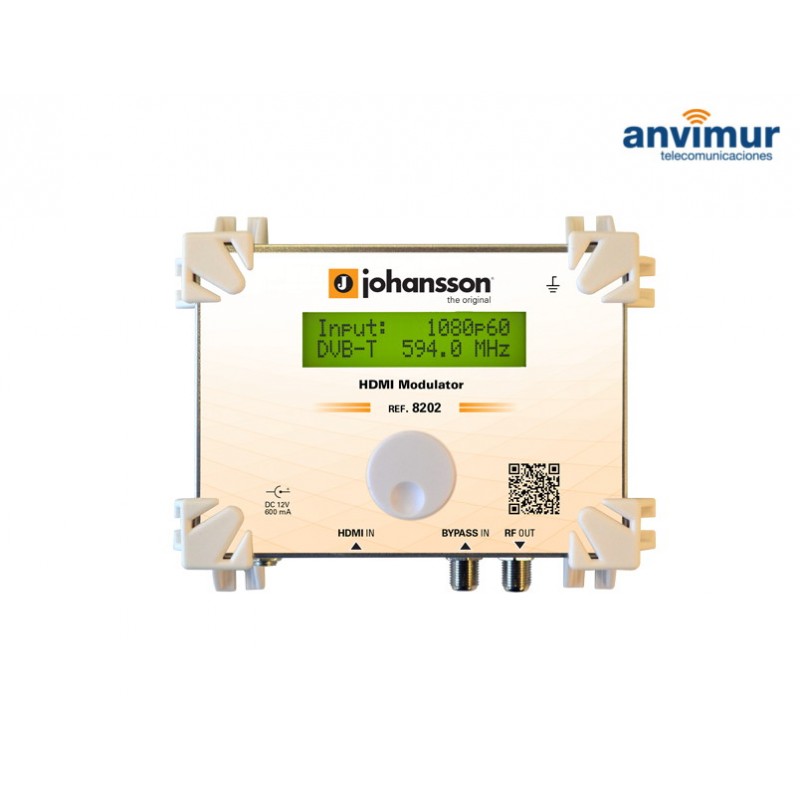

The 8202 modulator allows to distribute the signal of an HDMI source by all the television socket as if it were an additional channel of DTT.

This unit scans the image at 1080p, compresses it into MPEG1 and modulates it into DVB-T, DVB-C, DTMB or ATSC so that the signal can be distributed over the coaxial cable to all the footage of the housing in Full HD.

The HDMI 8202 modulator has a very user-friendly menu structure thanks to the Johansson rotary knob.

This modulator is a modulator with professional characteristics at a very economic price.

  • 1 HDMI input, capable of receiving all resolutions up to 1080p60.
  • 1 RF input, to by-pass terrestrial or cable signals.
  • 1 RF output: DVB-T, DVB-C, DMB-T and ATSC
  • Perfect picture thanks to a MER comparable to other premium headend equipment.
  • Generates a channel with Mer of 38 dBs
  • It has an output level of 100 dbuV so most cases do not need amplifier.
  • Easy to use menu structure, in combination with the Johansson rotary/push button.
  • Optimized for cascading multiple modulators on your coaxial network.
  • Smallest housing in its range.
  • The most stable HDMI modulator on the market.

Specifications

HDMI INPUT
VIDEO RESOLUTION-576i up to 1080p
VIDEO ENCODING-H264/AVC
AUDIO ENCODING-MPEG1 Layer II / AAC
CONNECTOR TYPE-HDMI Type A
RF INPUT
FREQUENCYMHz5 - 1218
LOSS TO RF OUTPUTdB2
RF OUTPUT (=RF INPUT SIGNAL + HDMI MODULATED TRANSPONDER)
MODULATED CHANNEL FREQUENCYMHz174 - 1218
OUTPUT LEVELdBµV59 - 99 (adjustable)
MERdBTyp. 38
OUTPUT SETTINGS
OUTPUT TYPE-DVB-TDVB-CATSC-TATSC-CDTMB
BITRATEMbps          2 - 232 - 152 - 23
CHANNEL BANDWIDTHMHz6,7 or 82 to 8 666
CONSTELLATION-

COFDM

(QPSK/16QAM/64QAM)

16QAM

32QAM

64QAM

128QAM

256QAM

8VSB

64QAM

256QAM

QPSK

QAM-4NR

16QAM

32QAM

64QAM

OTHER SETTINGS-

Code rate

Guard Interval

2K-8K

---

Interleave Code rate

2K-8K

Sync frame PN phase

CONFIGURATION
BASIC CONFIGURATION-Country | Output Type | Output Frequency | Output Level | LCN | Channel Name
ADVANCED CONFIGURATION-RF | Video & Audio | SID | PMT, VPID, APID | NIT, ONID | PDS | TS ID
POWER & DIMENSIONS, ETC...
POWER-Input Voltage: 12 VDC | Consumption: 5 W Typ. (6 W max.) | Jack Ø 2.1 mm
DIMENSIONS, WEIGHT, EAN CODE-155 x 120 x 60 mm. | 0.6 kg. | 2082020000015
ACCESSORIES-12V power adapter
