FO-SFPC+
Nuevo
Módulo óptico SFP tipo C+ 1 fibra bidireccional, 1490/1310 nm 2,49/1,24Gb/S - 20 km
Referencia: FO-SFPC+
Advertencia: ¡Últimas unidades en stock!
Fecha de disponibilidad:

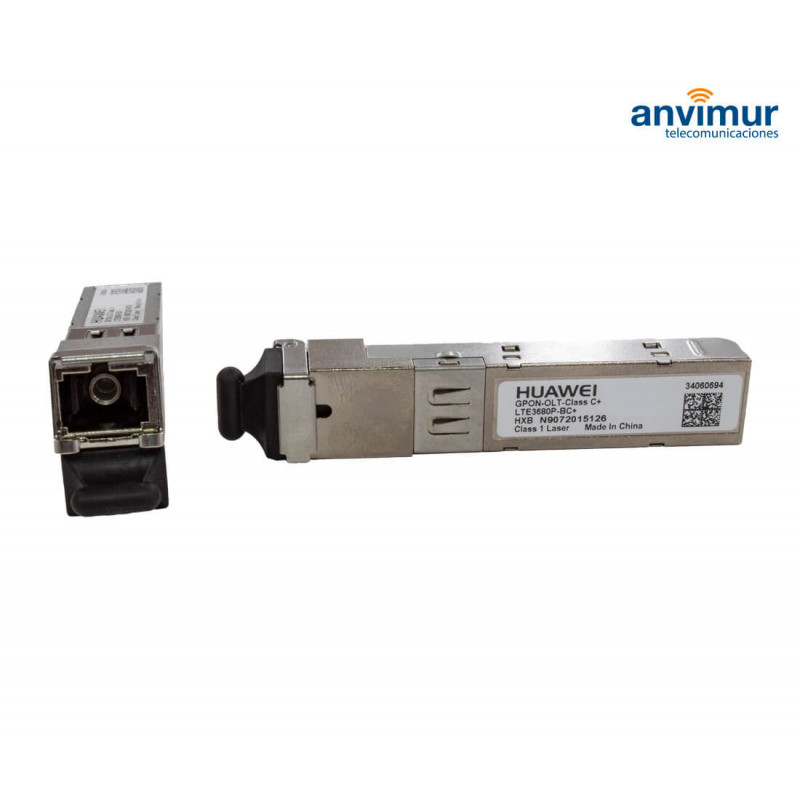

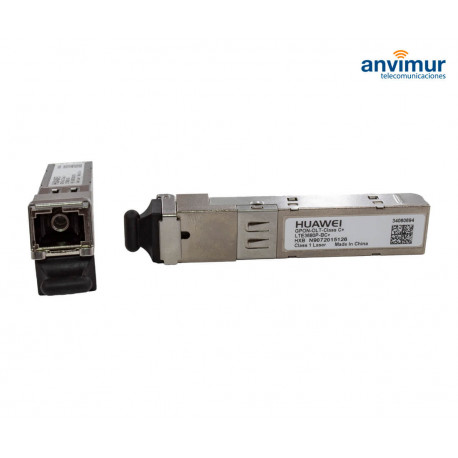

Módulo Fibra SFP Huawei GPON OLT CLASS C+
Módulo óptico SFP tipo C+ 1 fibra bidireccional, 1490/1310 nm 2,49/1,24Gb/S - 20 km
Referencia: FO-SFPC+
Recipiente :
* Campos obligatorios
total Cancelar
GPON | Complementos OLT´s |
Type | One-fiber bidirectional optical module, class C+ |
No. | 2 |
Operating Wevelength | Tx: 1490 nm Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Minimum Output Optical Power | 3 dBm |
Maximum Output Optical Power | 7 dBm |
Maximum Receiver Sensitivity | -32 dBm |
Optical Connector Type | SC |
Optical Fiber Type | Single-mode |
Overload Optical Power | -12 dBm |
Extinction Ratio | 8.2 dB |
