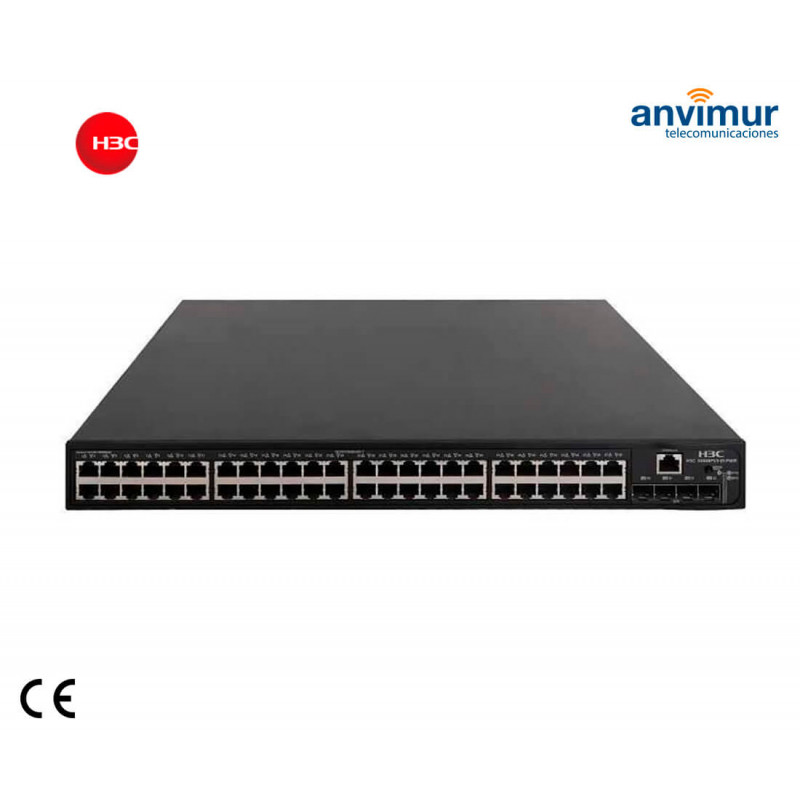

Switch Gestionable 48 Puertos Giga-T con 4x SFP (AC) | H3C
H3C-5048PV3EI
Nuevo
H3C S5048PV3-EI L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 4*1000BASE-X Ports,(AC).
Referencia: H3C-5048PV3EI
Producto próximamente disponible
Ficha técnica
| Redes y conexiones inalámbricas | Switch |
Más información
Switch Gestionable 48 Puertos Giga-T con 4x SFP (AC) 5048PV3EI | H3C
S5048PV3-EI L2 Ethernet Switch with 48*10/100/1000 Base-T Ports and 4*1000Base-X SFP port (AC).
H3C S5000V3-EI es el último desarrollo de un Switch Ethernet administrado con velocidad Gigabit que es especialmente para el mercado de PYMES (pequeñas empresas). Además del acceso de alto rendimiento, también ofrece un abundante control de políticas de acceso de seguridad y una mejor capacidad de administración y mantenimiento de la red. Esto lo hace ideal para la construcción de redes en industrias como el gobierno, pequeñas y medianas empresas, escuelas y hoteles.
Serie Fabricante H3C.
Serie Profesional Switches Gestionables para operadores e integradores, Serie Gigabit.
Ideales para instalaciones profesionales de centros CPDs, entornos de hospitality, gestión de puntos de acceso.
Están destinados para entornos de trafico de caudal masivo con necesidad de una gestión profesional.
* Incluidas todas las licencias de software de serie.
Especificaciones Serie S5000V3-EI
| Features | S5016PV3-EI | S5024PV3-EI | S5048PV3-EI | S5024PV3-EI-PWR | S5024PV3-EI-HPWR | S5048PV3-EI-PWR |
| Switching capacity | 40Gbps | 56Gbps | 104Gbps | 56Gbps | 104Gbps | |
| Packet forwarding rate | 30Mpps | 42Mpps | 78Mpps | 42Mpps | 78Mpps | |
| Management port | 1 console port | |||||
| 10/100/1000 Base-T port | 16 | 24 | 48 | 24 | 48 | |
| SFP port | 4 | 4 | 4 | 4 | 4 | |
| Copper port features | Half-duplex, full-duplex, auto-negotiation MDI/MDI-X | |||||
| Ethernet functions | LLDP Static MAC configuration MAC address learning limit (up to 8K) Port mirror and flow mirror Link aggregation (up to 8 ports per group) Port isolation STP/RSTP/MSTP IEEE 802.3ad（Dynamic link aggregation）, static port aggregation | |||||
| VLAN | 802.1Q ( up to 4K VLAN) Protocol-based VLAN IP subnet based VLAN MAC based VLAN GUEST VLAN | |||||
| IP routing | Static routing | |||||
| DHCP | DHCP Relay DHCP Client DHCP Snooping DHCP Snooping Option82 | |||||
| Broadcast | IGMP V1/V2/V3 Snooping | |||||
| QoS | Diff-Serv QoS WRR/HQ-WRR 802.1p, DSCP priority mapping Directional port speed limit | |||||
| ACL | ACL on layer 2, layer 3 and layer 4 ACL on IPv4, IPv6 VLAN ACL | |||||
| IPv6 | IPv6 static routing, dual-stack DHCPv6 Client, DHCPv6 Snooping ND, PMTU IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution | |||||
| Reliability | Hot patch, in-service patch upgrade | |||||
| Security | Hierarchical user management and password protection SSHv2 SSL Specific IP address based FTP logging and password mechanism Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet Prevent Dos attack IP＋MAC+PORT+VLAN binding IEEE 802.1x SAVI source address validity authentication Radius, HWTACACS SNMPv3 Broadcast suppression Prevent CPU attack | |||||
| System management | Console/AUX Modem/Telnet/SSH2.0/CLI Loading and upgrading through FTP/TFTP/Xmodem/SFTP SNMP V1/V2c/V3 NTP System log Cluster management | |||||
| Environment temperature | Operating temperature：-5℃~45℃ Storage temperature：-40℃~70℃ | |||||
| Environment humidity | Operating humidity：5%~95% , non-condensing Storage humidity：5%~95% , non-condensing | |||||
| Environment protection | China RoHs, EEE | |||||
| Power consumption | ≤19W | ≤23W | ≤41W | ≤230W | AC≤446W DC≤790W | AC≤467W DC≤807W |
| PoE+ | - | - | - | 185W | AC 370W DC 740W | AC 370W DC 740W |
| Weight | ≤2kg | <2.5kg | <3.5kg | ≤4.5kg | ≤6kg | ≤6kg |
| Input voltage range | AC: 100V～240V AC，50/60Hz； DC: 220V | |||||
| Dimensions (W × D x H) | 330x230x43.6 mm | 440x160x43.6 mm | 440x230x43.6 mm | 440x260x43.6 mm | 440x400x43.6 mm | |
