S5735-L24P4X, Switch Gestionable 24 Puertos Giga-T con 4x10GE puertos SFP+, PoE+ | Huawei

HUA-S5735-L24P4X-A1

Nuevo

S5735-L24P4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+ 380W, AC power), Capacidad Conmutación 336Gbps, Instalación Gestionable L2 / Sobremesa / rack 19” 1U, 802.3af/at, Alimentación AC 100-240V 50/60Hz, Dimensiones: 442×220×43.6mm



Referencia: HUA-S5735-L24P4X-A1

Más detalles

Ficha técnica

Redes y conexiones inalámbricasSwitch

Más información

S5735-L24P4S, Switch Gestionable 24 Puertos Giga-T con 4xGE puertos SFP, PoE+ | Huawei

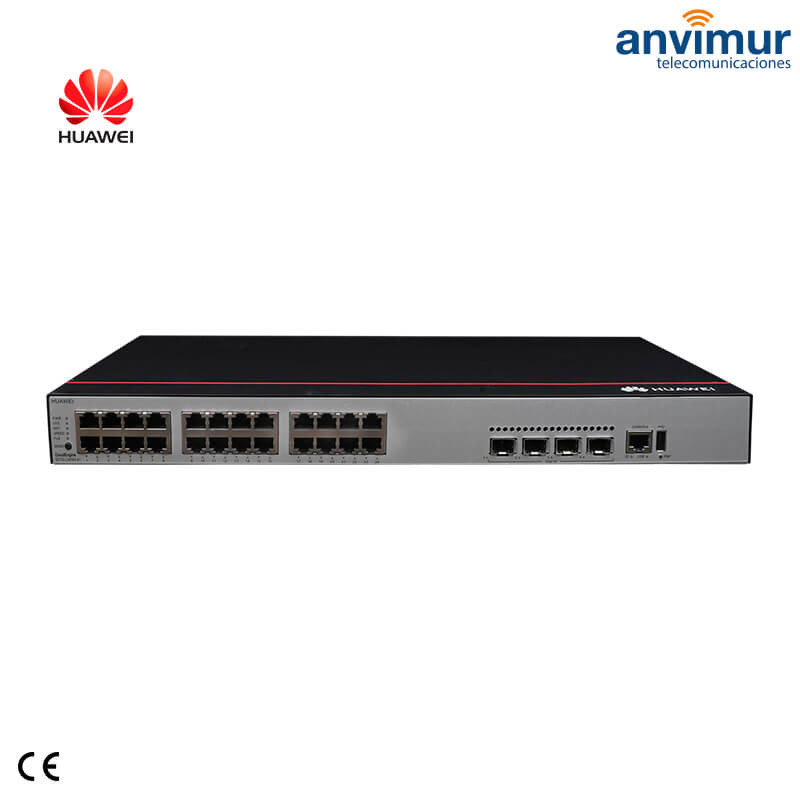

Huawei Switch S5735-L24P4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)

Serie Fabricante Huawei.

Serie Profesional Switches Gestionables para operadores e integradores, Serie 10 Gigabit.

Ideales para instalaciones profesionales de centros CPDs, entornos de hospitality, gestión de puntos de acceso.
Están destinados para entornos de trafico de caudal masivo con necesidad de una gestión profesional.

*Solicite cotización a tecnico@anvimur.com

Características

  • Sistema de alimentación: El conmutador tiene un módulo de alimentación de AC integrado y no admite módulos de alimentación enchufables. El módulo de alimentación integrado puede proporcionar 380 W de potencia PoE, lo que garantiza una potencia PoE completa en 24 puertos de conformidad con 802.3af o en 12 puertos de conformidad con 802.3at.
  • Sistema de disipación del calor: El conmutador dispone de dos ventiladores integrados para la refrigeración por aire forzado. El aire entra por el lado izquierdo y el panel frontal, y sale por el lado derecho.

Especificaciones

ItemSpecification
Dimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]1 U
Weight without packaging [kg(lb)]2.96 kg (6.53 lb)
Weight with packaging [kg(lb)]3.93 kg (8.66 lb)
Typical power consumption [W]42.4 W
Typical heat dissipation [BTU/hour]144.67 BTU/hour
Maximum power consumption [W]Not providing the PoE function: 53.8 W
100% PoE loads: 433.8 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]Not providing the PoE function: 183.57
100% PoE loads: 1480.17
MTBF [year]52.74 year
MTTR [hour]2 hour
Availability>0.99999
Noise at normal temperature (acoustic pressure) [dB(A)]38.2 dB(A)
Number of card slots0
Number of power slots0
Number of fans modules2
Redundant power supplyNot supported
Long-term operating temperature [°C(°F)]-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)]-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]0-5000 m (0-16404 ft.)
Power supply modeAC built-in
Rated input voltage [V]AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Input voltage range [V]AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]6 A
Memory512 MB
Flash memory512 MB
Console portRJ45
Eth Management portNot supported
USBSupported
RTCNot supported
RPS inputNot supported
Service port surge protection [kV]98011318:
Common mode: ±7 kV
98011318-001:
Common mode: ±2 kV
Power supply surge protection [kV]±6 kV in differential mode, ±6 kV in common mode
Types of fansBuilt-in
Heat dissipation modeHeat dissipation with fan, intelligent fan speed adjustment
Airflow directionAir intake from left and front, air exhaustion from right
PoESupported
CertificationEMC certification
Safety certification
Manufacturing certification

Más información Huawei S5735-L24P4X, aquí.
