CE6863E-48S6CQ, Switch Data Center 48*25GE SFP28, 6*100GE QSFP28, 2*AC | Huawei

HUA-CE6863E-48S6CQ

Nuevo

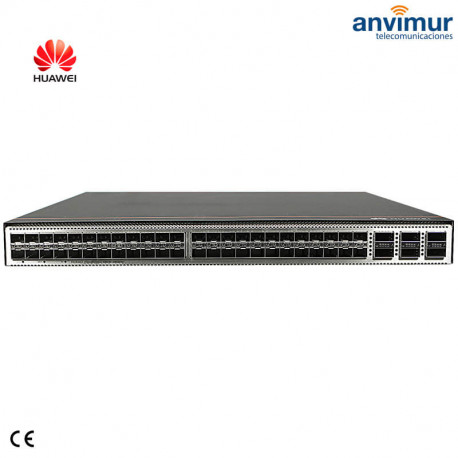

Switch CloudEngine CE6863E-48S6CQ (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)



Referencia: HUA-CE6863E-48S6CQ

Más detalles

Añadir a la lista de deseos

Ficha técnica

Redes y conexiones inalámbricasSwitch

Más información

CE6863E-48S6CQ, Switch Data Center 48*25GE SFP28, 6*100GE QSFP28, 2*AC | Huawei

Los conmutadores CloudEngine de la serie 6800, que ofrecen alto rendimiento, alta densidad de puertos y baja latencia, permiten a las empresas y a los operadores crear redes de centros de datos orientadas a la nube. La serie presenta un diseño de hardware avanzado combinado con puertos de acceso de 10 GE, 25 GE o 50 GE, y puertos de enlace ascendente de 40 GE, 100 GE o 200 GE. Las funciones avanzadas para centros de datos, las tecnologías de apilamiento de alto rendimiento y las capacidades de flujo de aire flexible completan la serie. CloudEngine 6800 es adecuado tanto para las capas de núcleo como de agregación, y es totalmente compatible con los conmutadores de las series CloudEngine 16800 y 12800, lo que permite a las empresas construir redes escalables, simplificadas, abiertas y seguras.

*Solicite cotización a tecnico@anvimur.com

CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)

Descripción Hardware CE6863E-48S6CQ, aquí.

Más información Huawei CE6863E-48S6CQ, aquí.

Especificaciones

ItemSpecification
Dimensions with packaging (H x W x D) [mm (in.)]175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)]5.7 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Installation TypeCabinet Installation
CPU4-core, 1.4GHZ
MemoryDRAM: 4 GB
NOR Flash64 MB
NAND Flash4 GB
USBSupported
Power supply modeAC
DC
HVDC
Console portRJ45
Downlink Service interface48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
Uplink Service interface6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function25GE optical ports, and 100GE optical ports
RTCSupported
Typical power consumption [W]226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
261 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
891 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]167 W
Static heat dissipation [BTU/hour]570 BTU/hour
Maximum power consumption [W]384 W
Maximum heat dissipation1310
Number of power modules2
Redundant power supply1+1 backup
Rated input voltage [V]600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
1000 W DC power module: –48 V DC to –60 V DC
1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
1000 W DC power module: –38.4 V DC to –72 V DC
1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC)
1000 W DC power module: 30 A (–48 V DC to –60 V DC)
1200 W high-voltage DC power module: 8 A
Rated output power [W]600 W AC&240 V DC power module: 600 W
1000 W DC power module: 1000 W
1200 W high-voltage DC power module: 1200 W
Certification· Complies with safety standards.
· Complies with EMC standards.
· Complies with environmental protection standards.
Power supply surge protection [kV]AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fansPluggable
Number of fans4
Redundant fansThe device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation modeAir cooling
Airflow directionFront-to-back or back-to-front, depending on the fan modules and power modules.
Availability0.9999962836
MTBF [year]47.81 year
MTTR [hour]1.95 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]Front-to-back airflow: < 58 dB(A)
Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]Front-to-back airflow: < 75 dB(A)
Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C (°F)]-40°C to +70°C (-40°F to +158°F)
