New

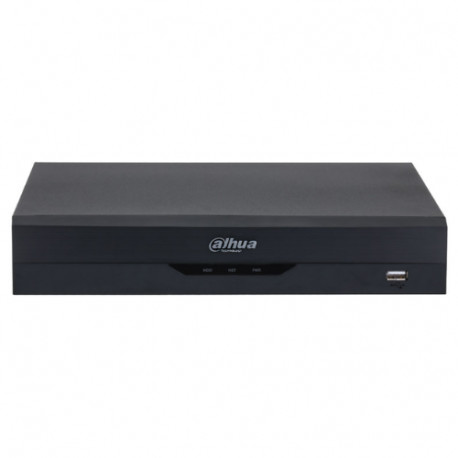

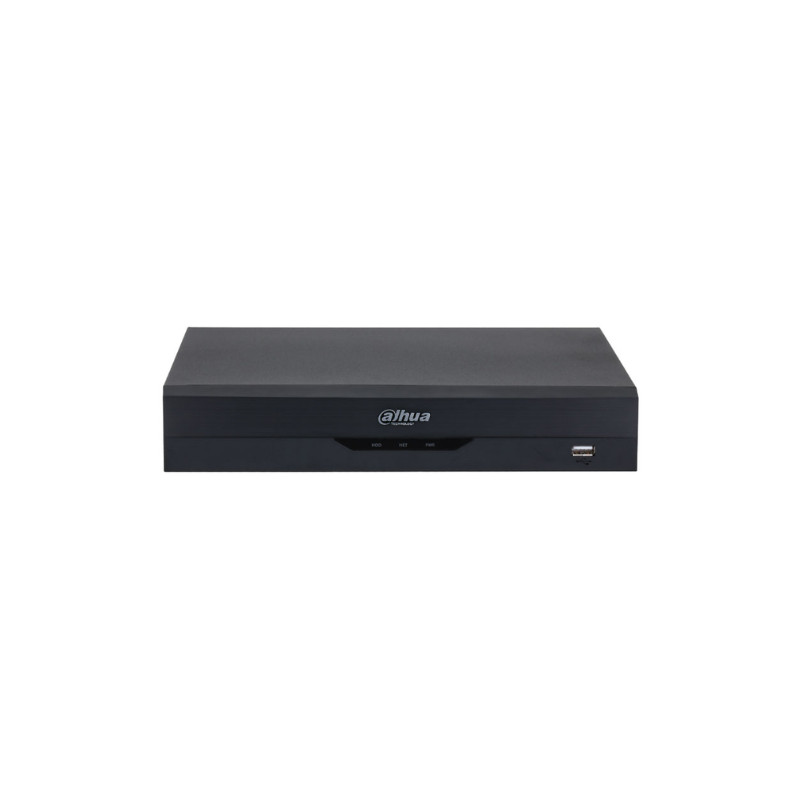

XVR5116H-4KL-I3-V2 – 5-in-1 XVR, 16-Channel 4K
018-XVR5116H-4KL-I3-V2
New product
Dahua XVR5116H-4KL-I3 5-in-1 16-Channel Recorder
Reference: 018-XVR5116H-4KL-I3-V2
This product is no longer in stock
Data sheet
| Video recorders | IP |
More info
16-Channel 4K/8MP XVR 5-in-1 Recorder with 1 HDMI, 1 HDD, AI
- Dual-stream video compression: H.265+/H.265.
- Supports full-channel AI encoding.
- Supports video inputs: HDCVI/AHD/TVI/CVBS/IP.
- Up to 32 IP camera channels, each up to 8 MP; maximum incoming bandwidth of 128 Mbps.
- Video transmission of up to 8 analog channels with Perimeter Protection.
- Video transmission of up to 16 analog channels with SMD Plus.
- Video transmission of up to 2 analog channels with human facial recognition.
- IoT and POS functionality support.
| Parameter | Value |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Integrated Linux |
| Operation Interface | Web; Local GUI |
| Perimeter Protection (AI) | Advanced Mode: 2 channels, 10 IVS rules per channel General Mode: 8 channels, 10 IVS rules per channel |
| Face Detection Attributes | Gender; age group; glasses; expression; mask; beard |
| AI Face Detection Performance | 2 channels (up to 12 images/sec per channel) |
| Face Database Capacity | Up to 10 databases, 20,000 images; with associated data (name, gender, date of birth, address, ID type/number, country/region, status) |
| AI Facial Recognition Performance | 2 channels |
| SMD Plus | 16 channels, human/vehicle filtering, reduced false alarms |
| Analog Camera Inputs | 16 BNC ports, HDCVI/AHD/TVI/CVBS (auto-detection) |
| Camera Input Resolution | CVI: 4K@25/30fps, 6MP@20fps, 5MP@20/25fps, 4MP@25/30fps, 1080P@25/30fps, 720P@25/30/50/60fps TVI: 4K@15fps, 5MP@20fps, 4MP@25/30fps, 3MP@25/30fps, 1080P@25/30fps, 720P@25/30fps AHD: 4K@15fps, 5MP@20fps, 4MP@25/30fps, 3MP@25/30fps, 1080P@25/30fps, 720P@25/30fps |
| IP Camera Input | Up to 32 channels; 16 default + 16 additional (analog-to-IP conversion) Bandwidth: 128 Mbps (incoming, recording, outgoing) Adding more IP channels disables AI (IVS, SMD, FACE) |
| Encoding Capability | Main: 4K (1–7fps), 6MP (1–10fps), 5MP (1–12fps), 4K-N/4MP/3MP (1–15fps), 4M-N/1080P/720P/960H/D1/CIF (1–25/30fps) Sub: 960H (1–15fps), D1/CIF (1–25/30fps) |
| Dual Stream | Yes |
| Video Bitrate | 32 kbps – 6144 kbps |
| Audio Sampling | 8 kHz, 16 bits |
| Audio Bitrate | 64 kbps |
| Video Outputs | 1 HDMI, 1 VGA HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | Without IP Extension: 1/4/8/9/16 With IP Extension: 1/4/8/9/16/25/36 |
| Third-Party Camera Compatibility | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Access | iOS; Android |
| Interoperability | ONVIF 22.12 (Profile T/S/G); CGI; SDK |
| Compatible Browser | Chrome; IE9+; Firefox |
| Network Mode | Single IP Address |
| Recording Modes | General; Motion Detection; Intelligent; Alarm; POS |
| Playback | Simultaneous 1/4/9/16 channels |
| Backup Method | USB; Network |
| Playback Modes | Instant; General; Events; Tags; Intelligent (faces and motion) |
| General Alarms | Motion; Video Loss; Tampering |
| Abnormality Alarms | No disk; Disk error; Disk full; Camera offline; IP/MAC conflict |
| Intelligent Alarms | Face detection; Facial recognition; Perimeter protection |
| Alarm Actions | Recording; Snapshot; IPC alarm output; Access control; Audio; Buzzer; Log; Preset; Email |
| Audio Inputs | 1 RCA + 16 BNC (coaxial) |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes (shares input with channel 1) |
| HDD Interface | 1 SATA (up to 16 TB) |
| RS-485 | 1 port (PTZ) |
| USB | 2 ports (1×USB 2.0 front, 1×USB 3.0 rear) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 Ethernet 10/100/1000 Mbps (RJ-45) |
| Power Supply | 12 V DC, 3 A |
| Power Consumption | <15 w="" without="" hdd="" td=""> |
| Net Weight | 1.30 kg |
| Gross Weight | 2.10 kg |
| Dimensions | 325 × 257.1 × 55 mm |
| Packaging Dimensions | 372 × 117 × 308 mm |
| Operating Temperature | –10 °C to +55 °C |
| Operating Humidity | 10%–90% |
| Installation | Rack or Desktop |
| Certifications | CE, FCC |
