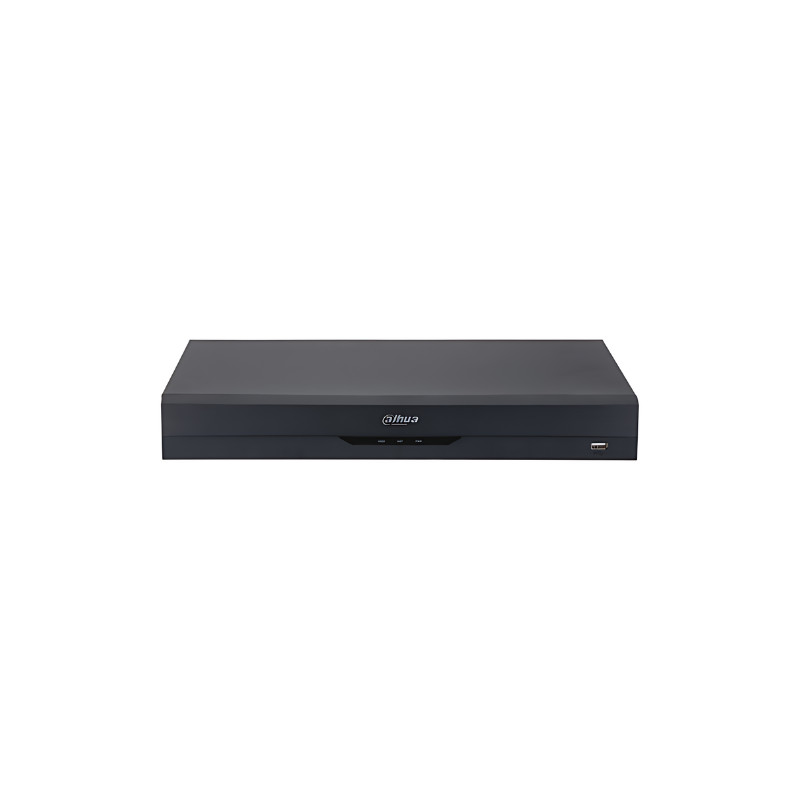

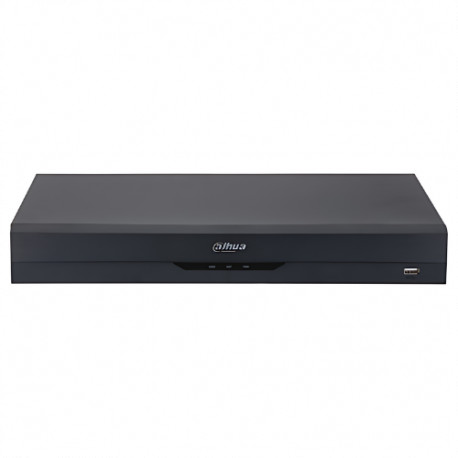

XVR5232AN-4KL-I3 – 5-in-1 XVR, 32-Channel 4K
018-XVR5232AN-4KL-I3
New product
Dahua XVR5232AN-4KL-I3 5-in-1 32-Channel Recorder
Reference: 018-XVR5232AN-4KL-I3
This product is no longer in stock
Data sheet
| Video recorders | IP |
More info
32-Channel 4K/8MP XVR 5-in-1 Recorder with 1 HDMI, 2 HDD, AI
- 6-channel QuickPick 2.0 for analog channels, enhancing target retrieval efficiency.
- 1-channel Privacy Protection for analog channels, supporting real-time face masking and restoration of detected human faces.
- 32-channel SMD Plus for analog channels, or 64-channel SMD per camera, enabling precise alarms for humans and vehicles.
- 12-channel Perimeter Protection for analog channels, supporting AI-powered intrusion and tripwire detection.
- 6-channel Facial Recognition for analog channels, supporting facial comparison.
- 32-channel AI Encoding reduces storage and bandwidth usage while preserving key target details in video.
- Supports video inputs: HDCVI, AHD, TVI, CVBS, and IP.
- Supports up to 64 IP camera channels, each up to 8 MP; total input bandwidth up to 256 Mbps.
- Dual-stream video compression with Smart H.265+ and Smart H.265.
| Parameter | Value |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Integrated Linux |
| Operation Interface | Web; Local GUI |
| QuickPick 2.0 (AI) | 6 channels |
| Perimeter Protection (AI) | Advanced Mode: 6 channels, 10 IVS rules per channel General Mode: 12 channels, 10 IVS rules per channel |
| Face Attributes | 6 attributes |
| AI Face Detection | 6 channels (up to 12 images/s per channel) |
| Privacy Protection (AI) | 1 channel |
| Face Database | Up to 10 databases with 20,000 images |
| AI Facial Recognition | 6 channels |
| SMD Plus (Recorder) | 32 channels (human/vehicle filtering, reduced false alarms) |
| SMD Plus (Camera) | 64 channels |
| AI Video Quality Analysis | 32 channels: brightness, color, blur, overexposure, contrast, B/W |
| Scene Change | 1 channel |
| Irregular Black Block Mask | 1 channel |
| EPTZ | 1 channel |
| Analog Camera Input | 32 BNC ports, auto-detection HDCVI/AHD/TVI/CVBS |
| Supported CVI Formats | 4K @ 25/30 and 12.5/15 fps; 6 MP @ 20 fps; 5 MP @ 25/20 fps; 4 MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30/50/60 fps |
| Supported TVI Formats | 4K @ 15 fps; 5 MP (2560×1944 and 2960×1665) @ 20 fps; 4 MP, 3 MP, 1080p, 720p @ 25/30 fps |
| Supported AHD Formats | 4K @ 15 fps; 5 MP @ 20 fps; 4 MP, 3 MP, 1080p, 720p @ 25/30 fps |
| IP Camera Inputs | Up to 64 channels (32 default + 32 converted) 256 Mbps incoming/recording/outgoing bandwidth |
| Encoding Capability (Enhancement OFF) | See fps details per resolution and channel |
| Encoding Capability (Enhancement ON) | See fps details per resolution and channel |
| Dual Stream | Yes |
| Video Bitrate | 32 kbps – 6144 kbps |
| Audio Sampling | 8 kHz, 16 bits |
| Audio Bitrate | 64 kbps |
| Video Outputs | 1 HDMI, 1 VGA, 1 CVBS HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | 1/4/8/9/16/25/36 |
| Third-Party Camera Compatibility | Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio Compression | G.711a, G.711u, PCM |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P |
| Mobile Access | iOS, Android |
| Interoperability | ONVIF 24.06 (Profile T/S/G), CGI, SDK |
| Compatible Browsers | Chrome, IE, Safari, Edge, Firefox |
| Recording Modes | General, Alarm, Motion Detection, Intelligent, POS |
| Playback | 1/4/9/16 channels |
| Backup Method | USB and Network |
| Playback Modes | Instant, General, Events, Tags, Intelligent |
| Disk Grouping | Yes |
| General Alarms | Motion, Box Alarm, HDCVI, External Camera, Network, PIR |
| Abnormality Alarms | No disk, Disk error, Low space, Network disconnection, IP/MAC conflict, Video loss, Tampering, Camera offline |
| Intelligent Alarms | Face detection, Facial recognition, Perimeter protection, SMD Plus |
| Alarm Linkage Actions | Recording, Snapshot, IPC alarm output, Audio, Buzzer, Log, Preset, Email |
| CVBS Output | 1 channel |
| Audio Inputs | 1 RCA + 32 BNC (coaxial) |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes (shared with channel 1 input) |
| HDD Interface | 2 SATA (up to 16 TB each, subject to temperature) |
| RS-485 | 1 |
| USB Ports | 2 (1× USB 2.0 front, 1× USB 3.0 rear) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 × RJ-45 10/100/1000 Mbps |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | <32 w="" without="" hdd="" td=""> |
| Net Weight | 2.50 kg |
| Gross Weight | 4.10 kg |
| Product Dimensions | 375 × 334.7 × 53 mm |
| Packaging Dimensions | 449 × 170 × 421 mm |
| Operating Temperature | –10 °C to +55 °C |
| Storage Temperature | –20 °C to +60 °C |
| Operating Humidity | 10%–90% RH (non-condensing) |
| Installation | Office |
| Certifications | CE-LVD, CE-EMC, FCC Part 15 Subpart B |
