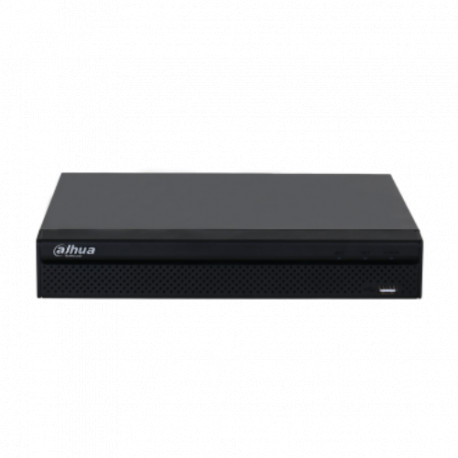

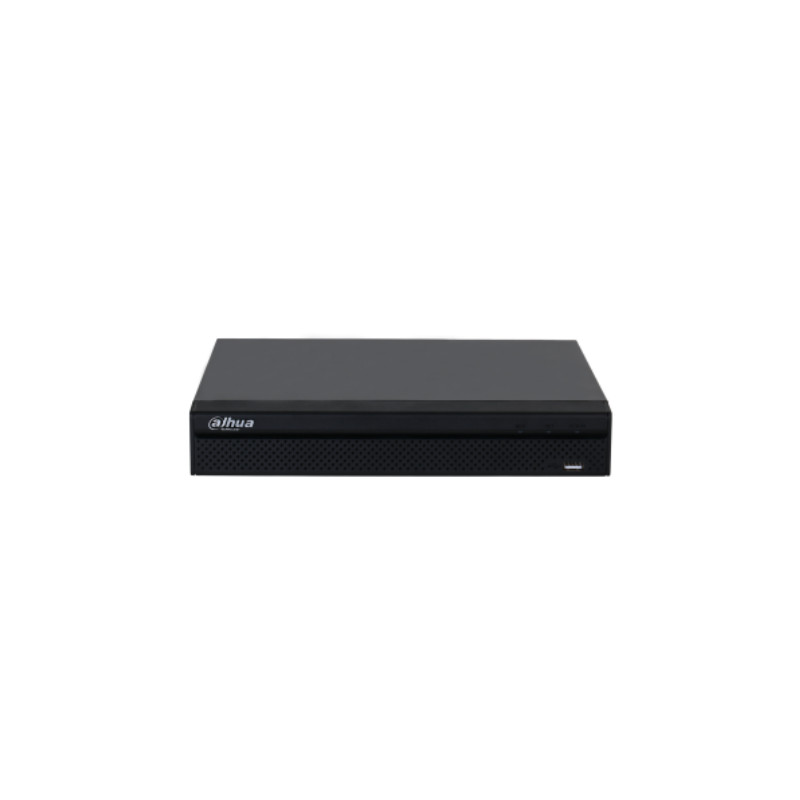

Dahua NVR2104HS-4KS3 4-Channel 4K IP Recorder

Reference: 018-NVR2104HS-4KS3

More details

This product is no longer in stock

65,22 € VAT excl.

Add to wishlist

Data sheet

Video recordersIP

More info

4-Channel 4K IP NVR Recorder

Features

  • Supports decoding formats: Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG.
  • Maximum decoding capacity: 6 × 1080p@30 fps.
  • Maximum network bandwidth: 80 Mbps ingress, 80 Mbps recording, 60 Mbps egress.
  • Supports IP cameras with resolution up to 12 MP.
  • AI by Recorder supports SMD Plus on 4 channels.
  • AI by Camera supports perimeter protection and SMD Plus.
  • Supports one-click arming and disarming.

Specifications

ParameterValue
Main ProcessorIndustrial-grade processor
Operating SystemIntegrated Linux
Operational InterfaceWeb, local GUI
AI by RecorderSMD Plus
AI by CameraPerimeter Protection; SMD Plus
Perimeter Performance (AI by Camera - Channels)4 channels
SMD Plus by Recorder4 channels: Secondary filtering for persons and motor vehicles, reducing false alarms caused by leaves, rain, and lighting changes.
SMD Plus by Camera4 channels
Access Channels4 channels
Network Bandwidth80 Mbps ingress, 80 Mbps recording, 60 Mbps egress
Resolution12 MP; 8 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; D1
Decoding CapacityAI Disabled: 1 channel 12 MP@30 fps; 1 channel 8 MP@30 fps; 2 channels 5 MP@30 fps; 3 channels 4 MP@30 fps; 6 channels 1080p@30 fps
AI Enabled: 1 channel 8 MP@30 fps; 1 channel 5 MP@30 fps; 2 channels 4 MP@30 fps; 4 channels 1080p@30 fps
Video Output1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Display Viewing1/4
Third-Party Camera AccessONVIF
Video CompressionSmart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio CompressionG.711a; G.711u; PCM; G.726
Network ProtocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP filtering; DDNS; IP Search (supports IP cameras, DVRs, NVRs, etc.); P2P; Auto Registration
Mobile AccessiOS; Android
InteroperabilityONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser SupportChrome; IE; Safari; Edge; Firefox
Multi-Channel PlaybackUp to 4 channels
Recording ModeNormal; Motion Detection; Intelligent; Alarm
Backup MethodUSB device and network
Playback ModeInstant playback; General playback; Event playback; Tag playback; Intelligent playback
General AlarmMotion Detection; External Camera Alarm; PIR Alarm
Anomaly AlarmError (no disk, disk error, low space, low quota, network disconnection, IP conflict, MAC conflict); Video loss; Video tampering; Camera offline
Intelligent AlarmPerimeter Protection; SMD Plus
Alarm LinkageRecording; Snapshot; Buzzer; Logging; Preset; Email; Patrol
Audio Input1-channel RCA
Audio Output1-channel RCA
Alarm InputNA (2 channels optional)
Alarm OutputNA (1-channel 12 V 1 A output optional)
Hard Drive Interface1 SATA port. Each drive supports up to 20 TB. Limit varies with ambient temperature.
USB2 (1 front USB 2.0, 1 rear USB 2.0)
HDMI1
VGA1
Network Port1 (10/100 Mbps Ethernet, RJ-45)
Power Supply12 V DC, 1.5 A
Power Consumption<10 W (without hard drive)
Net Weight0.85 kg (1.87 lbs)
Gross Weight1.39 kg (3.06 lbs)
Product Dimensions260.0 mm × 232.5 mm × 47.6 mm (W × D × H)
Packaging Dimensions334.0 mm × 89.0 mm × 314.0 mm (W × D × H)
Operating Temperature–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity10%–93% RH, non-condensing
InstallationRack or desktop
CertificationsCE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017 +A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
