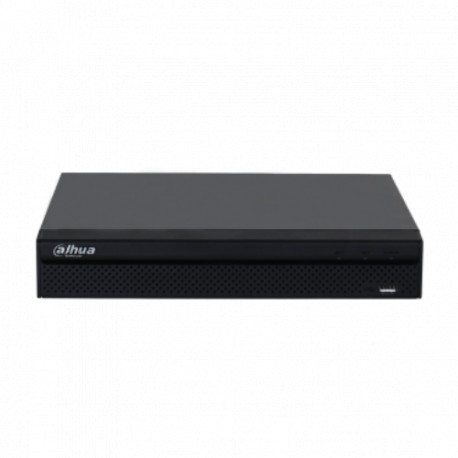

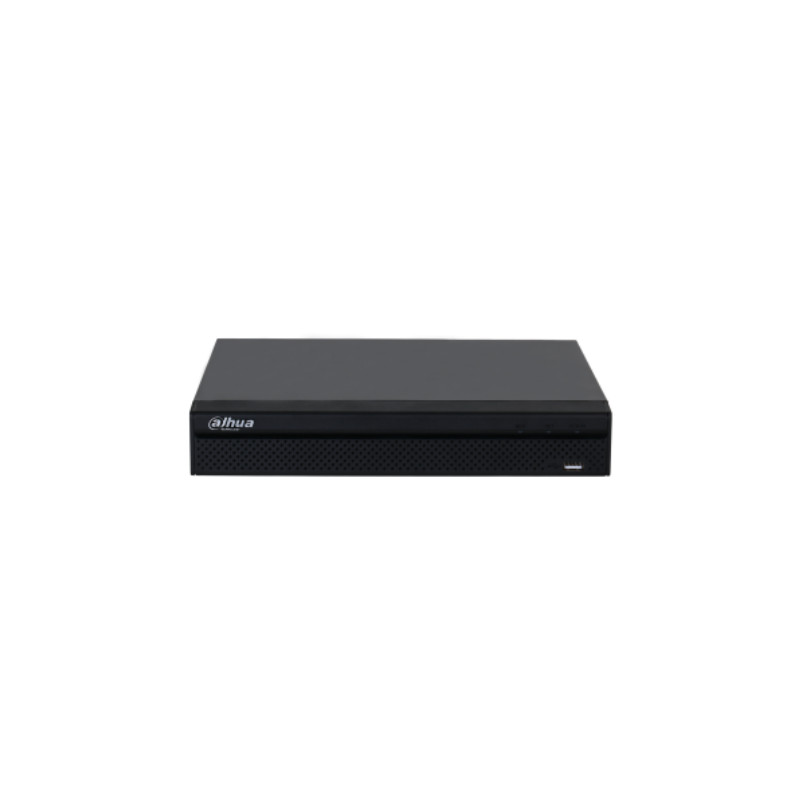

Dahua NVR2116HS-4KS3 16-Channel 4K IP Recorder

Reference: 018-NVR2116HS-4KS3

More details

This product is no longer in stock

88,74 € VAT excl.

Add to wishlist

Data sheet

Video recordersIP

More info

16-Channel 4K IP NVR Recorder

Features

  • Supports decoding formats: Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG.
  • Maximum decoding capacity: 6 × 1080p at 30 fps.
  • Maximum network bandwidth: 144 Mbps ingress, 144 Mbps recording, 72 Mbps egress.
  • Supports IP cameras with resolution up to 12 MP.
  • AI by Recorder supports SMD Plus on 4 channels.
  • AI by Camera supports perimeter protection and SMD Plus.
  • Supports one-click arming and disarming.

Specifications

ParameterValue
Main ProcessorIndustrial-grade processor
Operating SystemIntegrated Linux
Operational InterfaceWeb, local GUI
AI by RecorderSMD
AI by CameraPerimeter Protection; SMD
Perimeter Performance (AI by Camera - Channels)All channels (4 targets/s)
SMD Plus by Recorder4 channels: Secondary filtering for persons and motor vehicles, reducing false alarms caused by leaves, rain, and lighting changes.
SMD Plus by CameraAll channels (8 targets/s)
Access Channels16 channels
Network BandwidthAI Disabled: 144 Mbps ingress, 144 Mbps recording, 72 Mbps egress
AI Enabled: 72 Mbps ingress, 72 Mbps recording, 36 Mbps egress
Resolution12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF
Decoding CapacityAI Disabled: 1 channel 12 MP@30 fps; 1 channel 8 MP@30 fps; 2 channels 6 MP@30 fps; 2 channels 5 MP@30 fps; 3 channels 4 MP@30 fps; 6 channels 1080p@30 fps
AI Enabled: 1 channel 8 MP@30 fps; 1 channel 6 MP@30 fps; 1 channel 5 MP@30 fps; 2 channels 4 MP@30 fps; 4 channels 1080p@30 fps
Video Output1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Display Viewing1/4/8/9/16
Third-Party Camera AccessONVIF
Video CompressionSmart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio CompressionG.711a; G.711u; PCM; G.726
Network ProtocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filtering; DDNS; IP Search (compatible with IP cameras, DVRs, NVRs, etc.); P2P; Auto Registration
Mobile AccessiOS; Android
InteroperabilityONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser SupportChrome; Internet Explorer; Safari; Edge; Firefox
Multi-Channel PlaybackUp to 16 channels
Recording ModeNormal; Motion Detection; Intelligent; Alarm
Backup MethodUSB device and network
Playback ModeInstant playback; General playback; Event playback; Tag playback; Intelligent playback
General AlarmMotion Detection; External Camera Alarm; PIR Alarm
Anomaly AlarmError (no disk, disk error, low space, low quota; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent AlarmPerimeter Protection; SMD Plus
Alarm LinkageRecording; Snapshot; Buzzer; Logging; Preset; Email; Patrol
Audio Input1-channel RCA
Audio Output1-channel RCA
Alarm InputNA (2 channels optional)
Alarm OutputNA (1-channel 12 V 1 A output optional)
Hard Drive Interface1 SATA port. Each drive supports up to 20 TB. Limit varies with ambient temperature.
USB2 (1 front USB 2.0, 1 rear USB 2.0)
HDMI1
VGA1
Network Port1 (10/100/1000 Mbps Ethernet, RJ-45)
Power Supply12 V DC, 1.5 A
Power Consumption<10 W (without hard drive)
Net Weight0.85 kg
Gross Weight1.39 kg
Product Dimensions260.0 mm × 232.5 mm × 47.6 mm (W × D × H)
Packaging Dimensions334.0 mm × 89.0 mm × 314.0 mm (W × D × H)
Operating Temperature–10 °C to +55 °C
Storage Temperature–20 °C to +60 °C
Operating Humidity10%–93% RH, non-condensing
CertificationsCE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
