New
NVR WiFi 4 channels
018-NVR1104HS-W-S2-CE
New product

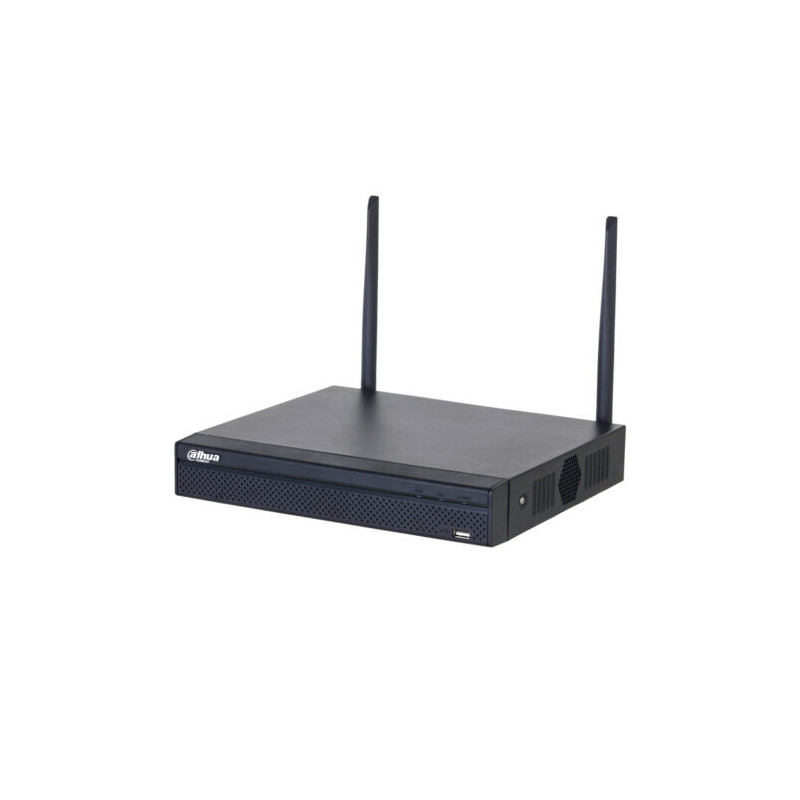

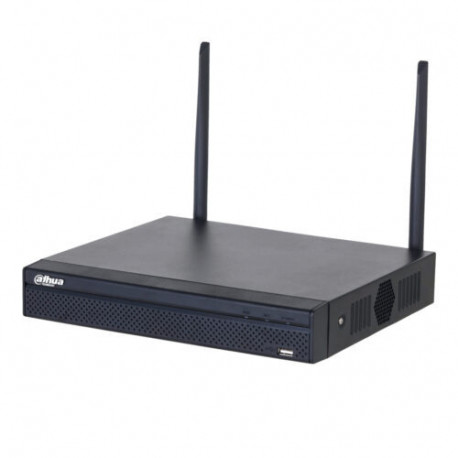

Dahua 4-Channel WiFi NVR
Reference: 018-NVR1104HS-W-S2-CE
This product is no longer in stock
Data sheet
| Video recorders | IP |
More info
4CH NVR 40Mbps H.265 HDMI 1HDD WiFi Dual Antenna
Features
- New UI 4.0 · One-click wireless pairing with IPC
- Automatic IPC pairing within 120 seconds after boot-up under interference-free conditions
- Automatic IPC cascading for long-distance surveillance
- 4 channels @ 1080P (25 FPS) with adaptive decoding capability
- Supports ONVIF-compliant main cameras
- Support for Smart H.265 / Smart H.264
- Simultaneous VGA/HDMI video output; maximum HDMI resolution: 1080P
- Remote IPC configuration and management: parameter adjustment, information retrieval, and batch firmware updates for identical models
- Support for DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext Transfer Protocol), NTP (Network Time Protocol), and DDNS (Dynamic Domain Name System)
Specifications
| Parameter | Value |
|---|---|
| System | |
| Main Processor | Integrated industrial-grade processor |
| Operating System | Integrated Linux |
| Operation Interface | Web; Local GUI |
| Audio and Video | |
| Access Channels | 4 channels |
| Network Bandwidth | Wired Mode: 40 Mbps input, 40 Mbps recording, 20 Mbps output Wireless Mode: 16 Mbps input, 16 Mbps recording |
| Resolution | 6 MP, 5 MP, 4 MP, 3 MP, 2 MP, 720p, D1 |
| Decoding Capacity | 1 channel 6 MP @ 25 fps; 1 channel 5 MP @ 25 fps; 2 channels 4 MP @ 25 fps; 2 channels 3 MP @ 25 fps; 4 channels 1080p @ 25 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-View Display | 1, 4 views |
| Third-Party Camera Access | ONVIF |
| Video Compression | Smart H.265; H.265; Smart H.264; H.264; MJPEG |
| Audio Compression | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; PNT; DHCP; DNS; Alarm Server; P2P |
| Mobile Access | Android; iOS |
| Interoperability | ONVIF (Profile T/S/G); CGI; SDK |
| Browser Support | Chrome; IE 9 or later; Firefox |
| Recording Playback | |
| Multi-Channel Playback | Up to 4 channels |
| Recording Modes | Manual, Alarm-triggered, Motion Detection, Scheduled |
| Storage Method | Local HDD and Network |
| Backup Method | USB Device |
| Playback Modes | Instant, General, Event-based, Tag-based, Intelligent (Motion Detection) |
| Alarm | |
| General Alarm | Motion Detection, Privacy Masking, Video Loss, IR Alarm |
| Anomaly Alarm | Camera Offline, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Lockout, Cybersecurity Exception |
| Alarm Linkage | Recording, Snapshot, Buzzer, Login, Preset, Patrol |
| Ports | |
| Audio Input | 1 |
| Audio Output | 1 |
| Hard Drive Interface | 1 SATA port, up to 16 TB (maximum capacity varies with ambient temperature) |
| USB | 1 front USB 2.0, 1 rear USB 2.0 |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 × RJ-45, Auto-adapting 10/100 Mbps Ethernet |
| General | |
| Power Supply | 12 V DC, 1.5 A |
| Power Consumption | ≤ 10 W (without HDD) |
| Net Weight | 0.824 kg (1.82 lb) |
| Gross Weight | 1.56 kg (3.44 lb) |
| Product Dimensions | 260.3 mm × 247.3 mm × 44.7 mm (W × D × H) |
| Packaging Dimensions | 372 mm × 117 mm × 308 mm (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% RH |
| Installation | Rack or Desktop |
| Certifications | CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-RED: EN301489-1; EN301489-17; EN300328; EN62311 FCC ID: 47 CFR PART 15 SUBPART C |
