New
XVR5116HS-I3- XVR 5 in 1 16 channels 5MP
018-XVR5116HS-I3
New product

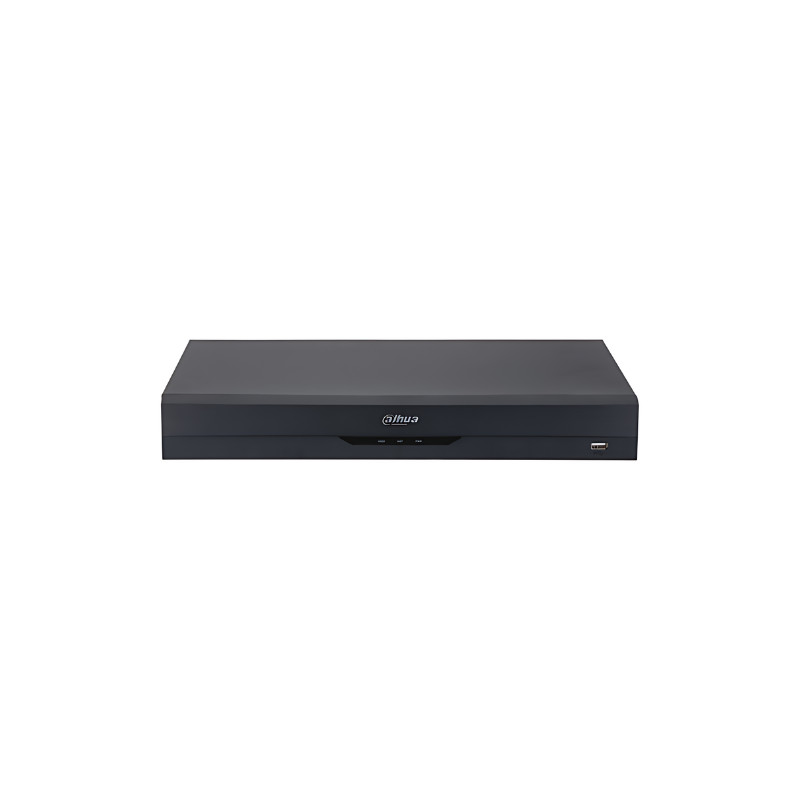

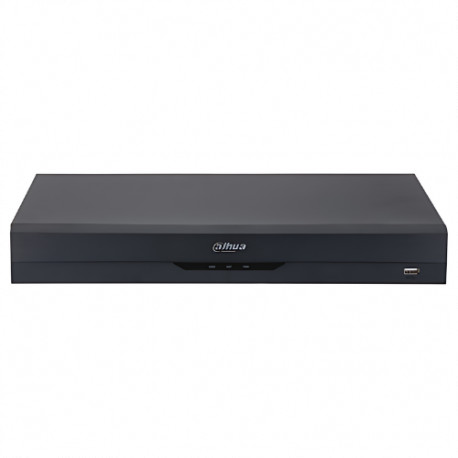

Dahua XVR5116HS-I3 Recorder – 16-channel 1080P XVR with HDMI and 1 HDD
Reference: 018-XVR5116H-I3-V3
Data sheet
| Video recorders | IP |
More info
16-Channel 5MP Dahua 5-in-1 XVR
Features
- Dahua 5-in-1 XVR with 16 channels, 5MP support
- Compatible formats: AI / H.265+ / H.265
- 16 BNC HD channels + 8 IP channels
- Recording up to 5M-N @ 10 fps
- Maximum incoming bandwidth: 128 Mbps
- Video outputs: HDMI 4K and VGA 1080P
- Bidirectional audio
- Support for audio over coaxial cable
- Advanced functions: Perimeter protection, SMD Plus, facial recognition, IoT, and POS
- Supports up to 1 x 16 TB HDD, 1 RJ45 port, 2 USB ports, and 1 RS485 port
Specifications
| Parameter | Value |
|---|---|
| Supported Technologies | IP, HDCVI, HDTVI, AHD, and analog CVBS cameras with automatic signal recognition |
| Video Inputs | 16 BNC channels up to 5MP (convertible to IP) + 8 additional IP channels up to 6MP |
| Video Compression | AI, H.265+, H.265, H.264+, H.264 |
| Video Outputs | HDMI (4K) and VGA (up to 1080P) |
| Multi-View Display | 1, 4, 8, 9, 16 (IP mode disabled); 1, 4, 8, 9, 16, 25 (IP mode enabled) |
| Bidirectional Audio | 1 RCA input / 1 RCA output |
| Additional Audio Inputs | 16 channels via coaxial cable |
| Audio Compression | G.711a, G.711u, PCM |
| Recording Resolution | 6MP (IP), 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Maximum Incoming Bandwidth | 128 Mbps |
| Main Stream | 5M-N (1–10 fps), 4M-N/1080P (1–15 fps), 1080N/720P/960H/D1/CIF (1–25 fps) |
| Sub Stream | D1/CIF (1–15 fps) |
| Recording Modes | Manual, Schedule, Video Detection, Video Loss, Tampering, Alarm, Stop |
| Simultaneous Playback | Up to 16 channels |
| Perimeter Protection | 2 channels |
| Facial Recognition | 2 channels, up to 12 faces per channel, up to 10 databases and 20,000 images |
| SMD Plus | 16 channels, human/vehicle classification |
| Internal Storage | 1 SATA HDD up to 16 TB (not included) |
| User Interface | Multilingual menu with enhanced graphical interface |
| Additional Functions | Dahua camera firmware update, hardware/software watchdog, digital watermarking |
| Network Port | RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Compatible Protocols | ONVIF 16.12, CGI |
| Remote Access | Web browser, iPhone, iPad, Android |
| Alarm Functions | Email alerts with image, scheduled or alarm-triggered FTP, CRA connection |
| Network | Static or dynamic IP via DDNS |
| Communication Ports | 1 USB 2.0, 1 USB 3.0, 1 RS-485 (PTZ control) |
| Power Supply | 12 V DC, 2 A (<12 W without drives) |
| Storage Temperature | –20 °C to +70 °C |
| Operating Temperature | –10 °C to +55 °C |
| Operating Humidity | 10%–90% |
| Dimensions | 260 × 47.6 × 237.6 mm |
| Weight | 1.17 kg |
| Installation | Desktop |
