New

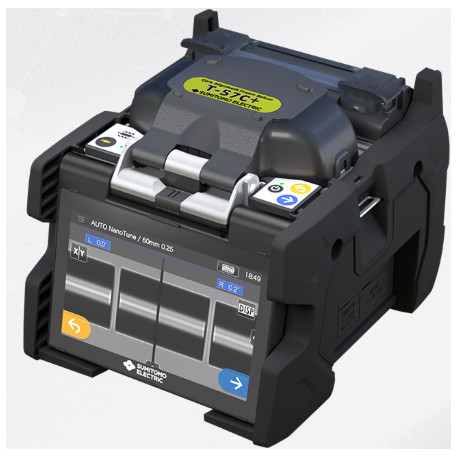

KIT Sumitomo T-57C+ Fusion Splicer and 6R+ Fiber Cleaver
FO-T57C+/6R+
New product
High-performance optical fiber fusion splicer with core alignment. Designed for professionals seeking speed and reliability in the field.
Reference: FO-T57C+/6R+
This product is no longer in stock
Data sheet
| Accessories | Fusion Splicers |
More info

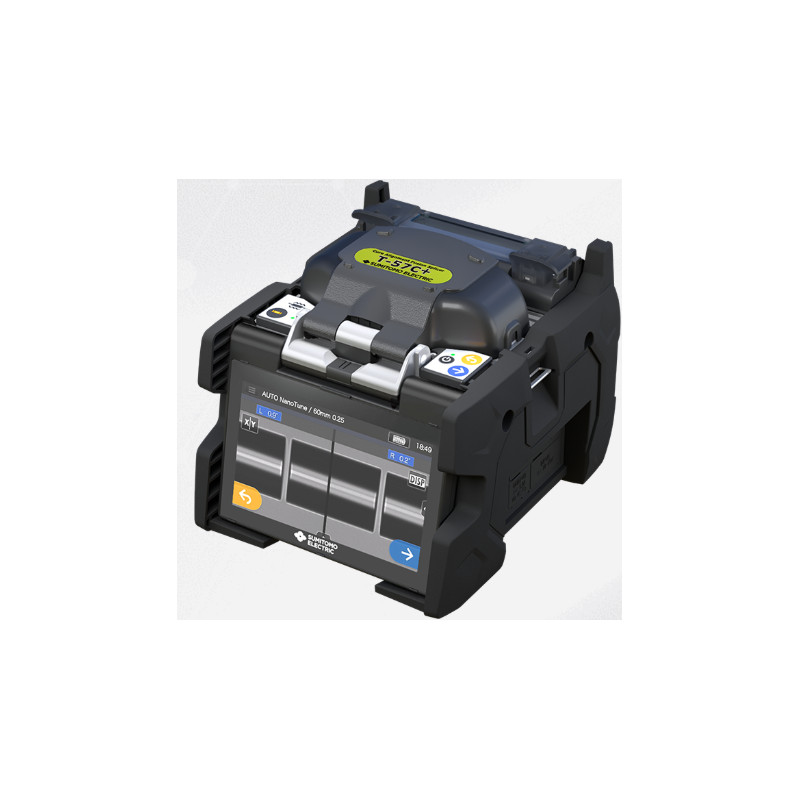

Sumitomo T-57C+ Core Alignment Fusion Splicer + 6R+ Cleaver
High-performance optical fiber fusion splicer with core alignment. Designed for professionals seeking speed and reliability in the field. Complete kit including FC-6R+ cleaver.
✅ Complete Kit: Includes FC-6R+ Cleaver
Main Features
- Ultra Fast: Splicing in 6 seconds (Quick Mode) and heating in 15 seconds for maximum productivity.
- Long Lasting Battery: Up to 310 complete splice & heat cycles with the BU-16 battery.
- Reinforced Resistance: Meets IK07 standard against impacts, with IP5x (dust) and IPx2 (water) protection.
- HD Touch Screen: 5.0" color LCD display with 2 CMOS cameras and up to 350X magnification (zoom 700X).
- Precision Splicing: Typical loss of 0.02dB in SMF and 0.01dB in MMF for optimal quality.
Active Technologies
| Core Alignment | Automatic core alignment ensuring high precision splices and minimal insertion loss for all fiber types. |
| Automatic Identification | Automatically recognizes fiber type (SMF, MMF, DSF, NZDSF, BIF) to select the optimal program. |
| Automatic Arc Calibration | Automatically compensates for environmental condition changes to maintain splice quality. |
Splicing Performance
| Splice Time | 6s (SM G652 Quick Mode), 8s (Auto Mode). Class-leading speed to maximize field performance. |
| Heating Time | 15s for 60mm sleeves (FPS-61-2.6). Fast and uniform heating. |
| Splice Loss | Typical 0.02dB in SMF, 0.01dB in MMF. Ensures optimal signal quality in telecommunications networks. |
Environmental Resistance
| Impact Resistance | Equivalent to IK07 on LCD monitor. Resistant to drops from 76cm on 5 faces, 4 edges and corners. |
| Dust Protection | Equivalent to IP5x. Operates normally after exposure to circulating dust particles. |
| Water Protection | Equivalent to IPx2. Resistant to vertically dripping water, ideal for outdoor work. |
Connectivity & Management
| Data Storage | SD/SDHC memory card (Max 32GB) to store up to 50,200 images and 20,000 splice data records. |
| Customizable Programs | Up to 300 splice programs (40 pre-optimized, 260 editable) and 100 heating programs (23 pre-optimized, 77 editable). |
| Update & PC | USB 2.0 port for PC connection and software update via Internet. Optional Wireless LAN available. |
Kit Content
| Splicer | Sumitomo T-57C+ Core Alignment with 5.0" touch screen |
| Cleaver | FC-6R+ Included - Bench-top cleaver with automatic blade rotation |
| Power Supply | AC Adapter (ADC-16), Charger (BC-16) and Li-ion Battery BU-16 (6,400mAh) |
| Case & Accessories | CC-72 Case with worktable, ER-10 electrodes, USB cable, quick guide and cooling tray |
| Reference | FO-T57C+/6R+ |
