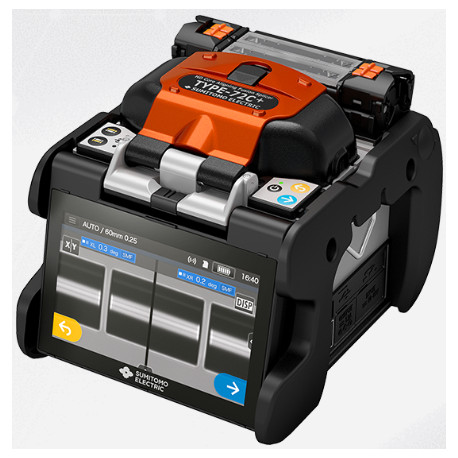

Sumitomo T-72C+ Fusion Splicer Kit WITH 8R CLEAVER
FO-T72C+/8R
New product
Sumitomo automatic core alignment fusion splicer with NanoTune technology for high-precision splices and maximum productivity.
Combines speed, durability, and reliability in a compact and portable design. Ideal for FTTH installations, telecommunications networks, and outdoor work.
Reference: FO-T72C+/8R
This product is no longer in stock
Data sheet
| Accessories | Fusion Splicers |
More info

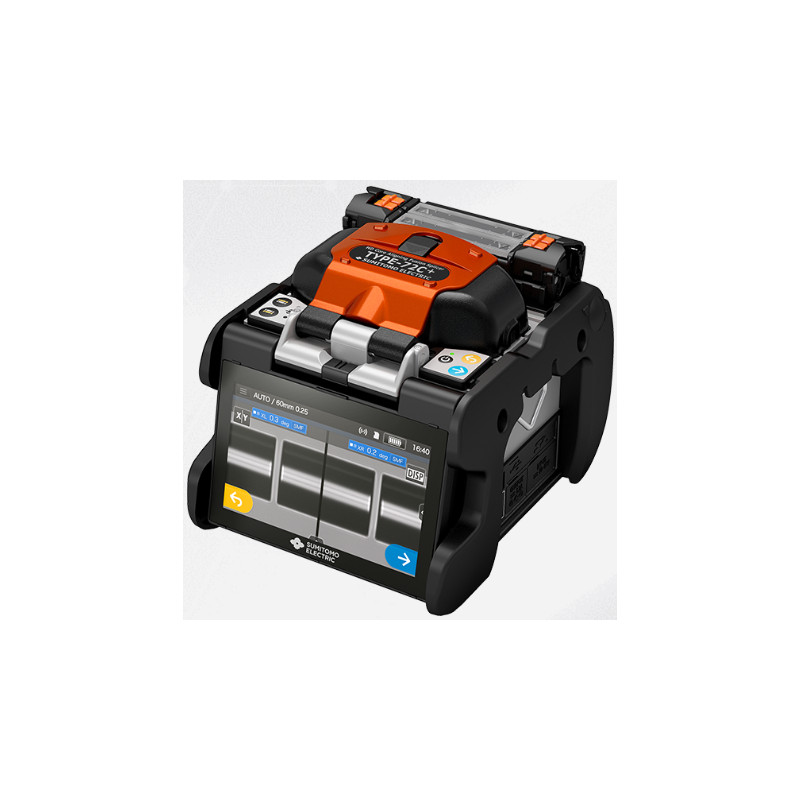

Sumitomo TYPE-72C+ – Core Alignment Fusion Splicer with 8R Cleaver
Reliable splicer with NanoTune technology for an enhanced splicing experience. Designed to offer high productivity with 2 independent ovens and exceptional battery life for outdoor work.
✅ Includes 8R cutter
Main Features
- High Productivity: Two independent high-speed ovens to prepare the next protector while the previous one cools down.
- Long-Lasting Battery: Up to 320 complete splice and heat shrink cycles with the BU-16 battery.
- Reinforced Durability: Meets IK07 standard against impacts, with IPx2 (water) and IP5x (dust) protection.
- HD Images: 2 CMOS cameras with up to 760X magnification for clear core vision.
- Ultra-Fast Splicing: 5 seconds in Quick Mode (SMF) with typical loss of only 0.01 dB.
Active Technologies
| NanoTune Technology | Automatic core alignment ensuring high-precision splices and minimal insertion loss on all fiber types. |
| Automatic Identification | Automatically recognizes fiber type (SMF, MMF, DSF, NZDSF, BIF, CSF, EDF) to select the optimal program. |
| Automatic Arc Calibration | Automatic compensation of the electric arc based on environmental conditions to maintain splice quality. |
Splicing Performance
| Splicing Time | 5s (SM G652 Quick Mode), 7s (Auto Mode). Class-leading speed to maximize performance. |
| Oven Time | 8s for 60mm protectors. Fast and uniform heating thanks to two independent ovens. |
| Splicing Loss | Typical 0.01dB on SMF. Ensures optimal signal quality in telecommunications networks. |
Environmental Resistance
| Impact Resistance | Equivalent to IK07 on LCD screen. Reinforced to better withstand knocks on construction sites. |
| Dust Protection | Equivalent to IP5x. Operates normally after exposure to circulating dust particles. |
| Water Protection | Equivalent to IPx2. Resistant to vertically dripping water, ideal for outdoor work. |
Connectivity & Management
| Data Storage | SD/SDHC memory card (Max. 32GB) to store images and splice results. |
| Customizable Programs | Up to 300 splicing programs (74 pre-installed) and 100 oven programs editable by the user. |
| Update & PC | USB 2.0 port for PC connection and software updates via Internet. |
Kit Content
| Carrying Case | Includes robust CC-72 case to protect equipment in transit. |
| Power Supply | AC Adapter (ADC-16) and Long-Lasting Li-ion Battery (BU-16). |
| Accessories | Spare electrodes (ER-10), quick reference guide, and USB cable. |
| Cleaver | NOT INCLUDED |
| Reference | FO-T72C+/8R |
