AirEngine5761-11W, 11ax indoor, 2+2 dual bands | Huawei
HUA-AIRENGINE5761-11W
New product
HUA-AIRENGINE5761-21
Data sheet
| Networking and Wireless | Access Points |
| Free Band | Huawei |
More info

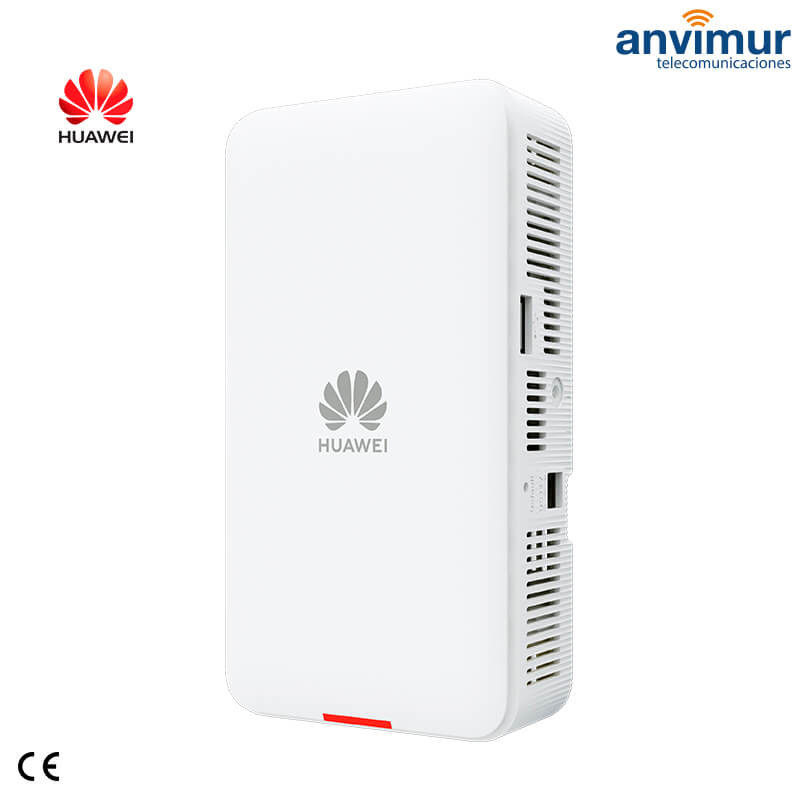

AirEngine5761-11W, 11ax indoor, 2+2 dual bands | Huawei
AirEngine 5761-11W is Huawei's Wi-Fi 6 wall plate access point (AP). It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.
- Uplink: 1 x GE electrical port; downlink: 4 x GE electrical port + 2 x RJ45 passthrough port.
- Mounting on a junction box or wall, facilitating deployment.
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move.
- USB port for IoT application extension (such as ZigBee and RFID).
- Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags.
- Working modes: Fit, Fat, and cloud management.
Specifications
| Item | Description | |
| Technical specifications | Dimensions (H x W x D) | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Weight | 0.300 kg | |
| System memory | DDR4 1 GB | |
| Flash | NAND FLASH 512 MB | |
| Power specifications | Power input | DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3at/802.3af |
| Maximum power consumption | 12.7 W (without USB) NOTE: The actual maximum power consumption depends on local laws and regulations. | |
| Environment specifications | Operating temperature and altitude | -60 m to +1800 m: 0°C to 40°C 1800 m to 5000 m: The maximum temperature decreases by 1°C every time the altitude increases 300 m. |
| Storage temperature | -40°C to +70°C | |
| Operating humidity | 5% to 95% (non-condensing) | |
| Atmospheric pressure | 53 kPa to 106 kPa | |
