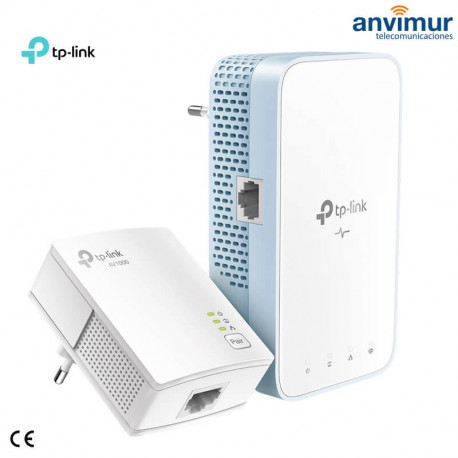

WPA7517, AV1000 Gigabit Powerline ac Wi-Fi Kit | TP-LINK

  • Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters.
  • Dual band 802.11ac Wi-Fi - AC750 dual band Wi-Fi (433Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home.
  • Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move.
  • Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS.
  • Plug, Pair and Play - Quickly set up a secured Powerline network.

Specifications

HARDWARE FEATURES
Plug TypeEU
Standards and ProtocolsHomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
InterfaceTL-WPA7517: 1 Ethernet Port
TL-PA7017: 1 Ethernet Port
ButtonPair, Reset, Wi-Fi Clone, LED On/Off
Power ConsumptionTL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W
LED IndicatorPower, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
Dimensions ( W x D x H )TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring
CompatibilityCompatible with all HomePlug AV & AV2 standard powerline adapters
Transmission SpeedsPowerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
WIRELESS FEATURES
Wireless SecurityWPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE FEATURES
ManagementtpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com.
Modulation TechnologyOFDM (PLC)
EncryptionPowerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
OTHERS
CertificationCE, RoHS
Package ContentsAV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
Ethernet Cable × 2
Quick Installation Guide
System RequirementsWindows 10/8.1/8/7/Vista/XP, Mac OS, Linux
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing

More information and downloads WPA7517 KIT, here.
