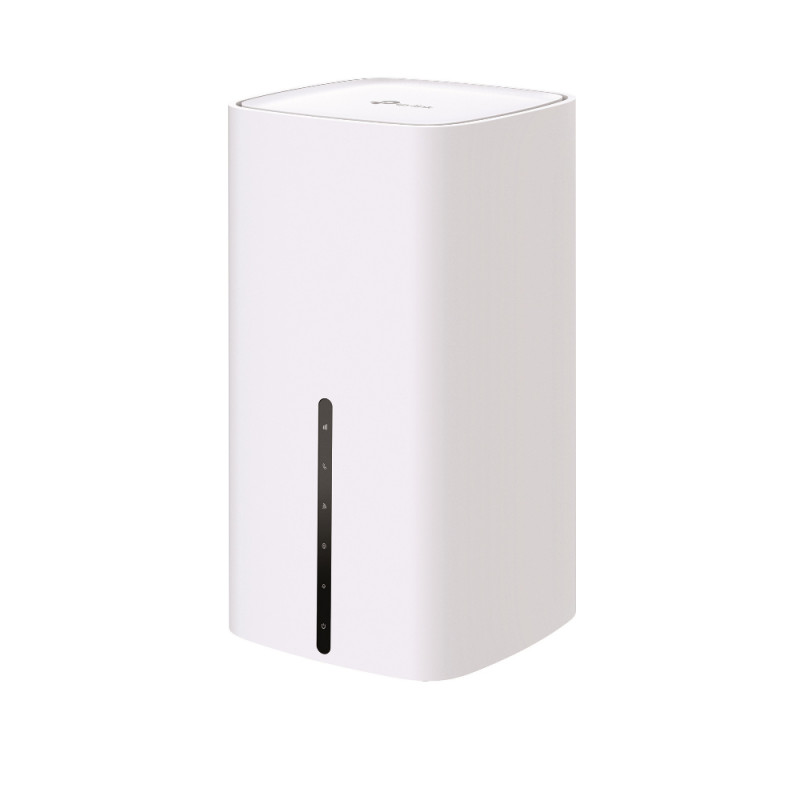

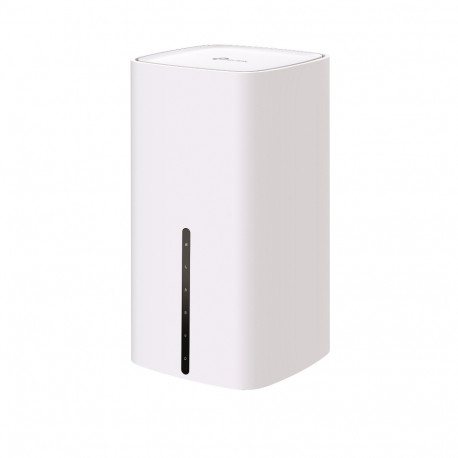

NX220v Router: High-Speed 5G and Wi-Fi 6 Connectivity
Supports VoLTE, AX1800, and Gigabit Ethernet ports
Perfect for modern homes—no fixed-line connection required.



Model: TL-NX220V

More details

148,00 € VAT excl.

Add to wishlist

Data sheet

Networking and WirelessExtensores

More info

NX220v, VoLTE 5G Wi-Fi 6 AX1800 Gigabit Ethernet Router | TP-LINK

  • Wi-Fi 6 AX1800 – Stable Connectivity for Home and Outdoor Use:
    Up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
    Supports OFDMA, MU-MIMO, 1024-QAM, Beamforming, Multi-SSID, Guest Network, and advanced WPA/WPA2/WPA3 security.
  • Smart Coverage with EasyMesh:
    Compatible with EasyMesh, enabling a flexible Mesh network with optimized roaming (802.11k/v/r) and seamless whole-home coverage.
  • Full Connectivity – 5G + Gigabit LAN:
    Includes 1 auto-sensing Gigabit WAN/LAN port and 2 Gigabit LAN ports.
    Internet access via 5G/4G/3G or Ethernet connection.
    Supports Dynamic IP, Static IP, PPPoE, PPTP, L2TP (Multi-WAN).
  • Advanced 5G Connectivity – Superior Speed and Low Latency:
    Supports 5G SA/NSA with speeds up to 4.67 Gbps and ultra-low 1 ms latency.
    Compatible with multiple 5G bands, 4G FDD/TDD, and 3G (DC-HSDPA/HSPA+/UMTS), ideal for homes without fiber, rural areas, or wireless business use.
  • VoLTE/CSFB Telephony:
    With 1 voice port (RJ11), users can make or receive phone calls over the internet by simply connecting the device to their telephone.
  • Advanced Applications and Features:
    Includes Parental Controls, QoS, Anti-virus, IPSEC VPN, IPTV, TP-Link DDNS, MAC/IP/URL filtering, Port Forwarding, traffic statistics, SIM card management, LED control, and IPv6 support.
  • Aginet App:
    End-user application available on iOS and Android for easy router setup and management, adding value for ISPs by enhancing user experience.
  • Quick and Easy Configuration:
    With AginetConfig, load configuration files from the app or via TFTP, preventing customers from accidentally resetting the settings.
  • Professional Remote Management:
    Compliant with TR-069, TR-181, TR-111, TR-143, and TR-369 (USP) standards.
    Enables secure remote administration via WebGUI, HTTPS, SNMP, and cloud.
  • TAUC Management Platform Compatibility:
    Fully compatible with TAUC (TP-Link Aginet Unified Cloud), which—beyond TR-369 USP remote management—includes Wi-Fi Analytics features to enable proactive support and continuous service optimization.

Specifications

HARDWARE FEATURES

CPU2.0GHz Quad-Core CPU
Interface3 Gigabit ports
* Per unit 1 port supports auto-sensing WAN/LAN
ButtonsReset button
WPS button
External Power SupplyOutput: 12V/2A
Input: 100-240V~50-60Hz 0.8A
Dimensions3.9 × 3.9 × 7.5 in (99 × 99 × 190 mm)
AntennasInternal Wi-Fi antennas
Optional: internal/external LTE/5G antennas

WIRELESS FEATURES

Wireless StandardsIEEE 802.11a/n/ac/ax 5GHz,
IEEE 802.11b/g/n/ax 2.4GHz
Frequency2.4 GHz and 5 GHz
Signal Rate5G: 4.67 Gbps (downstream) / 1.25 Gbps (upstream)
LTE: 1.6 Gbps (downstream) / 200 Mbps (upstream)
Wireless SecurityWPA/WPA2-PSK/WPA3 encryption
Transmit PowerCE: ≤20dBm (2.4GHz); ≤23dBm (5G band1/band2);
≤30dBm (5G band3)
RCM: ≤30dBm (2.4GHz); ≤23dBm (5G band1/band2);
≤30dBm (5G band3/band4)
Network Type5G:
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78

4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B23/B28
TDD-LTE: B38/B40/B41/B42/B43

3G:
DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA B1/B5/B8
Mesh Technology802.11k/v/r, supports EasyMesh

SOFTWARE FEATURES

Working Mode5G/4G/3G, Wi-Fi Router
Multi SSID3 additional 2.4GHz/5GHz networks
FeaturesParental Controls, QoS (Quality of Service), Address Reservation,
Port Forwarding, Dynamic DDNS, SIM Management, SMS,
Cloud Upgrade, EasyMesh, VoLTE, IPTV, IPv6, NAT Forwarding,
Firewall, LED Control, Network Diagnostic, CWMP, SNMP,
Traffic Statistics, WPS, 1024-QAM, OFDMA, IPSEC VPN, Web Remote Control
WAN TypeDynamic IP / Static IP / PPPoE / L2TP / PPTP
ProtocolsSupports IPv4 and IPv6

Accessories
