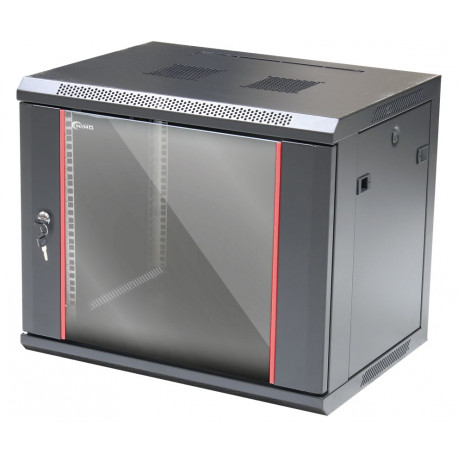

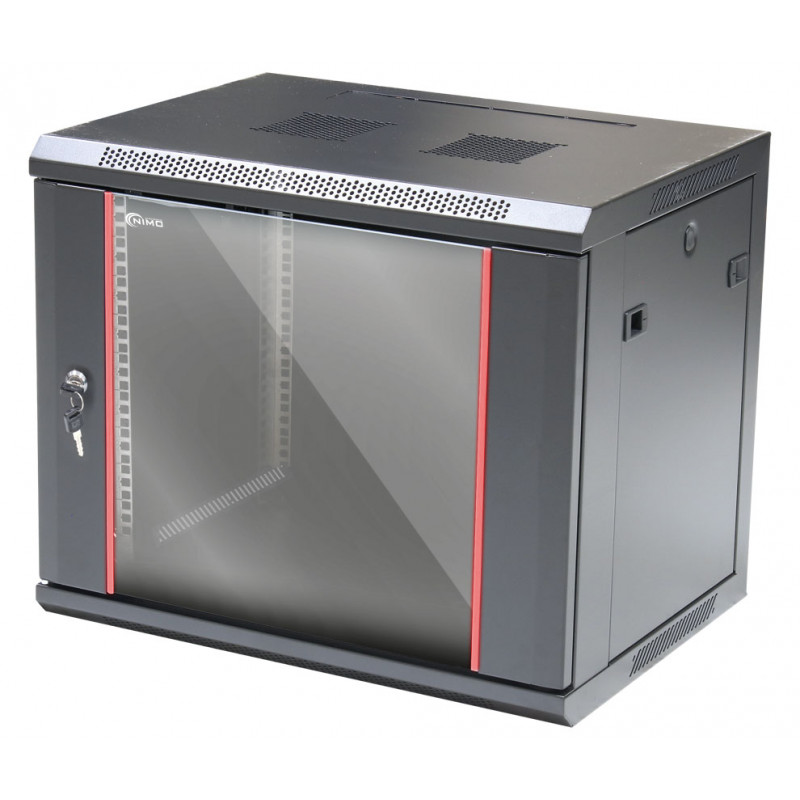

> >19" WALL-MOUNTED CABINET 600X450X500 mm

19" WALL-MOUNTED CABINET 600X450X500 mm

LN-EUBOX09U5445

New product

9U Wall-mounted 19" rack cabinet, 450mm deep, without accessories, featuring high quality and robustness. Easy to install on walls and ideal for housing internet connection routers, small Switch distributors to interconnect servers, workstations, network printers, and IP phones.

Reference: LN-EUBOX09U5445

More details

80,00 € VAT excl.

Add to wishlist

Data sheet

RACKs y SAIsRACK

More info

19" Rack Cabinet 9U 600x450x500mm

  • Tempered glass front door with small round lock, RKA0080 type.
  • Steel sheet door frame.
  • Two side panels with closure clips.
  • One bottom mounting cover.
  • 4 x 19" angles for 1.5mm mounting.
  • Torx T-type key for assembly.
  • Galvanized M6 screws, nuts, and clips (=12U: 10 pieces, >12U: 20 pieces).
  • Structure: welded frame.
  • Static load capacity: 100 KG.
  • Surface finish: black powder coating RAL9004.
  • Manufactured according to standards: AN RS-310DSI/EIA, IEC60297-2, DIN414+94-PART 1, DIN1494-PART 7, GB/T3047.2-92:ERSI.

Technical Specifications

FinishAssembled
ApplicationWall-mounted
Unit Capacity9U
ChassisCold-rolled steel sheet
ColorBlack RAL9004
Weight21.5 kg
Product19" Rack Cabinet
DoorTempered glass with lock and keys
Size600x450x500mm (19")
