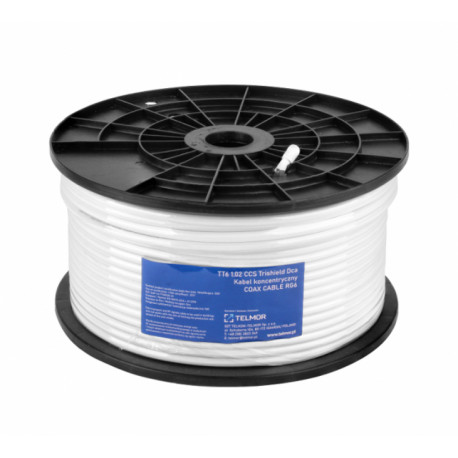

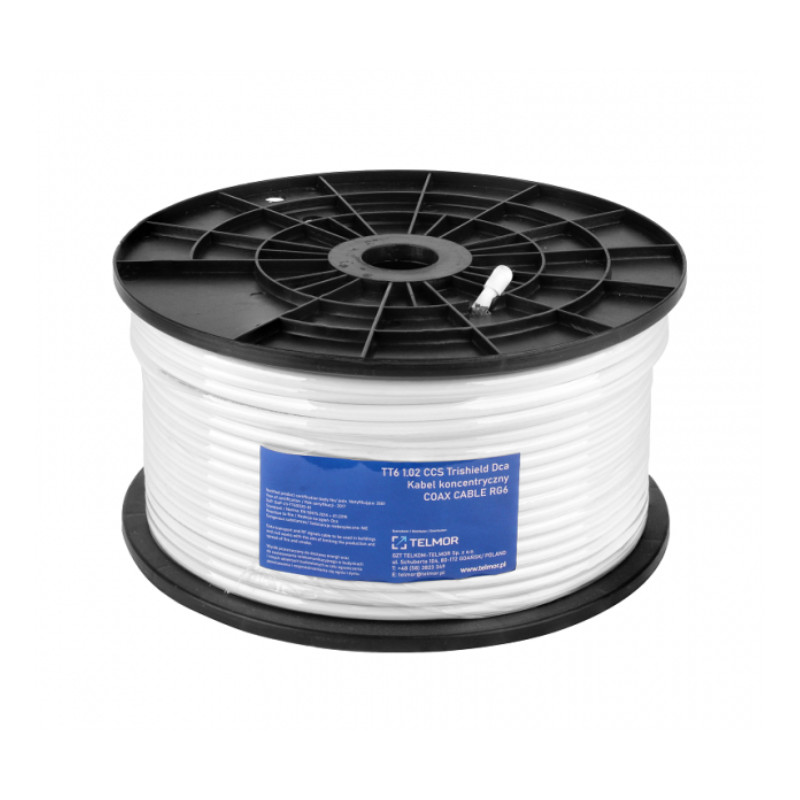

Coaxial Cable TT6102 100m

The TT6 102 cable is based on the RG6 standard and manufactured in accordance with the highest quality standards. It features a triple shielding (Trishield) system that provides excellent protection against electromagnetic and radio frequency interference.

Key Features:

• 100% pure copper core
• Class A+ shielding efficiency (>110 dB)
• Triple shielding (Trishield): aluminum foil + aluminum braid + second aluminum foil
• 80% braid coverage
• Physically foamed dielectric for lower attenuation
• Manufactured under strict quality control processes
• Dca certified
• Available in 100 m reels

Technical Specifications:

• Frequency Range: 5 - 3000 MHz
• Core: 1.02 mm pure copper
• Braid: Trishield 80%
• Cable Type: RG6
• Shielding: Aluminum foil bonded to dielectric / 80% aluminum braid / aluminum foil bonded to outer jacket
• Jacket: White PVC LSZH (Dca)
• Impedance: 75 Ohm
• Jacket Diameter: 6.7 mm
• CPR Rating: Dca
• Reel Length: 100 m

Attenuation (dB / 100m)

• • 55 MHz: 5.25 dB
• • 187 MHz: 9.35 dB
• • 450 MHz: 14.43 dB
• • 750 MHz: 17.50 dB
• • 2150 MHz: 29 dB
