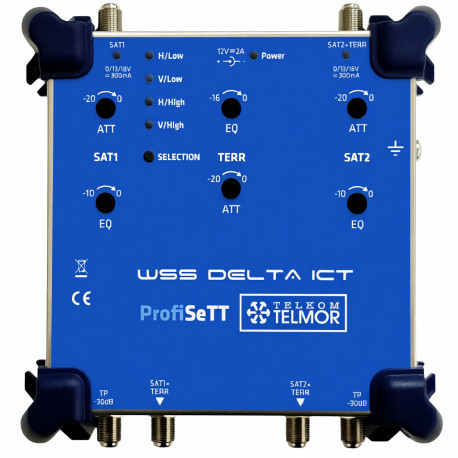

> >ICT Dual Line Amplifier
New ICT Dual Line Amplifier

ICT Dual Line Amplifier

TM-WSSDELTAICT

New product

Line amplifier for collective installations with two distribution cables.

Reference: TM-WSSDELTAICT

More details

120,00 € VAT excl.

Add to wishlist

Data sheet

Reception and ModulationVideo headend
Amplification, Power and FiltersAmplifier Multiband

More info

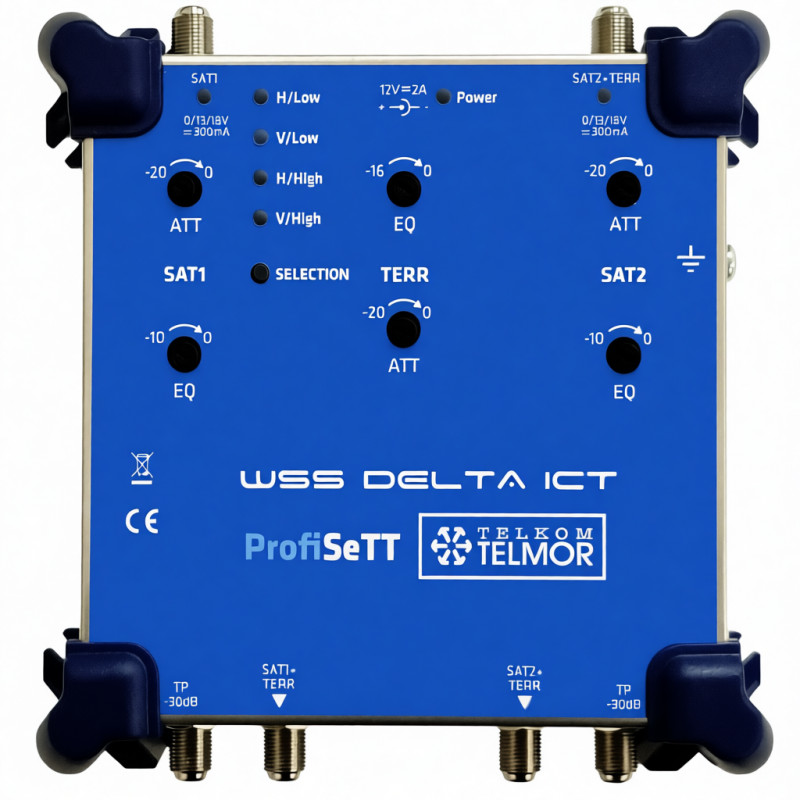

Line Amplifier for Collective Installations with Two Distribution Cables

  • WSS DELTA ICT is a line amplifier designed for collective installations with two distribution cables.
  • It features two combined signal inputs, SAT1 and SAT2+TERR, which are separated, amplified, and equalized to the appropriate level before being distributed to the two outputs: SAT1 + TERR and SAT2 + TERR.
  • Signal level and equalization adjustments are made using adjustable attenuators.
  • The WSS DELTA ICT amplifier can supply DC voltage and 22 kHz tone signals on its inputs to power LNBs or amplifiers, enabling its use as a headend amplifier.
  • Selection of the supply voltage and 22 kHz tone can be performed by pressing the front-panel buttons, indicated by LEDs.
  • The WSS DELTA ICT amplifier can amplify SAT and TERR signals up to 40 dB, with a maximum output level of 120 dBμV.

Features

  • Maximum output level: 120 dBμV.
  • TERR and SAT gain: 40 dB.
  • Adjustable supply voltage for each input.
  • Bypass function when power supply is not required.
  • Regulation of SAT and Terrestrial signal level and equalization.
  • Elegant design and compact size.
  • External 12 Vdc power supply.
  • High input isolation >30 dB.
  • Female "F" type connectors for input and output.
  • Test output (-30 dB) on each output.
  • Can be used as a headend amplifier.

Accessories

Download

Amp DELTAICT Datasheet

Download (330.18k)
