> >Terr+SAT Multiband Amplifier
New Terr+SAT Multiband Amplifier

Terr+SAT Multiband Amplifier

TM-WSSDELTASAT

New product

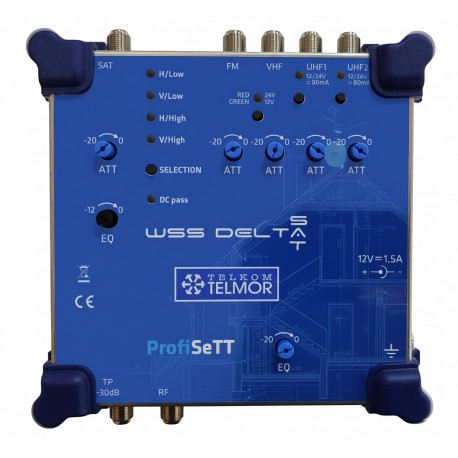

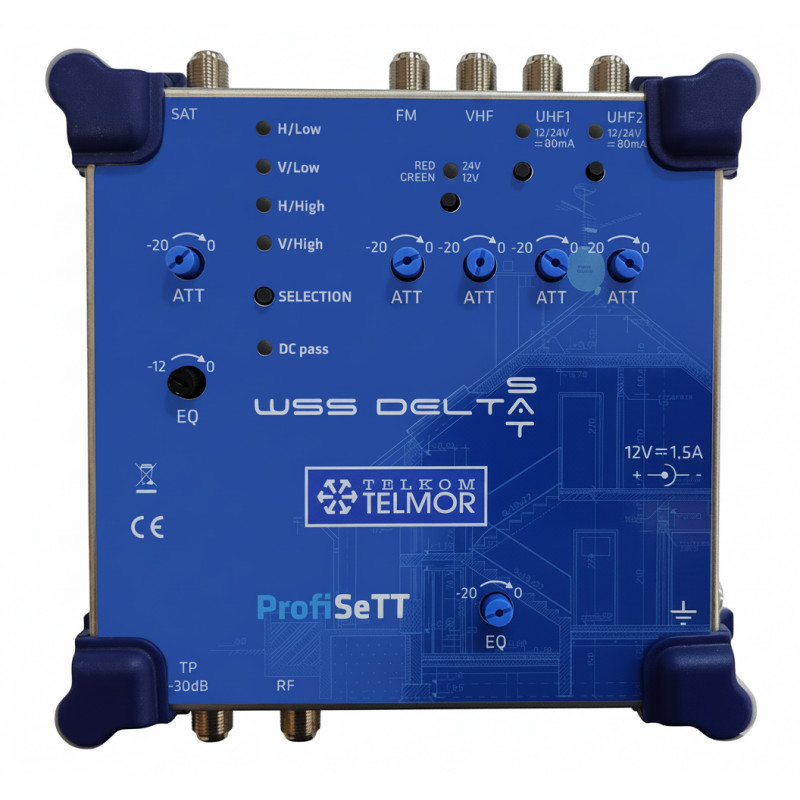

Multi-band amplifier with 5 inputs: FM, VHF, UHF1, UHF2, and SAT(IF).

Reference: TM-WSSDELTASAT

More details

111,00 € VAT excl.

Add to wishlist

Data sheet

Reception and ModulationVideo headend
Amplification, Power and FiltersAmplifier Multiband

More info

Multi-band Amplifier with 5 Inputs

  • The WSS Delta SAT is a multi-band amplifier with 5 inputs: FM, VHF, UHF1, UHF2, and SAT(IF). Signals received at the inputs are amplified, equalized, and combined for distribution through the installation’s coaxial network.
  • The WSS DELTA SAT amplifier can power an external UHF antenna preamplifier with +12V/+24V output voltages. It features independent gain and equalization control for each input path.
  • The SAT input allows connection and control of an LNB converter, enabling selection of the LNB supply voltage (13 V or 18 V) and generation of a 22 kHz tone.
  • In addition, the amplifier includes a “DC pass” mode, which allows control of the LNB from the output port by sending 13V/18V voltage signals, 22 kHz tone, or DiSEqC commands via a satellite receiver.
  • The WSS DELTA SAT amplifier is designed for collective or individual antenna installations to amplify digital terrestrial television signals (DVB-T2), FM/DAB radio, and satellite (IF) signals.

Features

  • 5 inputs: 2xUHF, VHF, FM, SAT
  • Dual UHF input for installations requiring signal reception from different directions
  • Integrated SAW 5G filter
  • High gain: UHF: 35dB / VHF: 35dB / FM: 25dB / SAT: 40dB
  • High output level: 117 dBμV
  • Level adjustment on all inputs
  • Power supply for active antennas and/or mast amplifiers: 12V or 24V
  • LNB power supply: 13 Vdc, 18 Vdc, 0-22 kHz, DiSEqC
  • High isolation between inputs
  • Output gain and equalization adjustment
  • F-type female connectors
  • High shielding level
  • Product from the Profi SETT line

Accessories

Download

WSS DeltaSAT Datasheet

Download (141.04k)
