> >Programmable Amplifier 6E+SAT 32 FILTERS
New Programmable Amplifier 6E+SAT 32 FILTERS

Programmable Amplifier 6E+SAT 32 FILTERS

TM-WWKALPHA+SAT

New product

Programmable digital processor for terrestrial channels, integrating a SAT signal amplifier that is mixed with terrestrial signals for subsequent distribution via the coaxial network.

Reference: TM-WWKALPHA+SAT

More details

199,00 € VAT excl.

Add to wishlist

Data sheet

Reception and ModulationVideo headend
Amplification, Power and FiltersAmplifier Multiband

More info

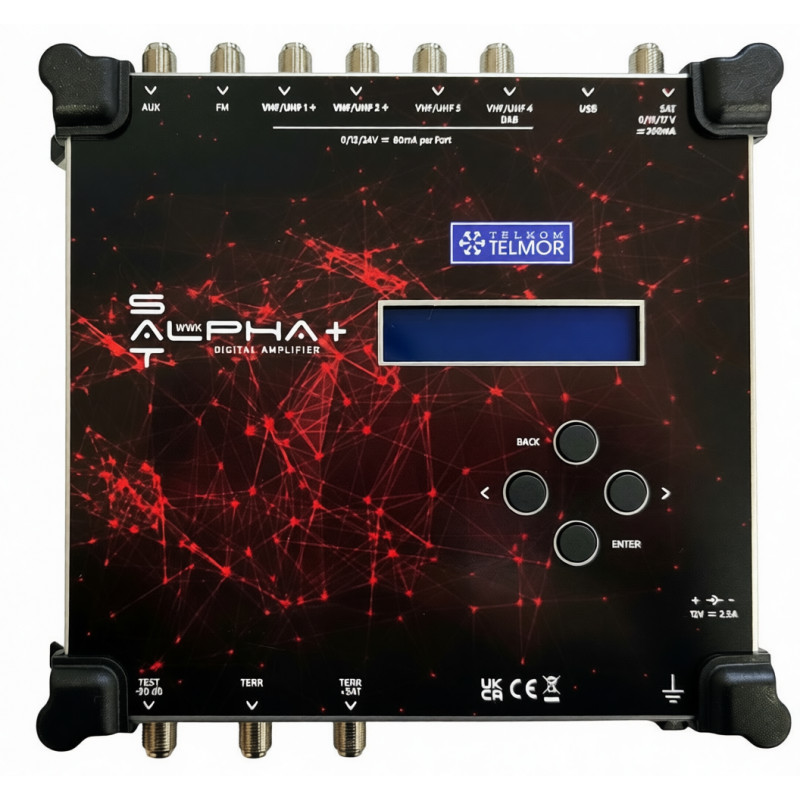

WWK ALPHA+SAT. Programmable Digital Signal Processor

  • The WWK ALPHA+SAT amplifier combines filtering, conversion, level equalization, and amplification in a highly compact unit designed for large-scale TV distribution networks in apartment complexes, hotels, hospitals, and similar installations, delivering excellent TV signal quality.
  • 32 high-selectivity filters
  • High gain + CAG (Controlled Automatic Gain)
  • Protection against unwanted signals (LTE, 5G)
  • Optimal output signals with complete suppression of interference
  • The WWK ALPHA+SAT amplifier offers high output levels: 120 dBμV for terrestrial and 118 dBμV for SAT.
  • Each DVB-T/T2 signal can be individually configured by desired input and output frequency, as well as output level.
  • Dynamic power measurement capability: Monitor output levels at selected frequencies in real time.
  • Parameter configuration and adjustment are performed via a local keypad and displayed on a large 2x16 character VFD screen.
  • Includes optional filtering of LTE channels in the 700 MHz and 800 MHz bands, and the ability to power connected antenna preamplifiers via VHF/UHF ports (1 to 4).
  • The -30 dB test point allows you to connect any signal meter or use it as an ideal signal source for optical distribution systems — no additional attenuators required.
  • External power supply included.

Features

  • Digital signal processor
  • 7 antenna inputs: 1xFM / 3xVHF/UHF / 1xVHF/UHF-DAB / 1xSAT / 1xAUX
  • Flex Matrix with 32 filters enabling individual channel processing to any output channel.
  • Real-time, per-multiplex CAG (Controlled Automatic Gain)
  • Maximum output level: 120 dBμV TERR and 118 dBμV SAT
  • >35 dB adjacent channel rejection
  • VHF/UHF channel conversion
  • Selectable LTE rejection filters for 700 MHz (5G) and 800 MHz (4G) bands
  • Switchable remote power supply: 0/12/24 VDC for preamplifiers
  • LNB power supply: 14/18 Vdc and 0/22 kHz
  • Automatic output level equalization
  • Equalization to compensate for coaxial cable slope
  • Individual output level adjustment
  • Input signal strength measurement
  • Integrated European channel plan
  • Integrated protection against overvoltage and short circuits
  • Scanner function (Auto-configurable)
  • AUX port for connecting modulators or headends
  • 2 outputs: 1xTERR / 1xTERR+SAT
  • The -30 dB test point enables connection of any signal meter or serves as an ideal signal source for optical distribution systems
  • USB port for exporting and importing configurations

Accessories

Download

WSS DeltaSAT Datasheet

Download (141.04k)
