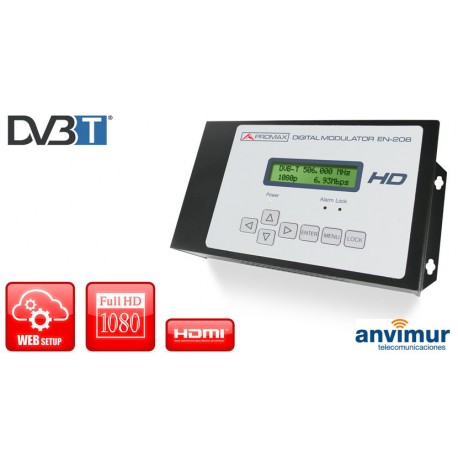

Digital HD modulator HDMI-DVB-T 206 LITE

012-EN206LITE

New product

DVB-T (TDT) HD modulator.

Sends HDMI high definition audio / video signal from TV satellite receivers, closed-circuit television cameras (CCTV) or video players to a TV which uses DVB-T Digital Terrestrial Television standard.

HDMI and CVBS inputs

can be set via the keyboard and display built on the modulator.

More details

395,00 € VAT excl.

Add to wishlist

Data sheet

Reception and ModulationModulator

More info

Digital Multimedia distribution within your home or multi-storey building.

576i, 480p, or 480i SD video and audio is sent and distributed through your home RF coaxial network to all TV sets in your home or Multi-storey Buildings, University Campus, Healthcare, Hospitality, Military installations, Digital Signage, etc.
SDShare RF output signal is easily combined with off-air digital TV programs.

  • CVBS SD input
  • YPBPR SD input
  • S-VIDEO SD input
  • MPEG-2 encoder DVB-T modulator
  • Remote control IR extender
  • web set-up

SPECIFICATIONS EN-206 Lite

INPUTSHDMI, CVBS
HDMI INPUT
  Video encoding
  Video resolutions

  Audio encoding
  Audio bit rate

MPEG-4 H.264
1920x1080 (30p/25p), 1280x720 (50/59,94p/60p),
720x576 (25p), 720x480 (30p/60p)

MPEG-1 Layer II
64, 96, 128, 192, 256, 320 kbps

CVBS INPUT
  Resolutions
  Encoding


720x576 25p/50p (PAL), 720x480 30p/60p (NTSC)
MPEG-4 H.264

MODULATIONDVB-T COFDM
MANAGEMENTLCD + control buttons

Accessories

Download

Datasheet

Download (256.04k)
