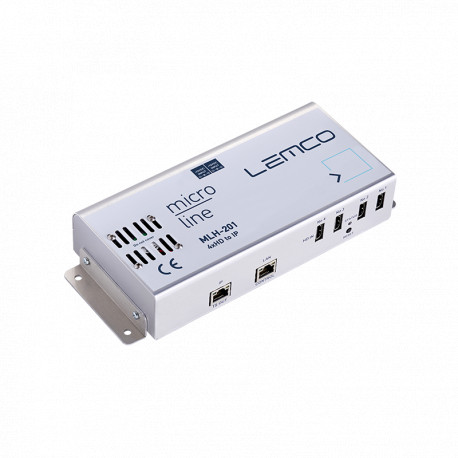

4 HDMI to IP
LEM-MLH-201
New product

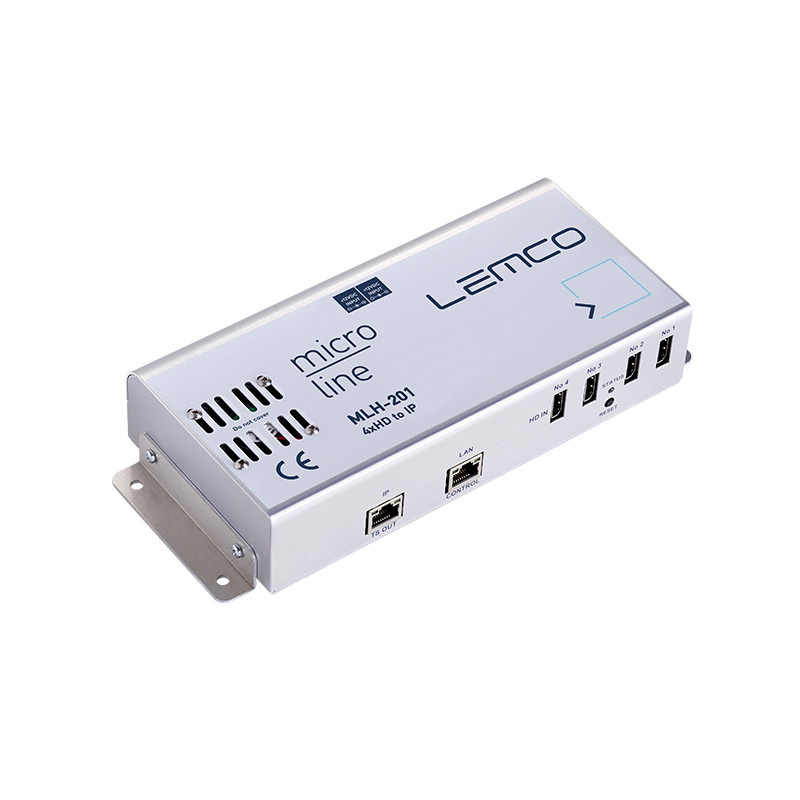

Lemco MLH-201 Encoder — 4x HDMI to IP
✅ Professional H.264 real-time streaming
Converts up to 4 Full HD HDMI signals into IP transport streams with MPEG-4 AVC / H.264 High Profile encoding. Simultaneous MPTS/SPTS output via UDP/RTP Multicast or Unicast at 1 Gbit.
Reference: LEM-MLH-201
This product is no longer in stock
Data sheet
| Equipamiento Lemco | MODULADORES |
More info
Lemco MLH-201 4x HDMI to IP Encoder
Professional device for encoding HDMI signals to IP transport stream. Supports up to 4 simultaneous high-definition inputs with high-performance H.264 encoding.
Input Specifications
| HD Inputs | 4 x HDMI inputs |
| Video Coding | MPEG-4 AVC / H.264 High Profile 4.0 |
| Input Resolution | Up to 1920 x 1080 - 50/60p & i |
| Output Resolution | Up to 1920 x 1080 - 30p |
| HDCP Support | Yes, version 1.4 |
Audio Specifications
| Audio | Embedded HD |
| Standard | MPEG-1 Layer II |
| Audio Bit Rate | 64, 96, 128, 192, 256, 320 Kbps |
| Formats | MPEG2, AAC, AC3 |
H.264 Encoder
| Standard | MPEG-4 AVC / H.264 |
| Bit Rate | 1 – 19 Mbps adjustable |
| Configurable Parameters | Service Name, Service ID |
| LCN Processing | Yes |
Transport Stream Processing
| Services | User selection by service names |
| Automatic Regeneration | PAT, CAT, SDT, PMTs, EITs tables |
| NIT/SDT | Pass-through, Custom, Automatic |
| PCR | Re-stamping |
| LCN Support | Yes |
IP Streaming — TS Output
| Protocol | UDP / RTP (Multicast / Unicast) |
| Speed | 1 Gbit (480 Mbps in IP-only mode) |
| IGMP Support | Yes, v2, v3 |
| Stream Type | MPTS (up to 4 TS) / SPTS (up to 4 HD programs) |
| Max. Bitrate | 480 Mbps |
Connectivity & Management
| Programming Interface | Embedded webserver |
| Ethernet | 10/100 Mbps |
| Connector | RJ45 |
| Browser Compatibility | Chrome, Firefox, Safari, Opera, Edge, etc. (must support HTML5) |
General Specifications
| Power Supply | 2 x +12V DC, 2A max. |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to +70°C |
| Humidity | Up to 90% |
| Dimensions | 235 x 115 x 48 mm |
| Weight | 0.45 Kg |
