Sale!

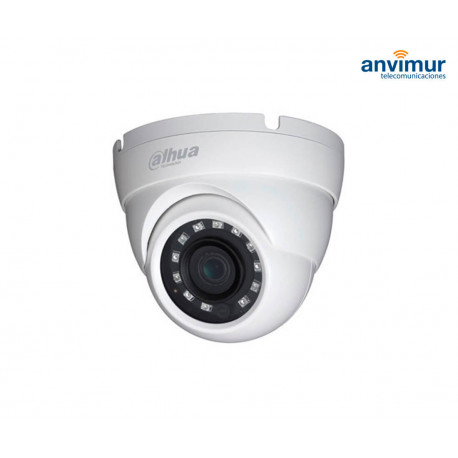

Eyeball Camera - 1080P to 25IPS - HDCVI 4in1 - 2MP
018-HAC-HDW1200M
New product
4 in 1 camera. Support HDCVI, AHD, HDTVI y CVBS. Transmission 1080P for 300m UTP cable.
1/2.7 2MP CMOS Sensor | Megapixel Resolution up to 1080P to 25IPS | IP67 protection | DC12v power.
Data sheet
| Security Cameras | Cámaras |
More info
Eyeball Camera - 1080P to 25IPS - HDCVI 4in1 - 2MP
Features
- Megapixel Resolution up to 1080P at 25IPS.
- 4 in 1 camera. Supports HDCVI, AHD, HDTVI and CVBS. The four formats can be switched through the OSD menu or through the UTC controller.
- Installable to wall or ceiling (3 axes).
- OSD menu accessible from the DVR.
- No latency or interference up to 800m via Coaxial 75-3.
- 1080P transmission up to 300m via UTP cable.
Specifications
| SENSOR | 1/2.7 2MP CMOS |
| MAX. RESOLUTION / IPS | 1080P@25IPS |
| COMMUTATION | Day - Night with ICR Filter |
| MIN. ILLUMINATION | 0.02Lux (Color) / 0Lux (B/N) con LEDs |
| OPTICS | Fixed of 2.8mm (103º), F1.85 |
| LEDs IR | 12 LEDs Smart IR (Hasta 20m) |
| TECHNOLOGY | HDCVI (Coaxial o UTP) en FullHD |
| CAMERA FUNCTIONS | DWDR, AGC, BLC, HLC, 2DNR |
| VIDEO OUTPUT | BNC HDCVI, TVI, AHD o CVBS switchable |
| TRANSMISSION DISTANCE | Up to 800m via Coaxial 75-3 (RG-59) |
| POWER/ CONSUMPTION | 12Vdc (Max 3.2W) |
| TEMPERATURE | De -40ºC a +60ºC (90% HR) |
| PROTECTION | IP67 |
| DIMENSIONS / WEIGHT | 97mm (Diam.) x 79.3mm / 0.25Kg |
