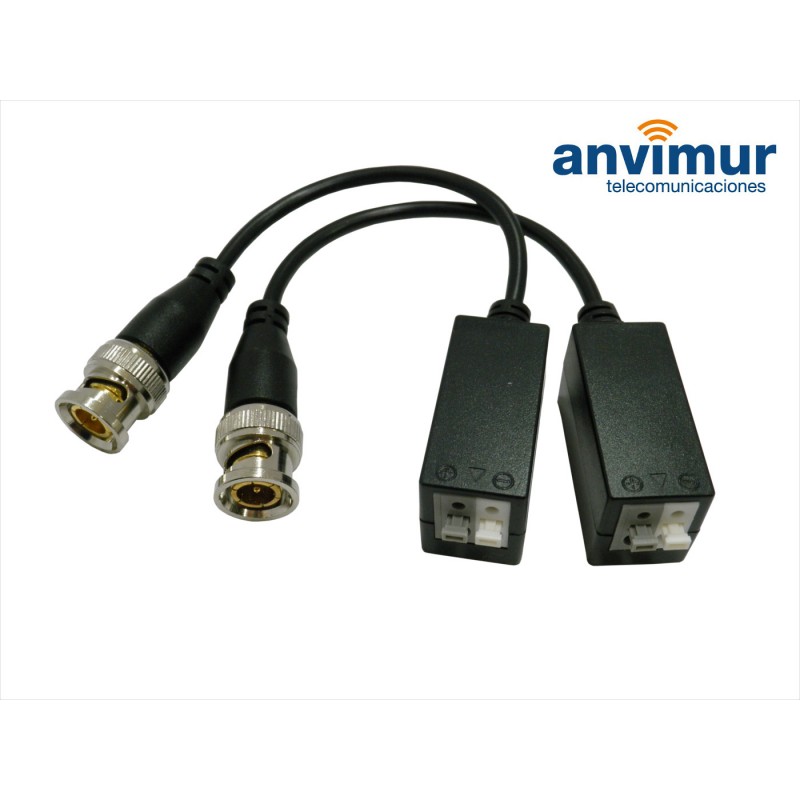

Passive HD Balun (Transceiver), 1 channel, 2 Unid.

114PUTP111

New product

Passive BALUN (transceiver) for HD video signal via twisted pair

Optimized for HD video: HDTVI / HDCVI / AHD

BNC connector to 2-pin UTP

up to 400m range

2 units (transmitter / receiver)

More details

4,00 €

Add to wishlist

Data sheet

Security CamerasAccesorios

More info

  • Balun (Transceiver)
  • Optimized for HD video: HDTVI / HDCVI / AHD
  • 1 channel
  • Passive
  • BNC/UTP 2 pins
  • Video
  • Max range 250/250 m (720p/1080p HDTVI), 400/250 m (720p/1080p HDCVI) y 350/200 m (720p/1080p AHD)
  • 2 units (transmitter and receiver)

Característica

Valor

Propiedades

Señal de transmisón

1 channel

Transmission Distance

HDCVI 720P: 400m/1080P:250m

HDTVI 720P/1080P:250m

AHD 720P: 350m/1080P:200m

Category Type

UTP CAT5/5E/6

Video Transmission Properties an port

Coaxial Video Connector

BNC-M

Twisted-pair Video Connector

Push-Terminal

Compatible Format

HDCVI/HDTVI/AHD

Resolution

720P/1080P

Anti-interference

>60db

Protection

ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per:IEC61000-4-2

Coaxial Cable Connector

2KV(Common-code) Per: IEC1000-4-5

UTP Cable Connector

2KV(different-code),4KV(common-code), Per: IEC1000-4-5

Impedance

BNC Male

75 ohms

UTP Cable

100 ohms

Physical properties

Dimension (L*W*H)

55mmx16mmx19mm

Shell

ABS

Color

Black

Weight

22.6 G

Stability

MTBF

>10000H

Environmental

Operating Temperature

-10-55ºC

Storage Temperature

-20-70ºC

Humidity

0-95% (non-condensing)
