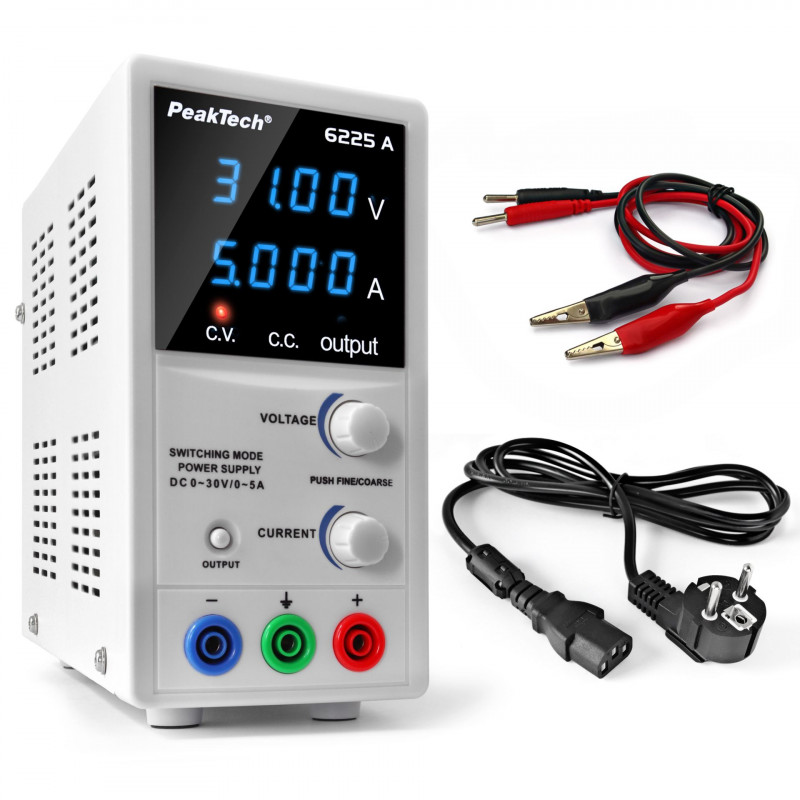

PeakTech P6225A – Digital DC Power Supply 0-30V/0-5A

This laboratory power supply offers a controllable voltage output of 0-30V or 0-5A DC. The current and voltage can be adjusted using the digital potentiometers, making it possible to set the values even with the output terminals turned off. By pressing the rotary control for current or voltage, the adjustment resolution can be changed from 10mA to 100mA or from 10mV to 1V. To ensure reliable measurement, there is a button on the front of the PeakTech 6225A to turn the voltage output on and off in a controlled manner. The display also shows when the output is active. The CV and CC functions are also notable, allowing for constant voltage and current values to be set, remaining constant even when a load is connected. All these features make the PeakTech 6225A a valuable companion for any electronics hobbyist or specialist.

Features

• Blue LED display showing output voltage and current values
• High efficiency (>85%)
• Low ripple and low noise
• Protection against short circuits, overload, and excessive temperature
• Adjustable voltage range of 1-30 V
• Safety: EN 61010-1
• Accessories: power cable, manual

Specifications
