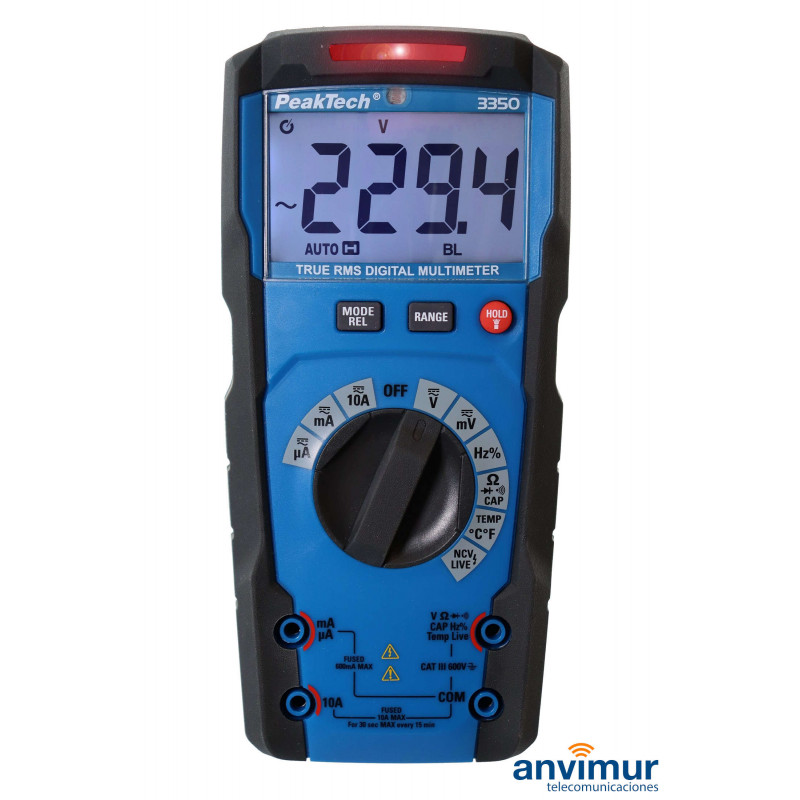

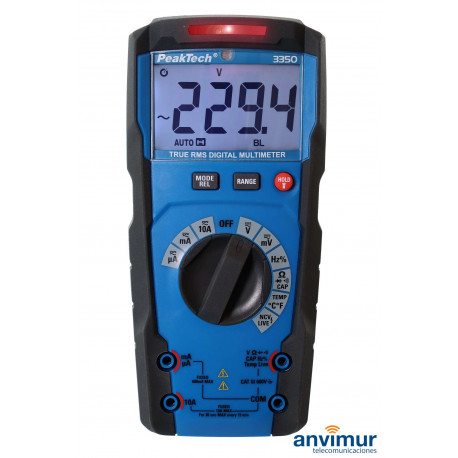

PeakTech P3350 – Digital TrueRMS Multimeter 6000 Counts. Auto-Ranging

The PeakTech 3350, designed for industry, simplifies daily tasks with various useful functions. Its LCD screen features automatic backlighting in dark environments, complemented by an LED flashlight on the back to illuminate the work area. An LED above the display visually indicates the active function: green for continuity testing, red in the presence of voltage in NCV mode, yellow when measuring large capacities, and flashing red in live phase test mode. In addition to standard functions such as current and voltage measurement (True RMS), capacitance, resistance, frequency, diode testing, and continuity, the device offers temperature measurements, non-contact voltage testing, and phase testing. With relative value modes and data hold, it ensures precise measurements. The double-insulated casing with rubber coating, a tilt stand, and the ability to replace batteries and fuses highlight its features.

A TrueRMS voltmeter is capable of accurately measuring the effective value of an electrical signal, even if the waveform is complex or non-sinusoidal, ensuring accurate measurements regardless of the signal shape.

Features

• TrueRMS measurements up to 600 V and currents up to 10 A AC/DC
• 6000-count LCD display with automatic backlighting
• Multicolor warning LED for various functions
• Auto-range selection
• Integrated LED flashlight to illuminate the work area
• Automatic shutdown and battery status display
• Safety: EN 61010-1; CAT III 600 V
• Accessories: bag, test leads, temperature sensor, temperature adapter, batteries, and user manual

This product complies with the requirements of the following EU directives for CE compliance: 2014/30/EU (Electromagnetic Compatibility), 2014/35/EU (Low Voltage), 2011/65/EU (RoHS).
