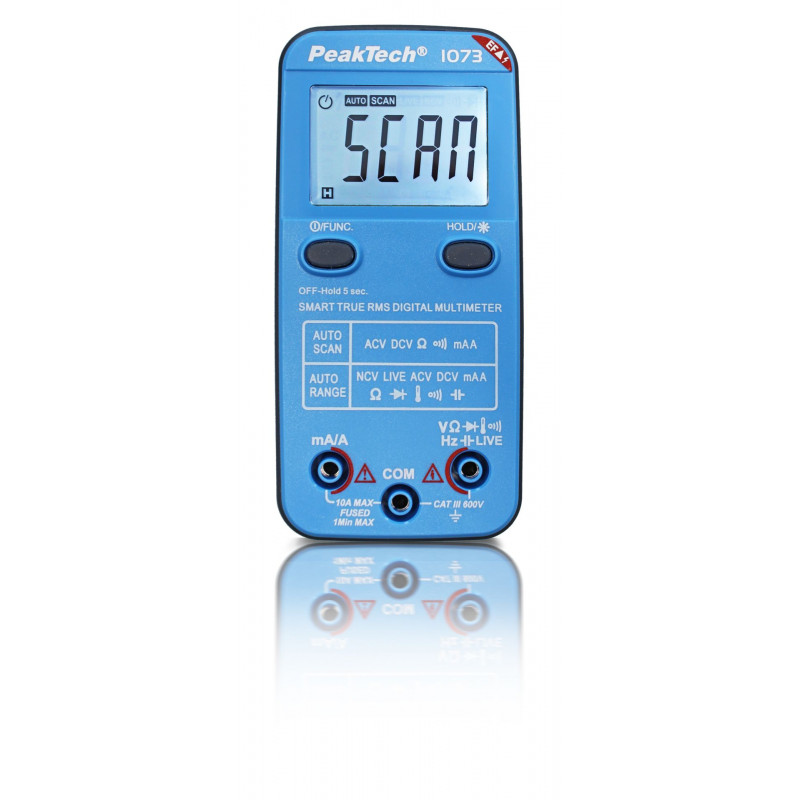

PeakTech P1073 – 600 V AC/DC Smart Multimeter with NCV Detector

The PeakTech P1073 is a "smart" digital multimeter that combines cutting-edge technology with an impressive range of features in a compact design. It measures voltages up to 600 V AC/DC, is CAT III certified, and features True RMS for accurate measurements on varying voltages. The integrated non-contact voltage (NCV) detector enables voltage detection without touching conductors, while the LIVE-Test function reliably identifies live and neutral wires. Thanks to automatic function selection, there’s no need for a rotary switch—the multimeter automatically detects the measured parameter and configures itself accordingly. The 4000-count LCD display with blue backlight ensures clear readability of measured values and turns red when measurement ranges are exceeded or when the NCV detector senses voltage. In addition to standard measurements of voltage, current (AC & DC), resistance, continuity, diode test, and temperature, this multimeter also offers capacitance and frequency measurements.

Technical Specifications

• True RMS smart multimeter with auto-ranging function
• Manual function selection via button press
• 3 3/4-digit LCD display with 4000 counts
• Blue/red backlight and LED indicators
• Continuity test and diode test function
• Capacitance, temperature, and frequency measurement
• LIVE-Test and NCV voltage detector
• Auto power-off and battery status indicator
• Rugged ABS plastic housing
• Safety: EN 61010-1, CAT III 600 V
• Accessories: Test leads, thermocouple, batteries, and instruction manual
