New Sale!

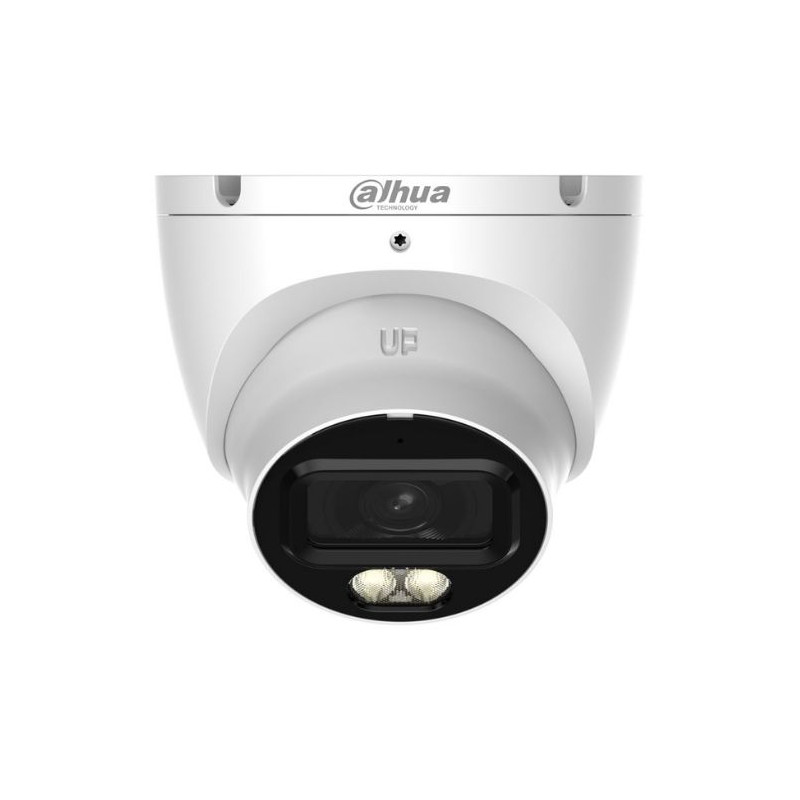

5MP Smart Dual Light 4-in-1 Turret Camera
018-HAC-HDW1500TLM-IL-A-0280B-S3
New product
Security camera with smart dual lighting (IR + warm light up to 30 m), fixed 2.8 mm lens, WDR, and 3DNR for clear images in low-light conditions.
IP67, metal housing, and built-in microphone. Ideal for intelligent indoor and outdoor monitoring.
Reference: 018-HAC-HDW1500TLM-IL-A-0280B-S3
This product is no longer in stock
Data sheet
| Security Cameras | Cámaras |
More info
5MP Smart Dual Light Turret Camera – Dahua Lite Series
Features
- Turret 4-in-1 Dahua Lite Series
- 5MP@25ips
- ICR, 0.05/0.005 lux, IR and warm light up to 30 m
- Fixed 2.8 mm lens
- Digital WDR, 3DNR
- Smart dual lighting and Super Adapt
- Integrated microphone
- IP67, metal housing
- 12VDC
Specifications
| Parameter | Value |
|---|---|
| Brand | Dahua |
| Series | Lite |
| Type | Turret 4-in-1 |
| Model | HAC-HDW1500TLM-IL-A-0280B-S3-D |
| Sensor | CMOS 5 MP (2880 × 1620) |
| ICR Filter / Day-Night | ICR; auto; color / B/W |
| Minimum Illumination | 0.05 lux (color); 0.005 lux (B/W); 0 lux with illuminator |
| Illumination & Range | IR and white light up to 30 m |
| Illuminators | 2 Multi-core LEDs |
| Lens | Fixed 2.8 mm |
| Field of View | H 113.3° / V 62.1° / D 134.3° |
| Video Resolutions | 5MP (2880×1620), 4MP (2560×1440), 1080P (1920×1080), 960H |
| Frames per Second | 5MP@25 fps (PAL); 5MP@20 fps (NTSC) |
| Video Output | Switchable CVI/TVI/AHD/CVBS (DIP switch) |
| Image Processing | DWDR, BLC, HLC, 3DNR |
| Automatic Controls | Auto white balance; auto gain control |
| Detection & Privacy | Motion detection; privacy masks (8 areas) |
| Illumination Modes | IR, WL, IR&WL Smart modes |
| Smart Adjustment | Super Adapt (automatic parameter tuning) |
| Audio | Integrated microphone; audio over coaxial (CVI, TVI) |
| Communication Interface | BNC port with CVI/TVI/AHD/CVBS selection (DIP switch) |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max. 4.3 W (WLED on) |
| Operating Temperature | –40 °C to +60 °C |
| Relative Humidity | <95% non-condensing |
| Protection Rating | IP67 |
| Housing | Metal |
| Installation | Wall, ceiling, or pole |
| Dimensions | Φ94.0 × 85.7 mm |
| Net / Gross Weight | 0.32 kg / 0.42 kg |
| 3AXIS | Pan 0°~360°; Tilt 0°~78°; Rotation 0°~360° |
| Package Contents | 1 Camera |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032, EN 55035 |
