New Sale!

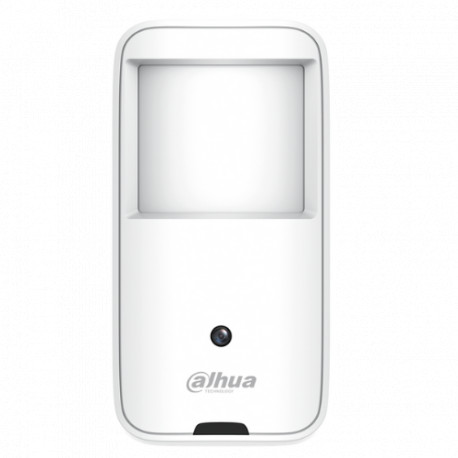

Hidden Camera in PIR Housing – HDCVI 2MP 1080P, 0.01 Lux @ F2.0, 2.8mm Lens, IR 10m
018-HAC-HUM3200A-0280B-S5
New product
Hidden camera integrated in PIR sensor, HDCVI 2MP (1080P), fixed 2.8mm lens, 0.01 Lux @ F2.0 sensitivity, IR up to 10 m. Perfect for discreet indoor surveillance.
Referencia: 018-HAC-HUM3200A-0280B-S5
This product is no longer in stock
Data sheet
| Security Cameras | Cámaras |
More info
Hidden Camera Integrated in PIR Sensor, HDCVI 2MP (1080P)
Features
- Resolution up to 1080P@25 FPS.
- Fixed 2.8 mm lens (105°×58°×118° H×V×D), F2.0.
- Video output options: HDCVI, AHD, HDTVI, and CVBS via single BNC port.
- Super Adapt: Camera automatically adjusts parameters for optimal performance.
- OSD menu accessible via DVR.
- Power / Consumption: 12V DC (Max 3.3 W with IR on).
Specifications
| Parameter | Value |
|---|---|
| Image Sensor | 2 MP CMOS |
| Maximum Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s – 1/100,000 s; NTSC: 1/30 s – 1/100,000 s |
| Minimum Illumination | 0.01 lux @ F2.0 (B/W, 30 IRE); 0 lux with IR on |
| Signal-to-Noise Ratio | > 65 dB |
| IR Illumination Range | 10 m |
| IR Control | Automatic / Manual |
| Number of IR LEDs | 2 (IR LEDs) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens Type | Fixed |
| Mount | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F2.0 |
| Field of View | H: 105°; V: 58°; D: 118° |
| Iris Type | Fixed |
| Minimum Focusing Distance | 0.5 m |
| DORI Distance (2.8 mm) | Detect: 42.1 m; Observe: 16.8 m; Recognize: 8.4 m; Identify: 4.2 m |
| ABF (Auto Back Focus) | Yes |
| Frame Rate | CVI: PAL 1080p@25fps, NTSC 1080p@30fps; AHD: PAL 1080p@25fps, NTSC 1080p@30fps; TVI: PAL 1080p@25fps, NTSC 1080p@30fps; CVBS: PAL 960H, NTSC 960H |
| Supported Resolutions | 1080p (1920×1080) |
| Day/Night | Color / B/W |
| Image Functions | BLC, DWDR, HLC |
| WDR | DWDR |
| White Balance | Auto / Area White Balance |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Yes |
| Privacy Masking | Up to 8 areas (rectangle) |
| Certifications | CE-LVD, CE-EMC, FCC |
| Video Output | BNC with selectable CVI/TVI/AHD/CVBS |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max. 3.3 W (IR on) |
| Operating Temperature | -40 °C ~ +60 °C (<95% RH, non-condensing) |
| Storage Temperature | -40 °C ~ +60 °C (<95% RH, non-condensing) |
| Protection Rating | — |
| Housing Material | Plastic |
| Dimensions | 61.7 × 58.1 × 119.7 mm |
| Net Weight | 0.12 kg |
| Gross Weight | 0.19 kg |
| Installation | Wall Mount |
