New Sale! 5MP Outdoor IP Turret Camera with 2.8mm Fixed Lens and 30 m IR

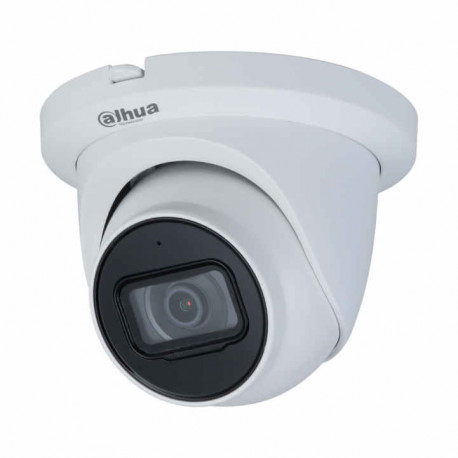

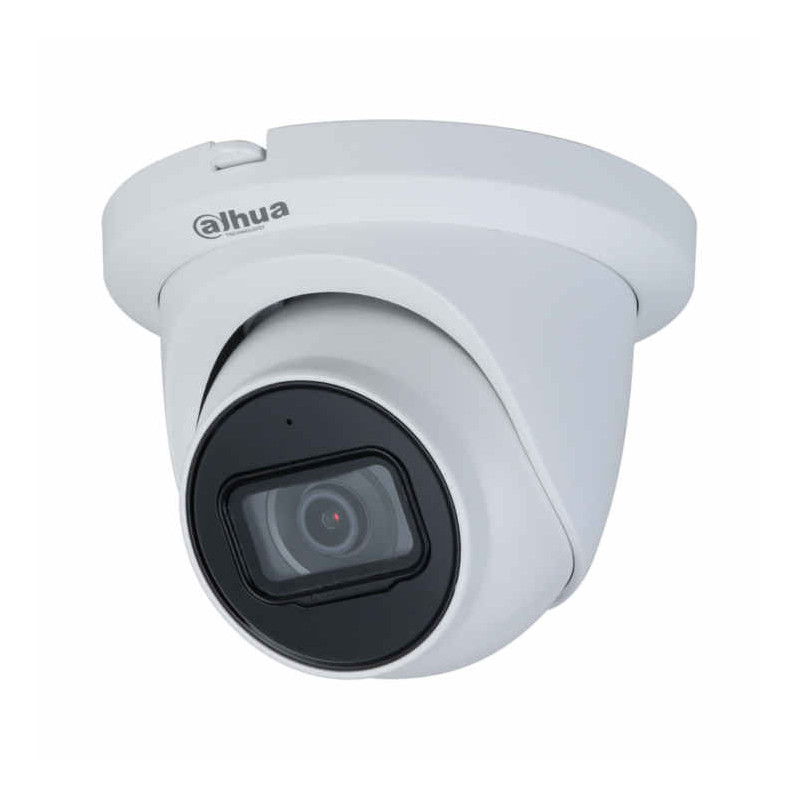

5MP Outdoor IP Turret Camera with 2.8mm Fixed Lens and 30 m IR

018-IPC-HDW2541TM-S-0280B-S2

New product

5MP Outdoor IP Dome Camera

Dahua Starlight 5MP IP Dome Camera – H.265+, Smart IR 30 m, Perimeter Protection, SMD Plus, and PoE

Reference: 018-IPC-HDW2541TM-S-0280B-S2

More details

This product is no longer in stock

95,16 € VAT excl.

Add to wishlist

Data sheet

Security CamerasCámaras

More info

Specifications

ParameterValue
Image SensorCMOS 1/2.7″
Max Resolution2960 × 1688
ROM128 MB
RAM256 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3 s – 1/100,000 s
Minimum Illumination0.007 lux @ F1.6 (Color, 30 IRE) / 0.0007 lux @ F1.6 (B/W, 30 IRE) / 0 lux (IR on)
Signal-to-Noise Ratio> 56 dB
IR Illumination RangeUp to 30 m (IR)
IR LED ControlAuto / Manual
Number of IR LEDs1 (IR LED)
Pan/Tilt/Rotation RangePan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°
Lens TypeFixed Focal Length
Lens MountM12
Focal Length2.8 mm
Max ApertureF1.6
Field of View2.8 mm: H: 111° / V: 58° / D: 132°
Iris ControlFixed
Minimum Focus Distance2.8 mm: 1.1 m
DORI Distance (2.8 mm)Detect: 63.6 m / Observe: 25.4 m / Recognize: 12.7 m / Identify: 6.4 m
IVS (Perimeter Protection)Intrusion and Fence Line Detection with precise vehicle/person classification
Smart SearchCompatible with Smart NVR for refined searches and event extraction
Video CompressionH.265, H.264, H.264H, H.264B, MJPEG (secondary stream only)
Smart CodecSmart H.265+, Smart H.264+
Frame RateMain: 2960×1668@1–20 fps / 2688×1520@1–25/30 fps; Sub: 704×576@1–25 fps / 704×480@1–30 fps
Stream Capacity2 Streams
Supported Resolutions2960×1668, 2880×1620, 2688×1520, 3M (2048×1536), 2304×1296, 1080p, 1.3M, 720p, D1, VGA, CIF
Bitrate ControlCBR / VBR
Video BitrateH.264: 32–8192 kbps / H.265: 12–8192 kbps
Day/Night ModeAuto (ICR) / Color / B/W
BLC / HLC / WDRBLC: Yes / HLC: Yes / WDR: 120 dB
White BalanceAuto, Natural, Street Lamp, Outdoor, Manual, Custom
Gain ControlAuto / Manual
Noise Reduction3DNR
Motion DetectionON/OFF (4 zones)
Region of Interest (ROI)Yes (4 zones)
Smart IlluminationYes
Image Rotation0°/90°/180°/270° (90°/270° up to 2688×1520)
MirrorYes
Privacy Masking4 zones
Integrated MicrophoneYes
Audio CompressionG.711a, G.711μ, PCM, G.726
Alarm EventsSD Missing, SD Full, SD Error, Network Disconnected, Unauthorized Access, Motion Detection, Video Tampering, Fence Line, Intrusion, Audio Detection, Voltage, SMD, Security
Network PortRJ-45 (10/100 Base-T)
Network ProtocolsIPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, SNMP, PPPoE, Bonjour, P2P
InteroperabilityONVIF (Profile S/G/T), CGI
Simultaneous Users20 (Total bandwidth: 48 Mbps)
StorageFTP, SFTP, MicroSD (up to 256 GB), NAS
Compatible BrowsersIE, Chrome, Firefox
Management SoftwareSmartPSS Lite, DSS, DMSS
Mobile AppiOS, Android
CybersecurityVideo/Firmware/Configuration Encryption, Trusted Boot and Execution, Account Lockout, IP/MAC Filtering, HTTPS, 802.1x, X.509 Certificates
CertificationsCE-LVD EN62368-1, CE-EMC 2014/30/UE, FCC Part 15, UL62368-1, CAN/CSA C22.2
Power Supply12 VDC / PoE (802.3af)
Power ConsumptionBase: 2.2 W (DC) / 2.9 W (PoE) – Max: 4.1 W (DC) / 5.0 W (PoE)
Operating Temperature–40 °C to +60 °C
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C
Storage Humidity≤95%
Protection RatingIP67
Housing MaterialInner Core: Metal / Cover: Metal / Decorative Ring: Plastic / Mounting Plate: Metal
Dimensions99.1 mm × Ø121.9 mm
Net / Gross Weight0.48 kg / 0.68 kg
