New Sale!

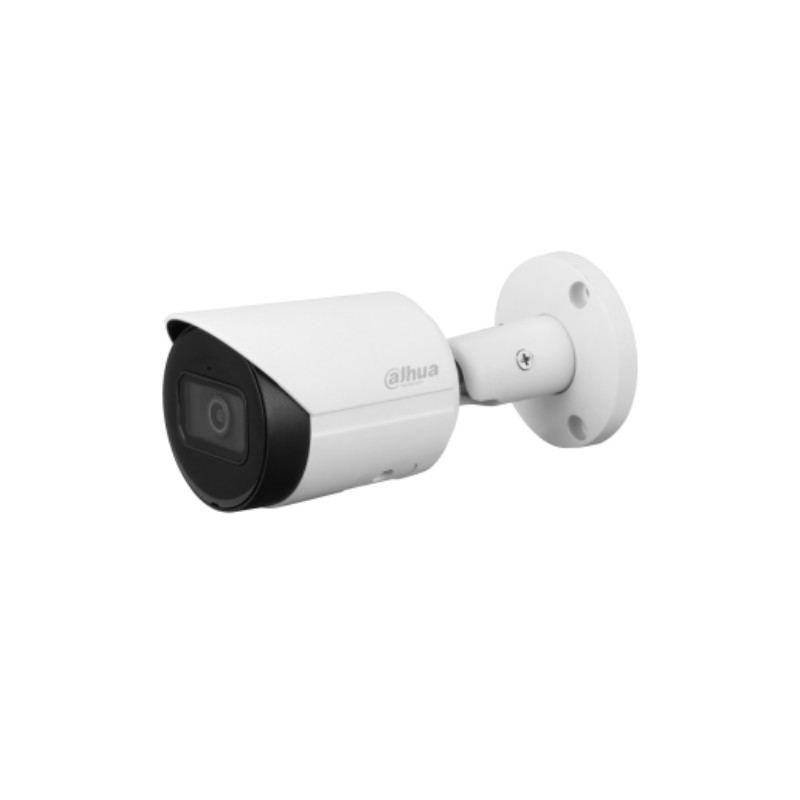

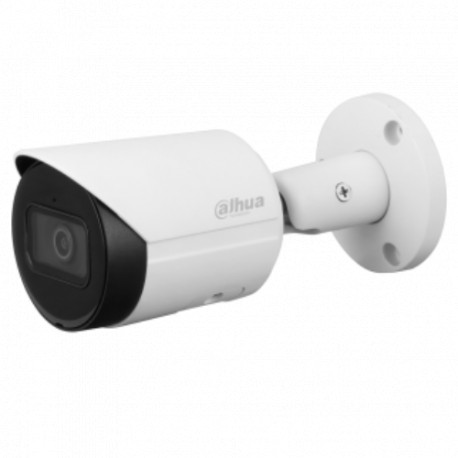

WizSense 5MP Outdoor Bullet Camera, 2.8mm
018-IPC-HFW2541S-S-0280B-S2
New product
5MP Outdoor IP Bullet Camera
Dahua WizSense 5MP IP Camera – H.265+, Smart IR 30 m, Perimeter Protection, SMD Plus, IP67, and PoE
Reference: 018-IPC-HFW2541S-S-0280B-S2
This product is no longer in stock
Data sheet
| Security Cameras | Cámaras |
More info
5MP Fixed Lens 2.8mm IR 30m IP Bullet Camera
Features
- Dahua WizSense IP Camera
- 5MP @ 20 fps, Smart H.265+
- ICR, 0.007 / 0.0007 lux, Smart IR up to 30 m
- Fixed 2.8 mm lens
- WDR 120 dB, 3D-NR, 4 ROI
- Perimeter protection
- Integrated microphone
- MicroSD slot, RJ45, ONVIF, IP67, 3AXIS, PoE
Specifications
| Parameter | Value |
|---|---|
| Image Sensor | CMOS 1/2.7″, 5 Megapixels |
| Video Compression Formats | Smart H.265+, Smart H.264+, H.265, H.264, MJPEG |
| Digital Resolution | 5MP (2960×1668), 4.6MP (2880×1620), 4MP (2688×1520), 3MP (2048×1536 / 2304×1296), 1080P (1920×1080), 1.3MP (1280×960), 720P (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240) |
| Stream 1 | 5MP (120 fps), 4.6MP (125/30 fps) |
| Stream 2 | D1 (1~25/30 fps) |
| Day/Night Mode | Mechanical ICR Filter |
| Smart IR | 1 IR LED, range up to 30 m |
| Minimum Illumination | 0.007 lux F1.6 (color), 0.0007 lux F1.6 (B/W), 0 lux with IR on |
| Optics | Fixed 2.8 mm |
| Field of View | H: 111° / V: 58° / D: 132° |
| Image Functions | BLC, HLC, WDR 120 dB, 3D-NR, Mirror |
| White Balance | 6 modes |
| Gain Control | Auto and Manual |
| Video Analytics | Videosensor (4 zones), ROI (4 regions), Privacy Mask (4 zones), Perimeter Protection (line crossing / intrusion with person/vehicle classification), SMD Plus |
| Microphone | Integrated |
| Storage | MicroSD up to 256 GB (not included) |
| Network Interface | RJ45 (10/100 Base-T) |
| Network Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour, P2P |
| Compatibility | ONVIF (Profile S/G/T), CGI, SDK, API |
| Simultaneous Users | Up to 20 |
| Remote Viewing | IE, Chrome, Firefox |
| Management Software | Smart PSS Lite, DSS, DMSS |
| Mobile Apps | iOS, Android |
| Power Supply | 12 V DC / PoE (802.3af) |
| Power Consumption | 4.1 W (12 V) / 5 W (PoE) |
| Storage Temperature | –40 °C ~ +60 °C |
| Operating Temperature | –40 °C ~ +60 °C |
| Relative Humidity | ≤ 95% |
| Protection Rating | IP67 |
| Housing | Metal |
| Dimensions | 70 × 70 × 166.2 mm |
| Net Weight | 480 g |
| Gross Weight | 590 g |
| 3AXIS Adjustment | PAN: 0°~360°, TILT: 0°~90°, Rotation: 0°~360° |
