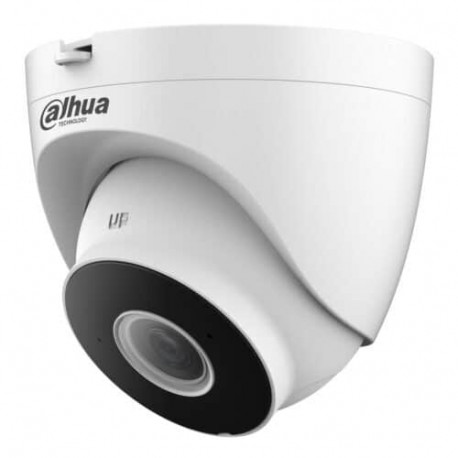

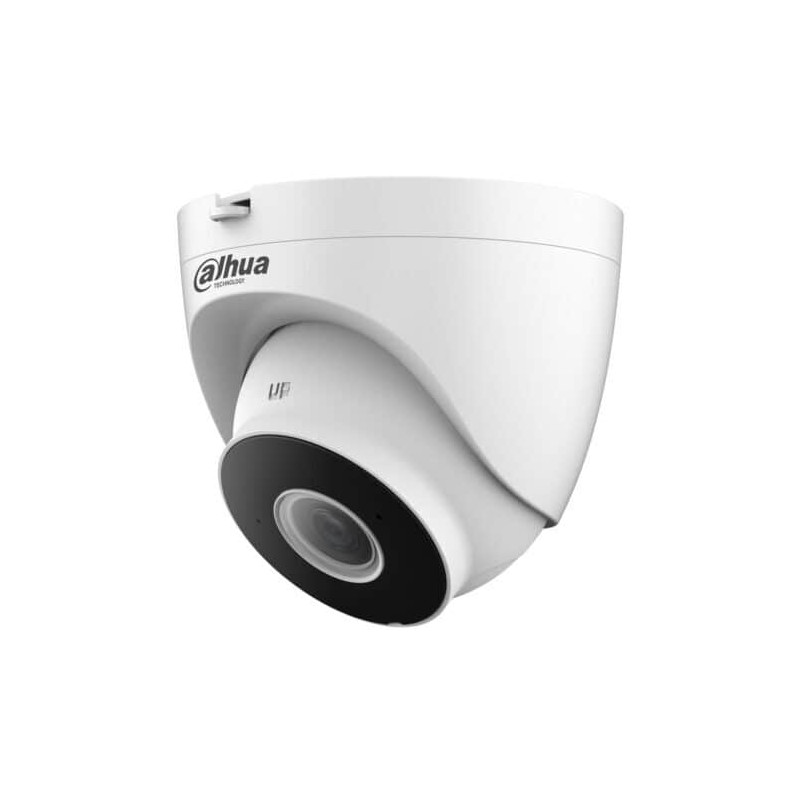

> >2MP Outdoor IP Turret WiFi Camera with 2.8mm Fixed Lens and 30 m IR
New Sale! 2MP Outdoor IP Turret WiFi Camera with 2.8mm Fixed Lens and 30 m IR

2MP Outdoor IP Turret WiFi Camera with 2.8mm Fixed Lens and 30 m IR

018-IPC-HDW1230DT-STW

New product

Dahua 2MP WiFi IP Turret Camera with Fixed 2.8 mm Lens and Night Vision up to 30 m.

Smart camera with a 2 MP sensor and H.265+ compression for maximum efficiency.

Intelligent night vision, H.265+, WDR, built-in microphone, MicroSD recording.

Reference: 018-IPC-HDW1230DT-STW

More details

This product is no longer in stock

69,88 € VAT excl.

Add to wishlist

Data sheet

Security CamerasCámaras

More info

2MP WiFi IP Turret Camera with Fixed 2.8mm Lens

Features

  • 2 MP CMOS image sensor with 1/3" size, low luminance, and high-definition imaging
  • Maximum output: 2 MP (1920 × 1080) at 25/30 fps
  • H.265 codec with high compression rate and ultra-low bit rate
  • Built-in IR LED with maximum illumination distance of 30 m
  • SMART H.264+/H.265+ with flexible encoding, suitable for diverse storage and bandwidth environments
  • DWDR, 3D NR, BLC, and digital watermarking, applicable to multiple monitoring scenarios
  • Anomaly detection: motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, and illegal access
  • Dual-antenna 2.4 GHz Wi-Fi with up to 120 m range in open areas
  • Supports MicroSD cards up to 256 GB, with built-in microphone and speaker
  • 12 V DC power supply
  • IP67 protection rating

Specifications

ParameterValue
Image SensorCMOS 1/3″
Maximum Resolution1920 (H) × 1080 (V)
ROM16 MB
RAM64 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual: 1/3 s – 1/100,000 s
Minimum Illumination0.025 lux at F2.0 (color, 30 IRE); 0.0025 lux at F2.0 (B/W, 30 IRE); 0 lux (IR on)
Signal-to-Noise Ratio> 56 dB
IR Illumination Range30 m (Built-in IR LED)
IR ControlAuto / Manual
Number of IR LEDs1 (IR LED)
Pan/Tilt/Rotation RangePan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens TypeFixed Focal Length
Lens MountM12
Focal Length2.8 mm
Maximum ApertureF2.0
Field of View (2.8 mm)H: 100°, V: 53°, D: 120°
Iris ControlFixed
Minimum Focus Distance0.6 m
DORI Distance (2.8 mm)Detect: 46.9 m; Observe: 18.8 m; Recognize: 9.4 m; Identify: 4.7 m
Video CompressionH.264B, H.264, H.264H, H.265
Smart CodecSmart H.265+, Smart H.264+
Frame RateMain: 1920×1080 (1–25/30 fps); Secondary: 704×576 (1–25 fps), 704×480 (1–30 fps)
Transmission Capacity2 streams
Supported Resolutions1080p, 960p, 720p
Bitrate ControlCBR / VBR
BitrateH.264: 24–4096 kbps; H.265: 9–4096 kbps
Day/Night ModeAuto (ICR) / Color / B/W
CLBYes
WDRDWDR
White BalanceAuto, Natural, Street Light, Outdoor, Manual, Regional
Gain ControlAuto
Noise Reduction3D NR
Motion DetectionON/OFF (4 zones)
Smart IlluminationYes
Image Rotation0°/180°
MirrorYes
Built-in MicrophoneYes
Built-in SpeakerYes
Audio CompressionG.711a, G.711Mu
Alarm EventsNo SD, SD Full, SD Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Audio Detection, Intensity Change, SMD (Human)
Network PortRJ-45 (10/100 Base-T)
Wi-FiIEEE802.11b/g/n 2.4 GHz (up to 120 m)
SDK and APIYes
CybersecurityVideo/Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, X.509 Certificates, HTTPS, Secure Boot, Execution and Update
Network ProtocolsIPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP
InteroperabilityONVIF (Profile S/T), CGI, P2P
Simultaneous UsersUp to 6 (Total 36 Mbps)
StorageMicroSD up to 256 GB
Compatible BrowsersIE, Chrome, Firefox
Management SoftwareSmart PSS, DSS, DMSS
Mobile AppsiOS, Android
Power Supply12 VDC
Power ConsumptionBasic: 1.9 W; Max (H.265+IR): 6.1 W
Operating Temperature-30°C to +60°C
Operating Humidity≤ 95%
Storage Temperature-30°C to +60°C
ProtectionIP67
Housing MaterialCore: Metal + Plastic; Cover: Plastic
DimensionsØ109.9 × 102.2 mm
Net Weight352 g
Gross Weight530 g

Accessories
