Armored Drop FTTH Cable spool, 2 fibres, Black
FO-ANFO2COREN-ARM
New product
Armored FTTH Drop cable, 2 Fibres G657.A2, Black, 1Km spool
LSZH thermoplastic Outside + Kevlar yarns + steel armored + 0.9mm tight buffer.
4.2~4.5 mm diameter.
Price per meter.
This FO cable its supplied in 1000 meters spools.
Data sheet
| FTTx Single Mode Fiber Optic Cable | Fiber Optic Drop Cable |
More info
Armored Drop FTTH Cable spool, 2 fibres, Black
Steel armored Optical Fibre spool 1Km in length, two G657.A2 fibers, ideal for direct installations from a distribution box to a subscriber socket panel; perfect for cabling through electric conduits or difficult places, it can be stapled to walls.

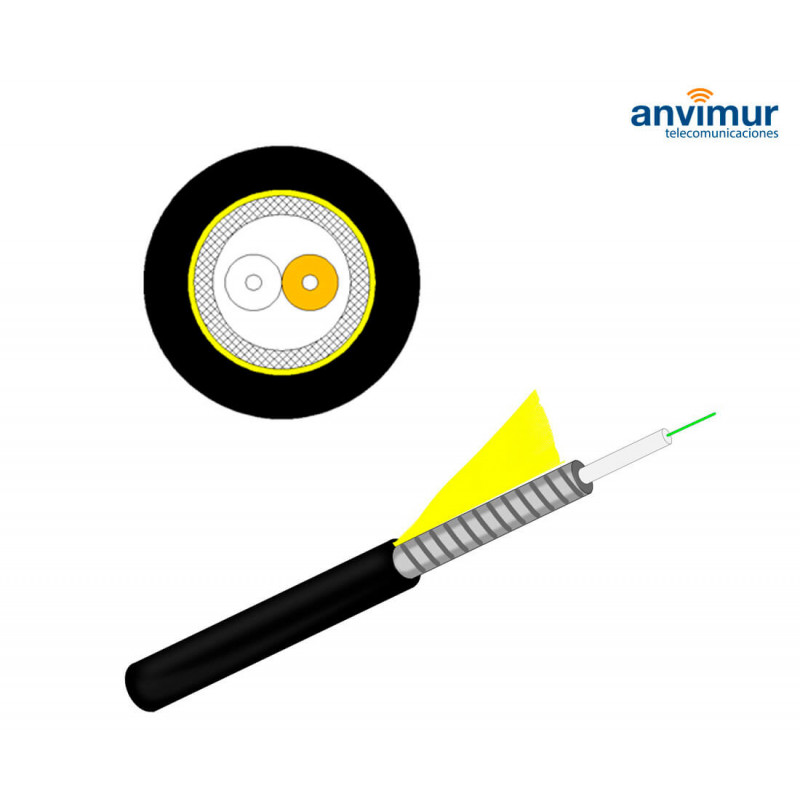

It has an exterior Thermoplastic LSZH (Low Smoke Zero Halogen) jacket, anti-rodent and strain resistant Kevlar yarns, a steel armored for greater mechanical and rodent protection; and a final layer with a 0.9 mm tight buffer. This assembly gives it a high resistance both to atmospheric and mechanical inclemencies (torsion, over-tensioning, pressure, etc.), in addition to providing excellent anti-rodent protection, With only 4.5 mm in diameter.
The high protection in all senses makes it especially suitable for outdoor use.
Fibre G657.A2 is especially suitable for FTTx network Access installations (high resistance to moisture and macro-curves).
Specifications
| No. of fibers | 2 Fiber |
| Outside diameter | Ø 4,5 mm |
| Material | LSZH, Kevlar, Steel. |
| Color | Black |
| Type | G657.A2 |
| Weight | 32 Kg |
| Meters | 1.000 metres |
| Box dimensions | 41 x 41 x 35 cm |
| Tensile strength (N) | 60 Newton |
WARNING
THIS FIBER OPTIC CABLE ARE PROVIDED AT 1000 METERS LENGTH SPOOLS.
