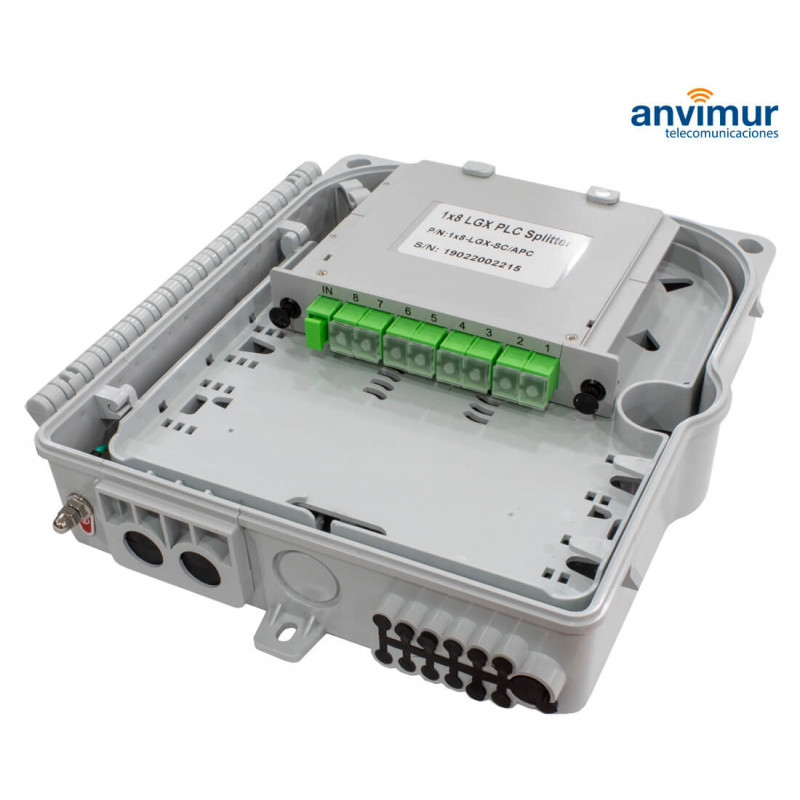

OTB 2+12 Ports and 12 Fusions LGX CASSETTE

FO-X08V

New product

Optical Terminal Box (OTB) Ports: 2+12 | Diameter: < 17mm | Fusions: 12 | Trays/Fusions: 1x12 | Splitter: 1:4/8 | Adapters: NO | Dimensions: 225x200x65 | IP55 | Application: Wall.

(Splitter NOT included)

More details

9,50 €

Add to wishlist

Data sheet

Fiber Optic DistributionDistribution box LGX Out/ind

More info

OTB 2+12 Ports and 12 Fusions LGX CASSETTE

Optical Terminal Box (OTB) 2 Ports, 17mm diameter for uncutted fiber, 12 outputs. Capacity to fit up to 12 splice fusions, 5 SC adaptors.

Specifications

ModelFO-X08V
Nº Ports2 + 12
Diameter Ports< 17mm
Nº Fusions12F
Trays / Fusions1 x 12
Splitter(1:4) (1:8)
AdaptersNO
Dimensions (mm)225x200x65
IP ProtectionIP55
ApplicationWall

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)

This closure may be installed with PLC Splitters.

“Choose the ones you need for your installation”

Splitter Casete 1x4 SC/APC

Splitter Casete 1x8 SC/APC

This box NOT includes 1x8 or 1x4 SC/APC cassette type splitter.

Technical Specifications:

ModelInput/output portsStorage capacity (single fusion)Splice traysPLC SplitterProtectionAdaptersDimensions LxWxH (mm)
X08V

14 ports

2 ports: Each port for 1 cable with a maximun of 17mm.

12 ports: Each port for 1 cable with a maximun of 4mm.

12F (1X12 splice)1 tray for 12 splicesCapacity to fit up a 1x8 SC/APC cassette type splitterIP55

It can host 5 SC Adapters

225x200x65

Multifunctional box to work in fiber optic distributions or as termination box to provide service to users.

  • The material in this box (PC+ABS) is highly resistant to UV radiation and rainfalls, IP55 protection.
  • Indoor / outdoor application, is suitable for installation in pole and wall.
  • Its design allows easy installation of wiring and its reopening for maintenance.
  • It has 14 Ports and can host 5 SC adapters, 12 fiber fusions and a 1x8 SC/APC cassette type splitter.
  • the two entry ports allow uncut fiber.
