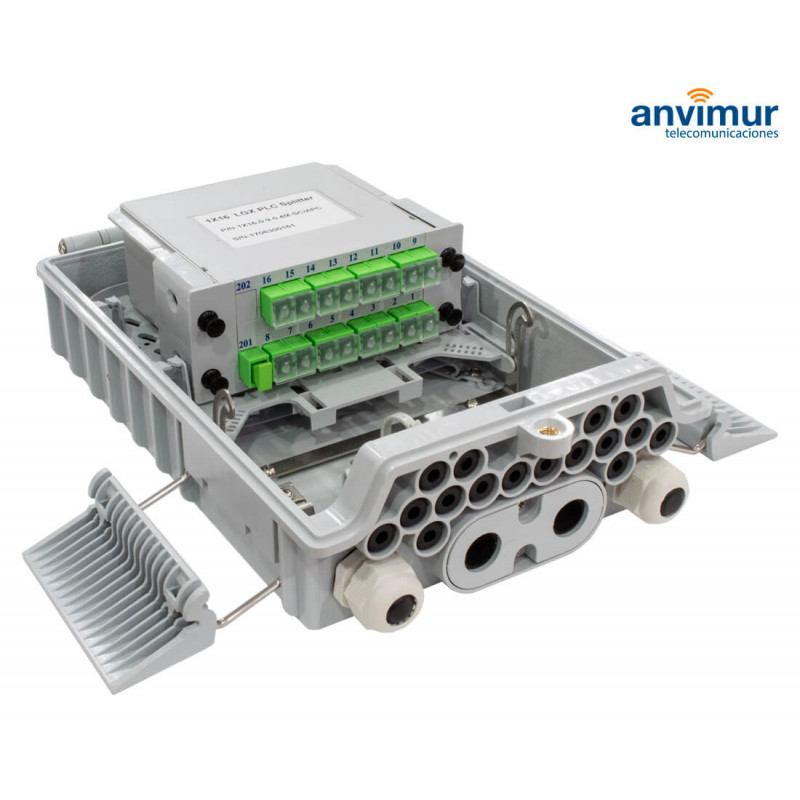

OTB 4+16 Ports and 16 Fusions LGX CASSETTE

Optical Terminal Box (OTB) 2 Ports with 16 mm diameter, 2 ports with 16 mm diameter, 16 outputs with capacity for up to two 1:8 cassette splitters or one 1:16 cassette splitters.

Specification

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)

This closure may be installed with PLC Splitters.

“Choose the ones you need for your installation”

Splitter Cassette 1:8 SC/APC

Splitter cassette 1:16 SC/APC

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Characteristics:

• Total enclosed structure.
• Material: PC+ABS, wet-proof, dust-proof, anti-aging, protection level up to IP65.
• Indoor / outdoor application, is suitable for installation in pole and wall.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
• Cable, pigtails, patchcords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• It has 20 Ports and can host 16 adaptors in cassette type installation and up to two 1x8 cassette splitter or one 1x16 cassette splitter.


Environmental requirement

• Working temperature: -40ºC~+60ºC
• Relative humidity: ≤ 85% (+30ºC)
• Atmospheric pressure: 70KPa~106 KPa

Main technical datasheet

• Insertion loss: ≤ 0.2dB
• UPC return loss: ≥ 50dB
• APC return loss: ≥ 60dB
• Life of insertion and extraction: > 1000 times

Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2x10⁴MΩ /500V
The withstand voltage between grounding device and cabinet is no less than 3000V (DC) /min, no puncture, no flashover; U ≥ 3000V.
