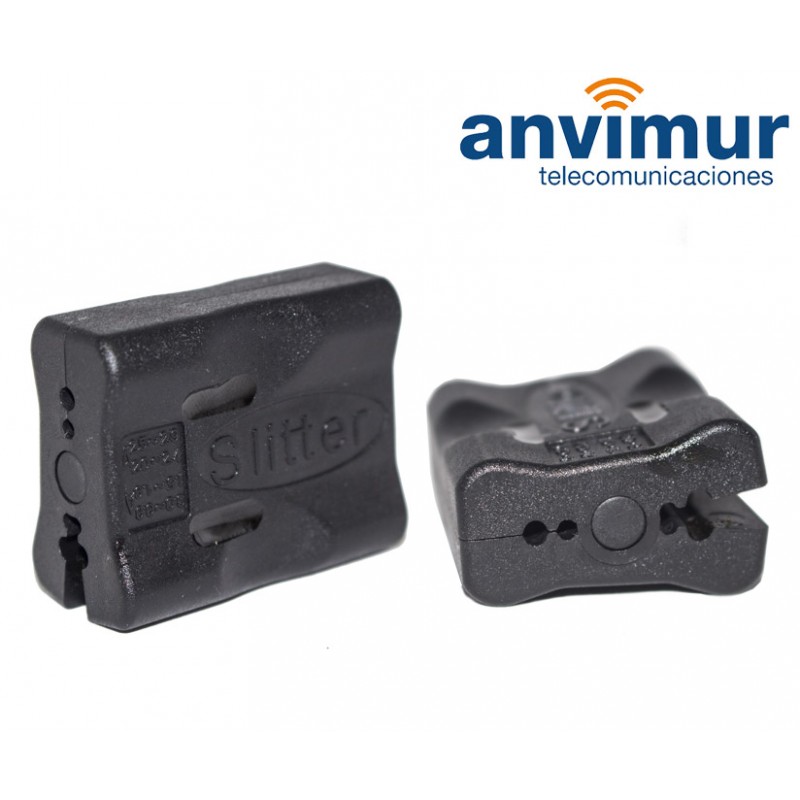

Mid-Span Longitudinal buffer tube Slitter Tool

Reference: FO-SLTOCT

Condition: New product

Slitter Tool for double longitudinal cut tubes and remove quickly, safely and accurately, polyethylene covers.

Cable sizes from φ1.5~1.9, φ2.0~2.4, φ2.5~2.9 y φ3.0~3.3 mm

More details

Send to a friend
Send to a friend

Mid-Span Longitudinal buffer tube Slitter Tool
Slitter Tool for double longitudinal cut tubes and remove quickly, safely and accurately, polyethylene covers.
Cable sizes from φ1.5~1.9, φ2.0~2.4, φ2.5~2.9 y φ3.0~3.3 mm
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Data sheet

Accessories	Fiber Optic Tools

More info

General Description:
Buffer Tube Slitter is especially designed for stripping the outer jacket of a patchcord or a pigtail. It can slit loose tubes of ￠1.5mm~3.3mm longitudinally. It has 4 rails on the body. Each rail is for the tube of specified diameter so that the stripping precision can be improved.

Features:

Compact design, light weight, portable
4 guide rails for tubes with different diameters
Composed with high quality metal blades, more durable
High precision rail design, ensure the integrality of the fiber

Specifications:

Dimensión (mm)	52 * 38 * 22
Peso (kg)	0.03
Cuerpo material	Acero inoxidable
Ciclos de desmontaje	2 * 1000 ciclos
Diámetro del riel guía (mm)	φ1.5 ~ 1.9	φ2.0 ~ 2.4	φ2.5 ~ 2.9	φ3.0 ~ 3.3
