Horizontal Enclosure for 6 Ports and 8 Fusions | FD33

FO-FD33

New product

Horizontal Enclosure. Distribution Box (DB). Ports: 6 | Diameter: <18mm | Fusions: 8 | Trays/Fusions: 1x8 | Splitter PLC: 1:4/8 | Adapters: 2 SC SX | Dimensions: 225x107x48mm | Protection: IP67 | Application: Wall.



Reference: FO-FD33

More details

10,50 €

Add to wishlist

Data sheet

Splice closureHorizontal Fiber Optic Splice Closure

More info

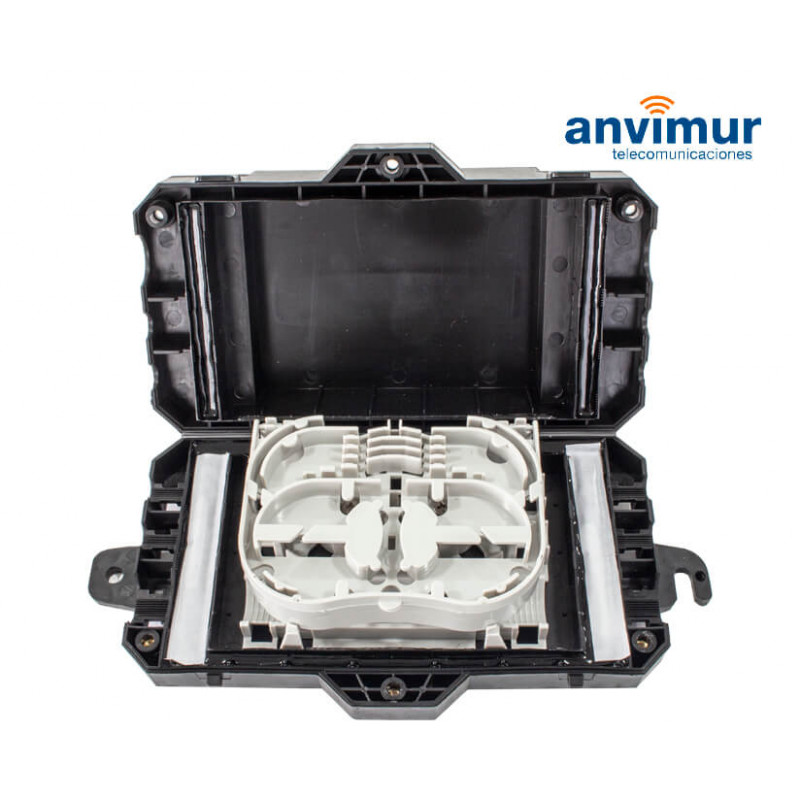

Horizontal Enclosure for 6 Ports and 8 Fusions

Horizontal Enclosure. Distribution Box (DB). It has 6 input/output ports Ø<18mm. For 8 splice fusions (1 tray of 8 fusions and install PLC Splitter). Dimensions 225x107x48mm. Possibility to install on Wall. Resistant material, Anti-UV protection against and IP67 protection.

Specifications

ModelFO-FD33
Nº Ports6
Diameter Ports< 18 mm
Nº Fusions8
Trays / Fusions1x8
Splitter PLC1:4/8
Adapters2 SC SX
Dimensions225x107x48mm
IP ProtectionIP67
AplicationWall

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)
