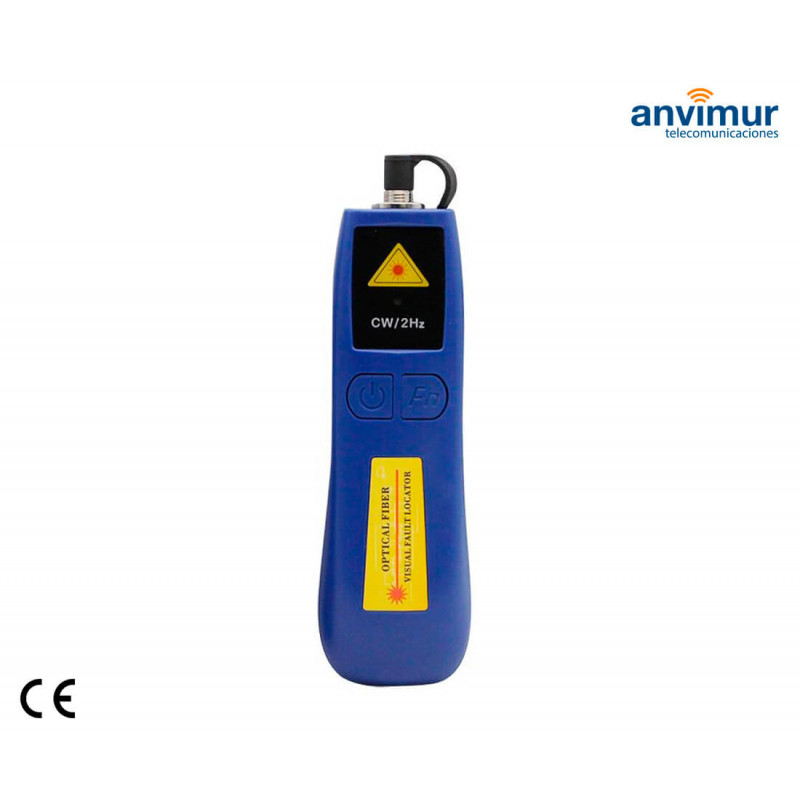

> >VLS-8 Visual Fault Locator 20mW

VLS-8 Visual Fault Locator 20mW

FO-VLS8-20

New product

The Visual Fault Locator model VLS-8 is a light source used to locate breaks, poor mechanical splices and damaged connectors in fiber optic cables.

20mW power, up to 14km.

More details

28,60 € VAT excl.

Add to wishlist

Data sheet

GPONMeasuring and Testing

More info

VLS-8 Visual Fault Locator 20mW

VLS-8 Series Mini Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator. A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point. VLS-8 Series Mini Visual Laser Source is suitable for both single mode and multimode fibers. The performance of the visual laser source will act a little different on different fiber coat and color.

Features

  • Totally comply with the human engineering design. Small, portable and durable
  • Standard multi-adaptor can be applied to connect with almost any adaptor type. Also provides interchangeable fiber adaptors of several common types
  • Higher output laser power, max 14km detecting range
  • Integrated with continuous wave and 2Hz modulated wave output function

Specification

CONNECTOR2.5 mm universal connector, for ST / SC / FC optical connectors
OUTPUT POWER15mW
LASER DIODE650 nm high-power, extra long-life
MAX DISTANCEUp to 14 km
OPERATION MODESContinuous or modulated (2 Hz) modes
BATTERY LIFE10 hours (2x1.5 V AAA batteries)

① It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
② The output power is figured out by multi-mode optical fiber at 23℃±3℃.
③ Detecting range will be different with different fibers.
④ Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.

Technical Specification

ModelFF-VFL-B5FF-VFL-B10FF-VFL-B20 (VLS8-20)FF-VFL-B30
Laser Launcher LevelCLASS IIIACLASS IIIBCLASS IIIBCLASS IIIB
Output Power≥5mW≥10mW≥20mW≥30mW
Detecting RangeAbout 8kmAbout 12KmAbout 14kmAbout 15km
CW Mode Battery LifeAbout 13 hoursAbout 6 hoursAbout 5 hoursAbout 3 hours
2Hz Mode Battery LifeAbout 23 hoursAbout 12 hoursAbout 10 hoursAbout 6 hours
Laser Launcher TypeLD
Optical Connectoruniversal 2.5mm adapter (FC/SC/ST)
Output Wavelength 650nm±10nm
Modulation FrequencyCW / 2Hz
Power 2*AAA dry batteries
Working Temperature -10℃~+50℃; <90%RH
Storage Temperature-20℃~+70℃; <90%RH
Dimension & WeightL120mm×W33mm×H30mm / about 67.8g
Standard Accessories:
2*AAA batteries, carrying bag.
Optional Accessories (Sold Separately):
Male FC to female LC adapter for LC connector.

Accessories

Download

Data Sheet VLS-8

Download (403.62k)
