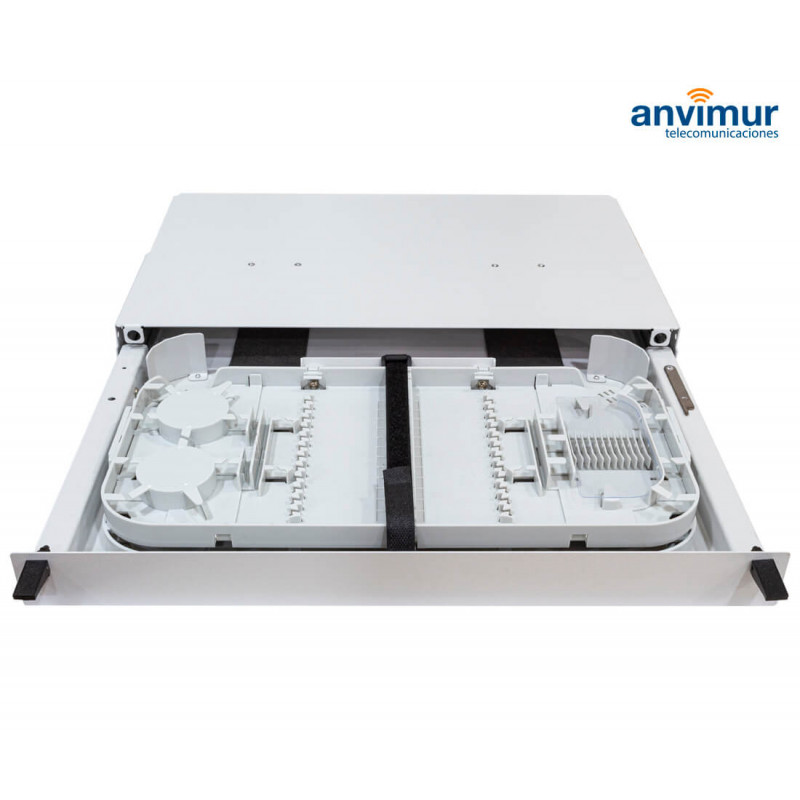

ODF 24 Ports SC SX and 24 Fusions 1U

Protect and organize your fiber optic splices and connections with the accessories included inside the distribution trays. Connect with twigs and adapters.

Sliding type fiber optic patch panel that suitable for the protective connection of loose tube optical cables or bundled pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitter and jumpers, jumpers and jumpers. It is 1U height for 24~48 fibers connection and distribution. Its bracket support 19inch or 21inch rack mounted application.

Features

• It is made of high-quality cold roll steel & the surface is sprayed with electrostatic powder.
• The front door has a hinge, a flip-type structure with elastic door buckle locking method.
• Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high
  reliability.
• The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module,
  and adapter panel, which can be disassembled and interchanged.
• The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There
  are supporting members on the side of the tray, which can be flipped, and the fiber splicing is convenient.
• There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.
• Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation.

Specifications

* Adapters SC/APC Simplex and Pigtails not included.
