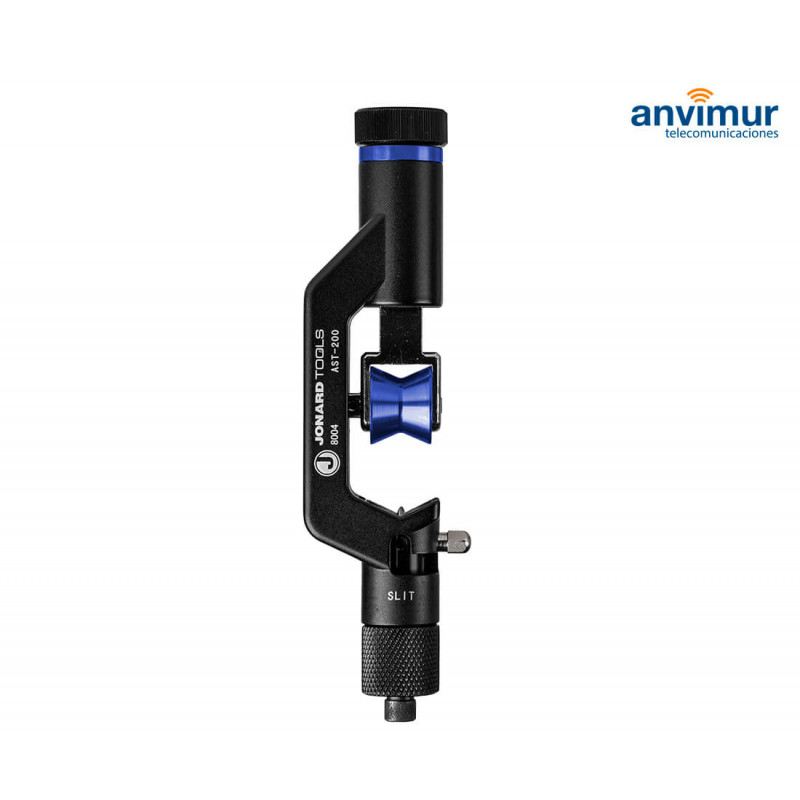

AST-200, Longitudinal and radial cutting of armoured cable Ø4-28.6mm

AST-200

New product

Longitudinal and radial cutting tool for shielded and unshielded 4 - 28.6mm cable.

AST-200

More details

122,24 €

Add to wishlist

Data sheet

AccessoriesFiber Optic Tools

More info

AST-200, Longitudinal and radial cutting of armoured cable Ø4-28.6mm | JONARD TOOLS

The Jonard Tools CableSaber™ is the ultimate tool for gaining mid-span access to armored or thick jacketed cables 4 mm-28.6 mm (0.157”-1.125”) in diameter. This mid-span cable slit and ring tool also features the following:

  • Adjustable blade depth up to 5.5 mm (0.216”).
  • Precision steel blade will cut through the toughest materials, ensuring no damage to the internal fibers.
  • Blade can be set to be longitudinal for slitting or radial for ringing.
  • For use on cables 4 mm-28.6 mm (0.157”-1.125”) in diameter.
  • Aluminum shaft provides tremendous stability while slitting or ringing, preventing spiraling from occurring.
  • Shaft housing acts as a handle, providing greater leverage while slitting for convenience while ringing.
  • Thumb screw allows blade depth to be adjusted quickly by hand.
  • Rugged anodized aluminum and steel construction for maximum durability.

Specifications

Cut TypeSlit, Ring
Cable TypeArmored, Jacket
Cable Diameter4 mm - 28.6 mm (0.157”-1.125”)
Length7.25" (18.42 cm)
Weight0.739 lb (335 g)
