MS446, Mid Span Slit & Ring Tool (8.7 mm-14.6 mm)

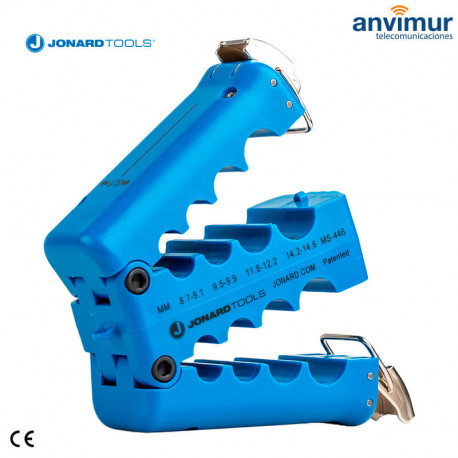

The PATENTED and award-winning MS-446 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in AFL's Heavy Duty OSP MicroCore® (LMHD-Series) cables as well as other thick-walled 8.7 to 14.6 mm diameter jackets. This mid span slit and ring tool also features the following:

  • Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 8.7 mm to 14.6 mm in diameter.
  • One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut).
  • Compact design weighing less than 8 oz with included tethering hole makes it perfect to use in tight spaces or on the go.
  • Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing.
  • This tool was specially designed for AFL's Heavy Duty OSP MicroCore® (LMHD-Series) cables and other similar style cables.
  • Replacement blade set available, part number: MS-446RB.
  • Blades last for 5,000 slits/cuts.

Groove Sizes: 8.7-9.1 mm | 9.5-9.9 mm | 11.8-12.2 mm | 14.2-14.6 mm

Specifications

Cut TypeSlit, Ring
Number of Slitting Grooves4
Number of Ringing Grooves4
Cable TypeHeavy Duty OSP MicroCore® (LMHD-Series)
Cable Diameter8.7 mm - 14.6 mm
Dimensions4" x 1.5" x 3.1" (101 mm x 38 mm x 79 mm)
Weight0.538 lb (244 g)
