HYBRID CABLE 80 meters

HYBRID CABLE 80M

New product

HYBRID CABLE 80M

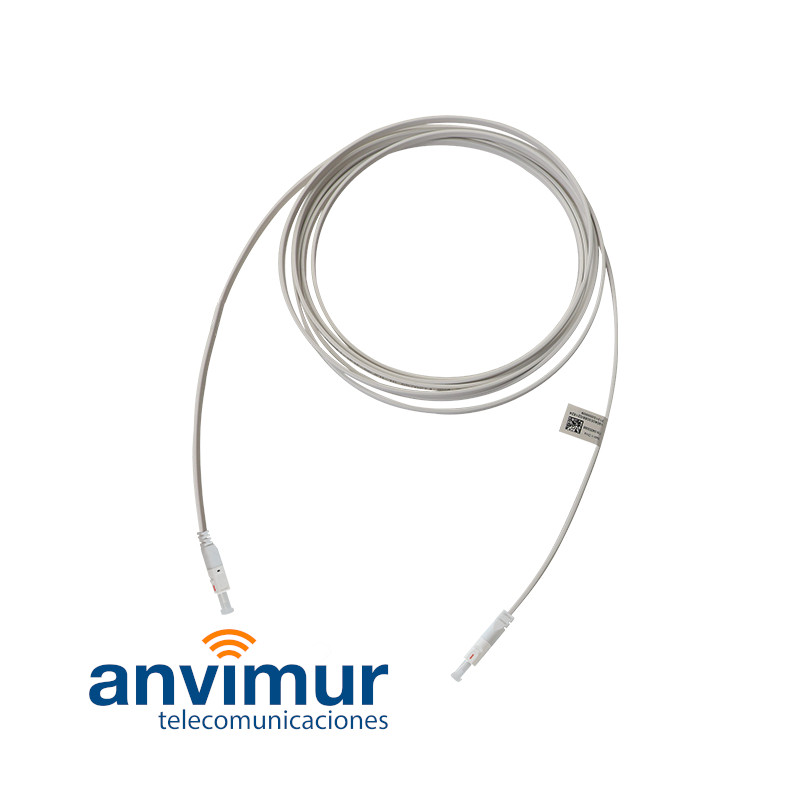

MiniFTTO POF cable(XC-XC)-80 meters, data + power supply

Hybrid Optical and Electrical Cable (PoF) from XC/UPC to XC/UPC.

Direct Power Supply for Huawei OptiXstar F600C-30-1GH Access Points.

Reference: HYBRID CABLE 80M

More details

37,90 € VAT excl.

The minimum purchase order quantity for the product is 5

Add to wishlist

Data sheet

GPONSolución FTTH

More info

MiniFTTO POF cable(XC-XC)-80 meters | Anvimur

A Power over Fiber (PoF) cable is a composite cable that integrates optical fiber and copper cables to provide both data transmission and remote electrical power supply functions for terminals with PoF input, such as the WiFi Access Point F600C-30-1GH.

These cables, patented by Huawei, enable installers to rapidly deploy the network and achieve a Plug & Play connection for access points without the need for electrical power.

You can easily extend the cable run using the XC/XC adapter to reach any corner of the business environment, with recommended maximum distances of up to 300 meters.

Specifications

EnvironmentIndoor
Length80 meters
Dimensions1.8 mm x 4.2 mm
ColorIvory white
Working temperature-10ºC to +70ºC
Rated operating voltage (DC)56 V
Rated operating current (DC)0.5 A
Fiber cores1
Fiber typeG.657A2
Tight tube diameter0.6 mm

Diagram

Esquema Instalación FTTO
