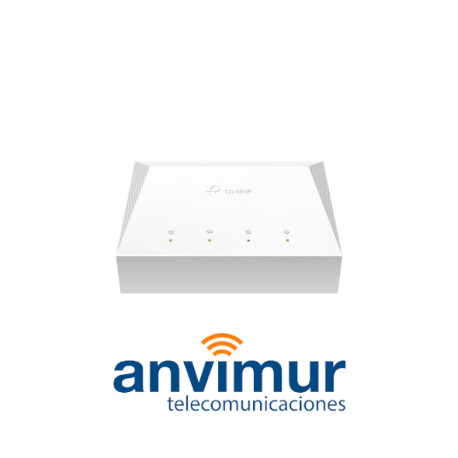

ONT TP-LINK XPON XZ000-G7
TL-XZ000-G7
New product
ONT TP-LINK XZ000-G7
The XPON Gigabit Terminal XZ000-G7 offers up to 2.488 Gbps downstream and 1.244 Gbps upstream, covering high-capacity services and reducing infrastructure costs for Internet providers.
Reference: TL-XZ000-G7
Data sheet
| GPON | ONT |
More info
ONT TP-LINK XZ000-G7 | Anvimur
The TP-Link XZ000-G7 1-Port Gigabit XPON Terminal provides up to 2.488 Gbps downstream and 1.244 Gbps upstream speeds simultaneously. It meets the high bandwidth demand of various high-capacity services. It also reduces both capital and operating expenses, protecting existing investments in Internet Service Providers' (ISPs) infrastructure.
Specifications
| Hardware | |
| Interface | 1× 10/100/1000Mbps LAN Port, 1× SC/APC PON Port |
| Power Adapter Input | 100-240V/50-60Hz |
| Power Adapter Output | 9V/0.6A |
| CPU | FA626 533MHz CPU |
| Dimensions (W * D * H) | 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm) |
| Button | Reset Button |
| General Specifications | |
| GPON | ITU G. 984 standard, Class B+ 2.488Gbps downstream/1.244Gbps upstream |
| EPON | 1000BASE-PX20+ symmetric 1.25Gbps downstream/upstream |
| Wavelength | 1490nm downstream/1310nm upstream |
| Receiving sensitivity | GPON: -27dBm; EPON: -27dBm |
| Saturated power | GPON: -8dBm; EPON: -3dBm |
| Transmitting power | GPON: 0.5~5dBm; EPON: 0~4dBm |
| Input optical power | -18dBm~0dBm |
| Output reflection loss | >15dB 47MHz~1000MHz |
| Transmitter | DFB Laser |
| Receiver | PIN-TIA |
| Distance | 0 ~ 20Km Max |
| Software | |
| Protocols | Supports IPv4 and IPv6 |
| Working Mode | Bridge |
| Features | GPON, DBA, FEC |
| Management | Local managenment, OMCI |
| VLAN | 802.1Q tag VLAN |
| VLAN Mode | Transparent/Translation/Trunk |
| Authentication | Based on SN and Password, VLAN Auto Detect |
| IGMP | IGMP v1/v2/v3 |
| Security | AES Encryption, Packet Filter based on VLAN |
| Advanced Functions | Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) Support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical Power Detection, Dying Gasp, Terminal Silent Mechanism |
| Others | |
| Certification | CE, RoHS |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -40ºC~60ºC |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | 1-Port Gigabit XPON Terminal XZ000-G7 1× Power Adapter 1× Quick Installation Guide 1× GPL Statement |
