FO-MICRO12ZTT – Micro Module Aerial Optic Cable 12 fibers

FO-MICRO12ZTT

New product

MICRO12ZTT - Micro module with 12 optical fibres and water blocking,

OFC-12 G.657A1/G.652D-FASA(W)-D-S1, Ø 7.4 mm, tensile strength 1000 Newtons

Price per meter

Referencia: FO-MICRO12ZTT

More details

fiber optic cable rolls are provided at 2000 meters length approximately.

0,49 € VAT excl.

The minimum purchase order quantity for the product is 2000

Add to wishlist

Data sheet

FTTx Single Mode Fiber Optic CableMonotube Fiber Cable

More info

MICRO12ZTT Micro Module Aerial Optic Cable with 12 optical fibers

Application

Micro module cable for aerial and duct installation

Aerial micro module optical cables with ITU-T G.657A1 and G.652D fibers. They offer low attenuation, high mechanical strength, and comply with international standards IEC 60793 and 60794. Designed for aerial and duct installations, the cables have an HDPE outer sheath. The construction includes a micro module with 12 optical fibres and water blocking yarn(s) inside, aramid yarns, a dry cable strand with water blocking yarns and water blocking tape, and an outer sheath with 2x2 FRP embedded symmetrically. They operate in a temperature range of -40°C to +70°C, ensuring functionality in extreme conditions.

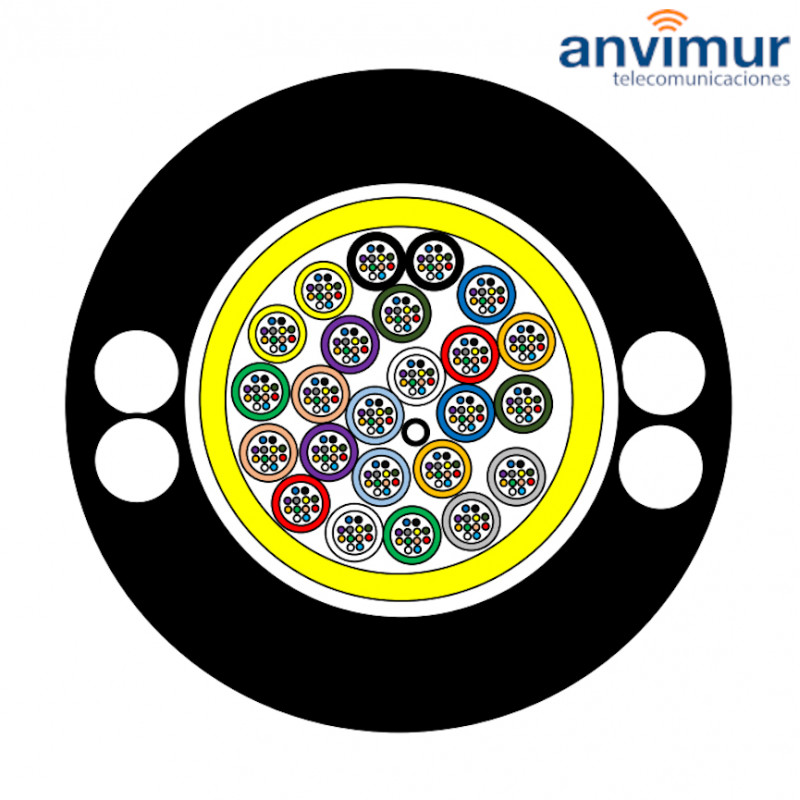

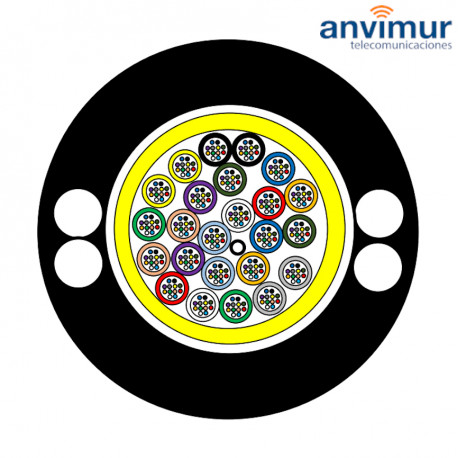

Design

  • Micro module with 12 optical fibres and water blocking yarn(s) inside
  • Aramid yarns.
  • Cable strand: Dry, with water blocking yarns and water blocking tape
  • Outer sheath: HDPE, with 2x2 FRP embedded in the sheath symmetrically
  • Max span: 80m, installation sag: 1.3%, condition: 64km/h wind, 6.35mm ice.

Specifications

No. of fibres12
DesignMicro module with 12 optical fibres
Outer diameter 7.4 mm
Cable weight (kg/km)38 kg/km

Main features

Test MethodSpecified value Acceptance criteria
Tensile strength IEC 60794-1-2 E11000 N Δɑ ≤0.1dB, No damage
Crushing IEC 60794-1-2 E32000N/10cm△α reversible
Torsion IEC 60794-1-2 E720 cycles, 1m, ±180° Δɑ≤ 0.1dB
Temperature cycling IEC 60794-1-2 F1 -40°C to +70°C △α ≤0.1dB/km
Water Penetration IEC 60794-1-2 F5 Sample length: 3 m
Water column height: 1 m, duration: 24 h 		No water leakage (FRP not included)

WARNING

THE PRICE PER METRE IS SHOWN FOR INFORMATION PURPOSES, THE FIBRE OPTIC CABLES ARE SUPPLIED IN COILS OF APPROXIMATELY 2000 METRES.
